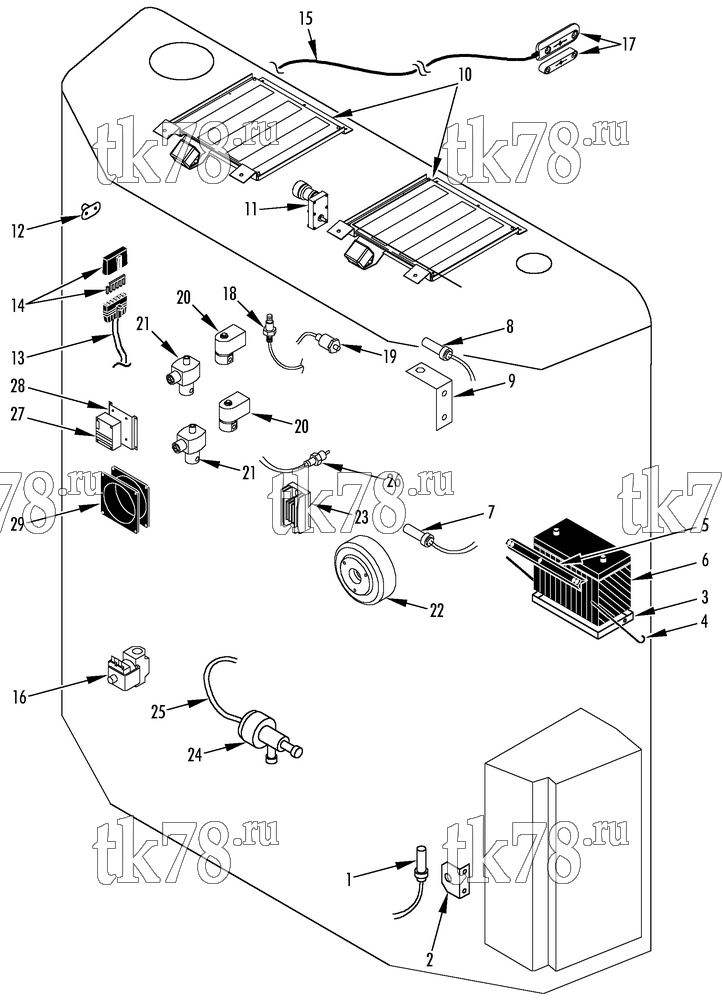

Установкa Thermo King SB-III CR схема ELECTRICAL COMPONENTS – 167C5
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4242 | SENSOR - ambient (ATS, ungraded) | 1 | |
| 2 | 92-1388 | BRACKET - sensor | 1 | |
| 55-6388 | CLAMP - sensor | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-3031 | SCREW - clamp | 1 | ||
| 3 | 91-649 | TRAY - battery | 1 | |
| 4 | 99-4482 | ROD - battery holddown | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 5 | 91-1344 | BRACKET - battery holddown | 1 | |
| 6 | 203-512 | BATTERY (12V) | 1 | |
| 304-2380 | STRAP - ground | 1 | ||
| 55-3089 | SCREW - strap | 1 | ||
| 55-8568 | LOCKWASHER (internal/external thread) | 1 | ||
| 55-8596 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2114 | NUT | 2 | ||
| 7 | 41-4243 | SENSOR - return air | 1 | |
| 8 | 41-4243 | SENSOR - temperature | 1 | |
| 41-4499 | SPLICE - wire | 2 | ||
| 92-816 | TUBE - heatshrink | 2 | ||
| 9 | 92-1389 | ANGLE - discharge sensor | 1 | |
| 10 | 40-837 | KIT - solar panel | 2 | |
| 11 | 41-4939 | MOTOR - damper (see 167B8) | 1 | |
| 12 | 41-4294 | SWITCH - thermostat (150 C, BBTS, see 167B0) | 1 | |
| 13 | 41-4238 | HARNESS - main | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 41-1789 | CONNECTOR - tower (6-pin) | 3 | ||
| 14 | 41-1787 | COVER - connector | 1 | |
| 41-1790 | LOCK - secondary (6-pin connector) | 1 | ||
| 41-4206 | BUSBAR (6 terminals) | 2 | ||
| 41-1788 | BUSBAR (3 terminals) | 2 | ||
| 15 | 41-4244 | HARNESS - door switch | 1 | |
| 16 | 81-287 | VALVE - propane (PV, see 167B9) | 1 | |
| 17 | 40-1135 | KIT - door switch | 1 | |
| 55-8421 | SCREW - switch (1.0 in) | 2 | ||
| 51-1321 | SCREW - switch (0.75 in) | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 18 | 41-4245 | SENSOR - temperature (threaded, ECOP) | 1 | |
| 19 | 41-7959 | TRANSDUCER - discharge pressure | 1 | |
| 42-1309 OEM | Трансдьюсер | 13 900 ₽ |
|
|
|
10-42-1309 | Трансдьюсер, SB-XXX/SB-III | 7 140 ₽ |
|
| 20 | 66-8728 | VALVE - solenoid (3-way, valve) | 2 | |
| 44-9589 | RECEPTACLE (2-pin, see 112D9) | 1 | ||
| 55-4523 | SCREW - valve | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 21 | 66-8730 | VALVE - solenoid (3-way, cool, 3W-S1) | 2 | |
| 44-9544 | RECEPTACLE (3-pin, see 112D9) | 1 | ||
| 22 | 41-2065 | ALTERNATOR (see 167B5) | 1 | |
| 23 | 41-2066 | REGULATOR - voltage (see 167B5) | 1 | |
| 24 | 61-955 | VALVE - expansion, electronic (EXV, see 167C1) | 1 | |
| 44-9903 | PLUG (8-pin, see 112D9) | 1 | ||
| 25 | 41-3016 | HARNESS - expansion valve | 1 | |
| 26 | 41-4246 | SENSOR - evaporator coil inlet temp (ECIT) | 1 | |
| 27 | 84-477 | BOX - ignitor (see 167B0) | 1 | |
| 55-4474 | SCREW - box | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-9754 | INSERT - threaded | 4 | ||
| 28 | 92-1392 | BASE - fenwall | 1 | |
| 55-3027 | SCREW - base | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 29 | 77-2649 | FAN - heater (see 167B0) | 1 |
