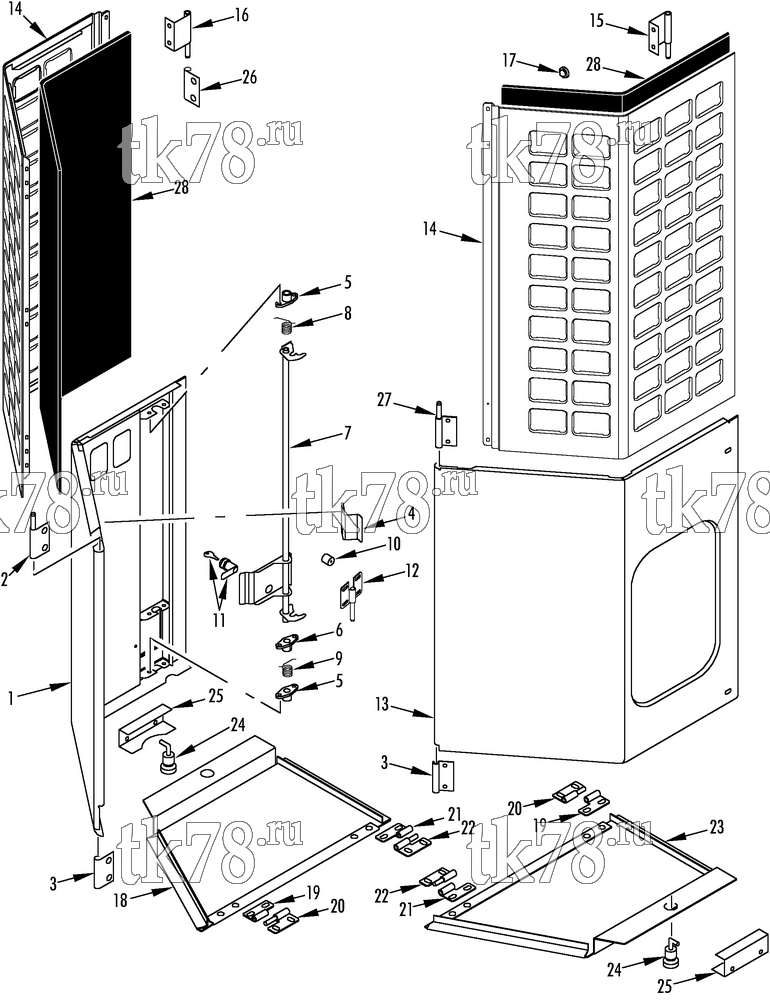

Установкa Thermo King SB-III CR схема DOOR AND GRILLES – 167C4
Обновление от: 1/25/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6077 | DOOR - bottom (curbside) | 1 | |
| 2 | 99-8304 | HINGE - door (upper, w/ pin) | 1 | |
|
10-99-8304 | Петля | 2 160 ₽ |
|
| 3 | 99-8029 | HINGE - door (lower) | 2 | |
|
10-99-8029 | Петля | 2 430 ₽ |
|
| 4 | 92-1363 | BRACKET - front latch retainer | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 5 | 99-6565 | BEARING - latch | 2 | |
|
10-99-6565 | Демпфер | 1 040 ₽ |
|
| 6 | 77-1555 | BEARING - latch (w/ split) | 1 | |
| 55-1587 | SCREW - bearing | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 6 | ||
| 7 | 92-1364 | LATCH - door | 1 | |
| 8 | 91-2495 | SPRING - latch (top) | 1 | |
| 9 | 91-2496 | SPRING - latch (bottom) | 1 | |
| 10 | 33-2048 | BUMPER - latch | 1 | |
| 55-3044 | RIVET - bumper | 1 | ||
| 11 | 92-1365 | LOCK - door | 1 | |
| 91-537 | KEY | 1 | ||
| 12 | 99-8103 | PLATE - strike | 1 | |
|
10-99-8103 | Strike Plate | 1 740 ₽ |
|
| 13 | 98-6078 | DOOR - bottom (roadside) | 1 | |
| 14 | 98-5288 | PANEL - grille | 2 | |
| 55-2977 | SCREW - panel | 4 | ||
| 15 | 99-8021 | HINGE - roadside | 1 | |
|
10-99-8021 | Петля | 1 260 ₽ |
|
| 16 | 99-8022 | HINGE - curbside | 3 | |
|
10-99-8022 | Петля | 1 260 ₽ |
|
| 55-2995 | SCREW - hinge | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 12 | ||
| 17 | 99-9428 | GROMMET - bumper | 4 | |
| 55-1726 | RIVET - bumper | 4 | ||
| 18 | 92-1368 | DOOR - access (curbside) | 1 | |
| 19 | 99-7138 | HINGE - door | 2 | |
| 20 | 99-7139 | HINGE - door (w/ pin) | 2 | |
| 21 | 99-7137 | HINGE - door | 2 | |
| 22 | 99-7140 | HINGE - door (w/ pin) | 2 | |
| 55-1587 | SCREW - hinge | 16 | ||
| 55-2086 | FLATWASHER | 32 | ||
| 55-4953 | NUT | 16 | ||
| 23 | 92-1369 | DOOR - access (roadside) | 1 | |
| 24 | 99-6599 | LATCH - door | 1 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 2 | ||
| 25 | 92-1370 | BRACKET - latch | 2 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-6526 | INSERT - threaded | 4 | ||
| 26 | 91-1149 | HINGE - grille (part of frame) | 6 | |
| 27 | 99-8104 | HINGE - door (upper, w/ pin) | 1 | |
|
10-99-8104 | Петля | 2 160 ₽ |
|
| 28 | 98-6107 | PANEL - inner | 2 | |
| 55-4829 | SCREW - panel | 20 |
