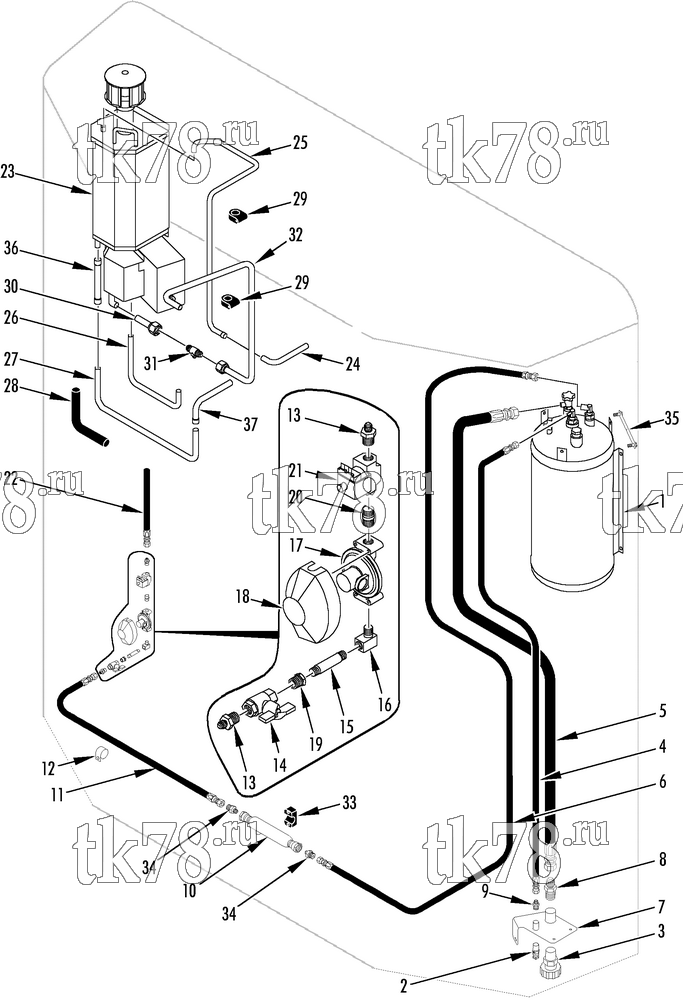

Установкa Thermo King SB-III CR схема PROPANE COMPONENTS – 167B9
Обновление от: 3/25/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | TANK - propane | 1 | |
| 2 | 11-9465 | VALVE - propane vent (w/ cap) | 1 | |
| 3 | 11-9466 | VALVE - propane fill (w/ cap) | 1 | |
| 4 | 11-9467 | HOSE (1/4 x 78 in) | 1 | |
| 5 | 11-9468 | HOSE (1/2 x 78 in) | 1 | |
| 6 | 11-9571 | HOSE (1/4 x 105 in) | 1 | |
| 7 | 92-1343 | SUPPORT - propane tank fittings | 1 | |
| 55-7650 | COUPLING | 1 | ||
| 55-3121 | SCREW - support | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 8 | 55-1685 | COUPLING - half union (fl x mpt) | 1 | |
| 9 | 55-9738 | COUPLING - half union (fl x mpt) | 1 | |
| 10 | 11-9469 | TRAP - sediment | 1 | |
| 11 | 11-9470 | HOSE (1/4 x 34 in) | 1 | |
| 12 | 91-3606 | CLAMP - tube | 7 | |
| 55-3121 | SCREW - clamp | 7 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-4953 | NUT | 7 | ||
| 13 | 55-2501 | COUPLING - half union (fl x mpt) | 2 | |
| 14 | 66-6897 | VALVE - shutoff | 1 | |
| 15 | 55-5971 | NIPPLE | 1 | |
| 16 | 55-5089 | ELBOW | 1 | |
| 17 | 81-288 | REGULATOR - gas (6 oz) | 1 | |
| 55-2750 | SCREW - regulator | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 18 | 89-225 | COVER - gas regulator | 1 | |
| 19 | 55-5023 | BUSHING | 1 | |
| 20 | 55-4284 | NIPPLE (3/8 thd, 1 in, brass) | 1 | |
| 21 | 81-287 | VALVE - solenoid, gas | 1 | |
| 22 | 11-9471 | HOSE (1/4 x 48 in) | 1 | |
| 81-324 | ADAPTER (1/4 mfl x 3/8 fpt) | 1 | ||
| 23 | NSS | HEATER - propane (see 167B0) | 1 | |
| 24 | 61-2200 | TUBE - inlet (2nd path) | 1 | |
| 25 | 61-961 | TUBE - inlet (2nd path) | 1 | |
| 26 | 61-962 | TUBE - outlet (1st path) | 1 | |
| 27 | 61-963 | TUBE - inlet (1st path) | 1 | |
| 28 | 92-1353 | INSULATION - tube | A/R | |
| 29 | 91-372 | CLAMP - tube | 3 | |
| 55-3462 | SCREW - clamp | 3 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 30 | 61-952 | TUBE - tee to elbow | 1 | |
| 31 | 55-9749 | TEE | 1 | |
| 32 | 61-953 | TUBE - valve to tee | 1 | |
| 33 | 55-6020 | CLAMP - trap | 2 | |
| 55-3344 | SCREW - clamp | 2 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 34 | 55-2101 | COUPLING - hose to trap | 2 | |
| 35 | 92-1927 | BOLTSTRIP - tank | 2 | |
| 55-3101 | RIVET - boltstrip | 2 | ||
| 55-7021 | NUT - tank | 4 | ||
| 55-2173 | FLATWASHER | 4 | ||
| 36 | 61-2199 | TUBE - superheat, out | 1 | |
| 37 | 61-960 | TUBE - inlet (2nd path) | 1 |
