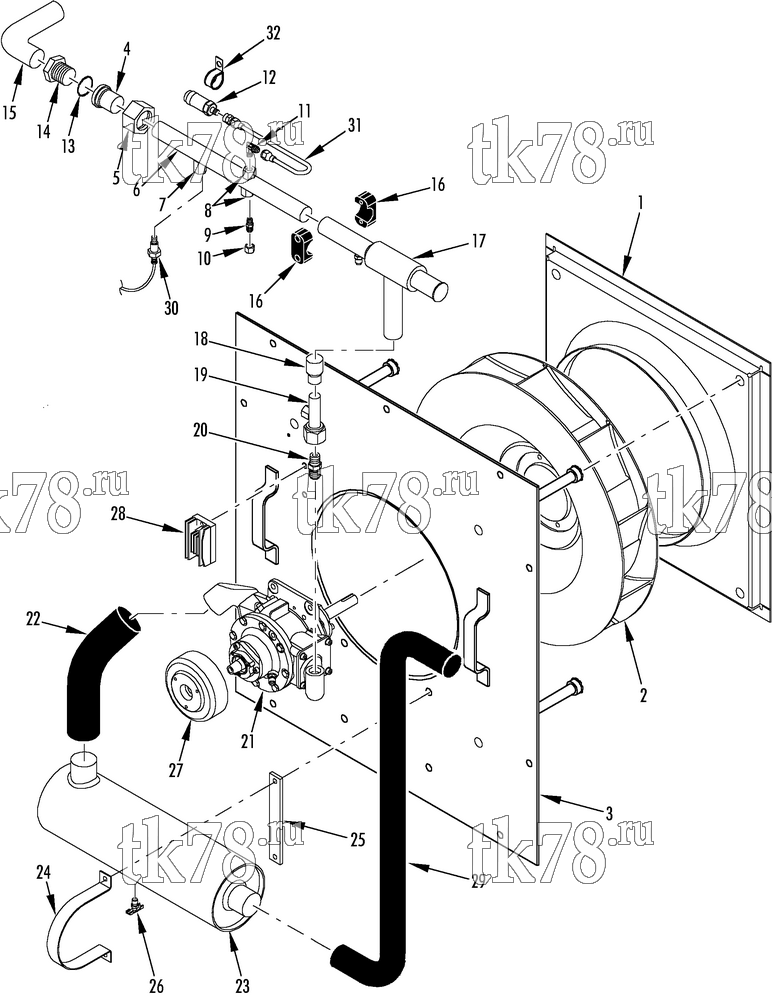

Установкa Thermo King SB-III CR схема BLOWER GROUP – 167B5
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1244 | ORIFICE - blower | 1 | |
| 55-2957 | SCREW - orifice | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 2 | 78-1245 | BLOWER | 1 | |
| 3 | 98-6067 | PANEL - bulkhead | 1 | |
| 33-1894 | GASKET - sealing | 1 | ||
| 55-7475 | SPACER - insulator | 4 | ||
| 55-6713 | INSERT (5/16-18) | 4 | ||
| 55-2683 | SCREW - panel | 10 | ||
| 55-2363 | LOCKWASHER | 10 | ||
| 55-2641 | FLATWASHER | 10 | ||
| 4 | 66-6996 | FITTING | 1 | |
| 5 | 55-5935 | NUT - shoulder | 1 | |
| 55-5939 | SLEEVE | 1 | ||
| 6 | 61-932 | TUBE - fitting to pressure valve | 1 | |
| 7 | 61-933 | FITTING - saddle | 1 | |
| 8 | 66-3570 | FITTING - saddle | 2 | |
| 11-2886 | VALVE | 1 | ||
| 9 | 11-7777 | CORE - valve (Schrader) | 1 | |
| 10 | 55-5672 | CAP - valve | 1 | |
| 11 | 55-2505 | ELBOW | 1 | |
| 12 | 41-7959 | TRANSDUCER - evaporator coil outlet pressure | 1 | |
| 42-1309 OEM | Трансдьюсер | 13 900 ₽ |
|
|
|
10-42-1309 | Трансдьюсер, SB-XXX/SB-III | 7 140 ₽ |
|
| 13 | 33-1777 | O-RING | 1 | |
| 14 | 55-7537 | ADAPTER - bulkhead | 1 | |
| 15 | 61-1046 | TUBE - evaporator to fitting | 1 | |
| 16 | 91-2473 | CLAMP - tube | 2 | |
| 55-9733 | SCREW - clamp | 2 | ||
| 17 | 66-8744 | VALVE - pressure regulator | 1 | |
| 18 | 55-1184 | BUSHING | 1 | |
| 19 | 61-935 | TUBE - motor inlet | 1 | |
| 20 | 55-9609 | COUPLING | 1 | |
| 21 | 78-1246 | MOTOR - vapor (see 167B6) | 1 | |
| 55-3048 | SCREW - motor | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 22 | 61-936 | HOSE - outlet | 1 | |
| 23 | 67-1761 | MUFFLER | 1 | |
| 24 | 92-1315 | CLAMP - muffler | 2 | |
| 25 | 92-1316 | STRAP - muffler | 2 | |
| 55-3490 | SCREW - strap | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 26 | 55-6789 | DRAIN COCK | 1 | |
| 27 | 41-2065 | ALTERNATOR | 1 | |
| 55-9462 | KEY - alternator | 1 | ||
| 55-3018 | SCREW - alternator | 1 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-9734 | WASHER - special | 1 | ||
| 55-5925 | SCREW - alternator (socket head) | 3 | ||
| 28 | 41-2066 | REGULATOR - voltage | 1 | |
| 55-2979 | SCREW - regulator | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 29 | 61-937 | HOSE - muffler outlet | 1 | |
| 30 | 41-4245 | SENSOR - evaporator pressure (ECOT) | 1 | |
| 55-381 | FLATWASHER | 1 | ||
| 31 | 61-934 | TUBE - transducer to elbow | 1 | |
| 55-1253 | COUPLING | 1 | ||
| 32 | 55-3644 | CLAMP - transducer | 1 |
