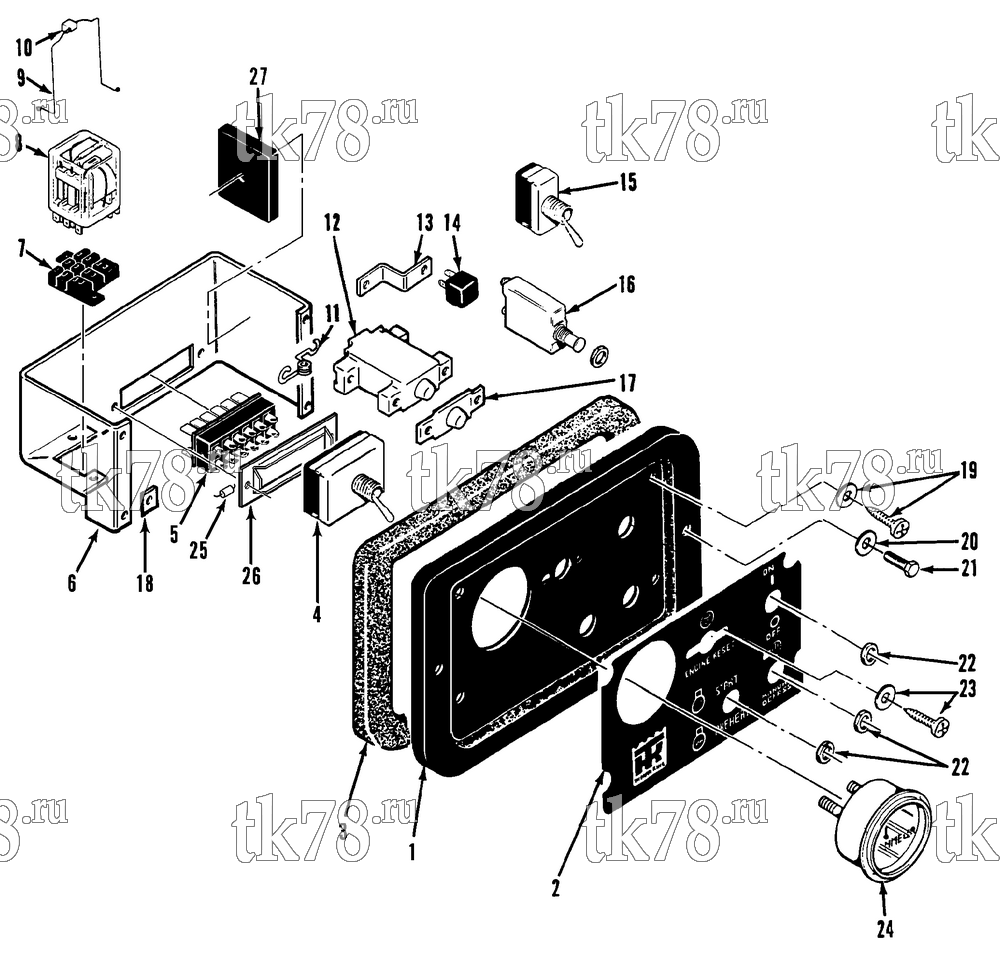

Установкa Thermo King SB-III 50 TC Tesco w/se 2.2 Engine схема SWITCH PANEL ASSEMBLY – 85E9
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1379 | PANEL - switch | 1 | ||
| 1 | 91-787 | PANEL | 1 | |
| 2 | 91-788 | NAMEPLATE - panel | 1 | |
| 3 | 33-1839 | GASKET | 1 | |
| 4 | 44-4784 | SWITCH - preheat/start | 1 | |
| 5 | 44-7524 | PLUG - connector (14-pin) | 1 | |
| 55-3588 | RIVET - plug | 2 | ||
| 55-103 | SCREW - bracket | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 6 | 99-9156 | BRACKET - panel | 1 | |
| 7 | 44-3184 | SOCKET - relay | 1 | |
| 55-2648 | RIVET - socket | 2 | ||
| 55-2810 | FLATWASHER | 2 | ||
| 8 | 44-3186 | RELAY (12VDC) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 9 | 99-2027 | SPRING - holddown | 1 | |
| 10 | 55-2771 | CLIP - spring | 1 | |
| 11 | 44-3850 | LIMITER - current | 1 | |
| 12 | 40-1082 | SWITCH - high temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 40-1082 | SWITCH | 1 | ||
|
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 13 | 44-3182 | JUMPER | 1 | |
| 14 | 44-4487 | BREAKER - circuit | 1 | |
|
10-44-4487 | Предохранитель 30A, KD/MD/RD/TD-I / SB-I/II/III | 1 960 ₽ |
|
| 15 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 44-4875 | JUMPER | 1 | ||
| 16 | 44-1164 | SWITCH - manual defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 17 | 44-2119 | SEAL - pushbutton | 1 | |
| 18 | 55-1683 | NUT - speed | 4 | |
| 19 | 55-3025 | SCREW - bracket | 4 | |
| 55-2964 | LOCKWASHER | 4 | ||
| 20 | 55-3028 | WASHER - sealing | 2 | |
| 21 | 55-2977 | SCREW - panel | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4966 | NUT - captive | 2 | ||
| 22 | 55-5746 | WASHER - sealing (switches) | 3 | |
| 23 | 55-3022 | SCREW - switch | 2 | |
| 55-2022 | LOCKWASHER | 2 | ||
| 24 | 44-3258 | AMMETER | 1 | |
| 44-3258 OEM | Амперметр, KD/MD/RD/TD-II / SB-II/III | 2 400 ₽ |
|
|
| 25 | 44-5763 | DIODE | 2 | |
| 26 | 99-5316 | BRACKET - plug | 1 | |
| 27 | 44-6697 | FLASHER | 1 | |
| 55-3000 | SCREW - flasher | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 |
