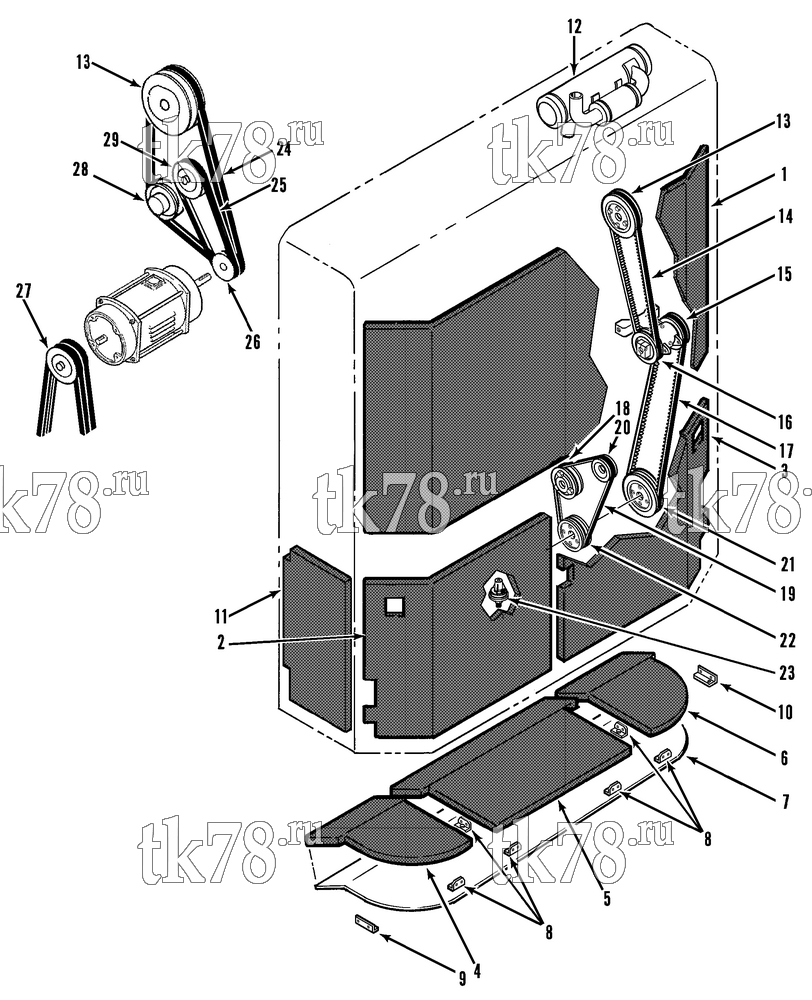

Установкa Thermo King SB-III 50 TC Tesco w/se 2.2 Engine схема SOUND INSULATION GROUP – 85E10
Обновление от: 1/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4067 | SHEET - insulation (top door) | 1 | |
| 2 | 91-4068 | SHEET - insulation (right door, curbside) | 1 | |
| 3 | 91-4069 | SHEET - insulation (left door, roadside) | 1 | |
| 4 | 91-4070 | SHEET - insulation (bottom right, curbside) | 1 | |
| 5 | 91-4071 | SHEET - insulation (bottom center) | 1 | |
| 6 | 91-4072 | SHEET - insulation (bottom left, roadside) | 1 | |
| 7 | 91-783 | PANEL - bottom | 1 | |
| 55-2963 | SCREW - panel | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 8 | 91-1619 | ANGLE - panel (bottom) | 6 | |
| 9 | 91-1620 | ANGLE (bottom, right) | 1 | |
| 10 | 91-1621 | ANGLE (bottom, left) | 1 | |
| 55-3101 | RIVET - angles & brackets | 16 | ||
| 11 | 91-4073 | SHEET - insulation (curbside panel) | 1 | |
| 12 | 12-519 | MUFFLER (w/ silencer) | 1 | |
| 13 | 77-1530 | PULLEY - fan (30s) | 1 | |
| 77-1842 | PULLEY - fan (50s) | 1 | ||
| 14 | 78-637 | BELT - idler to fan (30s) | 1 | |
| 15 | 77-1836 | PULLEY - idler (fan, 5.0 od) | 1 | |
| 16 | 77-1467 | PULLEY - idler (engine, 6.3 od) | 1 | |
| 17 | 78-629 | BELT - engine to idler | 1 | |
| 10-78-629 | Ремень двигатель - промвал, SB/SB-II/SB-III | 7 200 ₽ |
|
|
| PP-78-629 | Ремень двигатель - промвал, SB/SB-II/SB-III | 3 810 ₽ |
|
|
| 18 | 77-1345 | PULLEY - water pump | 1 | |
| 19 | 78-887 | BELT - alternator | 1 | |
| 20 | 77-762 | PULLEY - alternator | 1 | |
| 21 | 77-2396 | PULLEY - engine (fan drive) | 1 | |
| 22 | 77-2058 | PULLEY - alternator drive | 1 | |
| 23 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
| PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
|
| 24 | 78-868 | BELT - fan drive (50s) | 1 | |
| 25 | 78-909 | BELT - alternator (50s, 4.82 dia, use w/ pulley 77-1598) | 1 | |
| 78-906 | BELT - alternator (50s, 3.70 dia, use w/ pulley 77-2166) | 1 | ||
| 26 | 77-1599 | PULLEY - motor (50s) | 1 | |
| 27 | 77-2099 | PULLEY - motor (50s) | 1 | |
| 28 | 77-1808 | PULLEY - idler (50s) | 1 | |
| 29 | 77-1598 | PULLEY - alternator (50s, 4.82 dia, use w/ belt 78-869) | 1 | |
| 77-2166 | PULLEY - alternator (50s, 3.70 dia, use w/ belt 78-909) | 1 |
