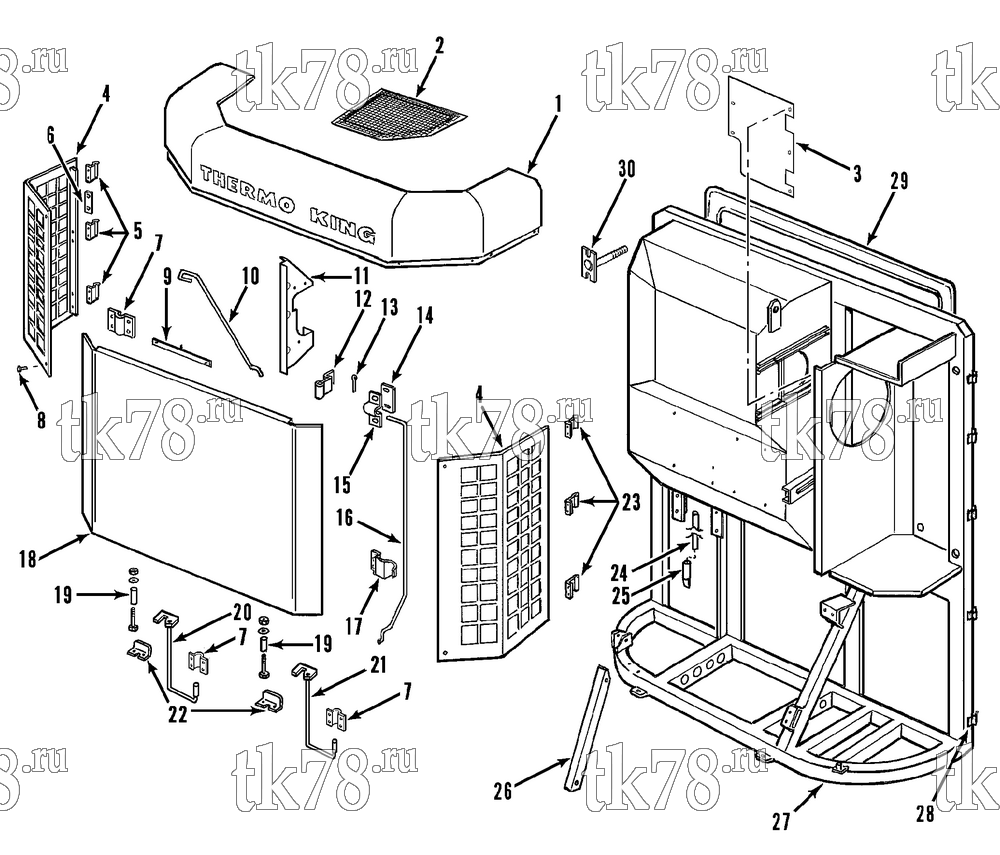

Установкa Thermo King SB-III 50 TC Tesco w/se 2.2 Engine схема CONDENSER COVERS, DOORS & GRILLE – 118G2
Обновление от: 12/2/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2747 | COVER (top) | 1 | |
|
30-98-2747 | Крышка SBII, SBIII | 38 600 ₽ |
|
| 55-3027 | SCREW (#10-32 x 5/8) | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-3098 | SCREW (1/4-20 x 3/4) | 2 | ||
| 55-4953 | NUT (1/4) | 2 | ||
| 55-2969 | SCREW (5/16-18 x 1) | 3 | ||
| 55-2904 | WASHER - special | 3 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-2959 | LOCKWASHER | 3 | ||
| 55-4954 | NUT (5/16-18) | 3 | ||
| 2 | 98-3298 | SCREEN (top) | 1 | |
| 55-2532 | CLAMP - screen | 6 | ||
| 55-5658 | SCREW - clamp | 6 | ||
| 3 | 91-739 | COVER - blower | 1 | |
| 55-3018 | SCREW - cover | 5 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-3085 | NUT - captive | 3 | ||
| 55-7489 | INSERT | 2 | ||
| 4 | 98-5288 | PANEL - grille (ss) | 2 | |
| 98-2745 | PANEL - grille (painted) | 2 | ||
| 5 | 99-8022 | HINGE (curbside) | 3 | |
|
10-99-8022 | Петля | 1 260 ₽ |
|
| 55-2995 | SCREW - hinge | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 6 | ||
| 6 | 99-8255 | NUTSTRIP | 1 | |
| 7 | 99-8097 | BRACKET - door (center) | 2 | |
| 55-2977 | SCREW - bracket | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 8 | 55-3018 | SCREW - grille | 6 | |
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 6 | ||
| 99-8499 | NUTSTRIP | 3 | ||
| 9 | 99-8119 | PLATE - cover lockdown | 1 | |
| 10 | 99-8094 | ROD - door support (center) | 1 | |
| 11 | 91-1573 | BRACKET - door support | 1 | |
| 55-4118 | NUT | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 12 | 99-8098 | BRACKET - door (center) | 2 | |
| 99-8121 | SPACER - door bracket | 2 | ||
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2945 | WASHER - special | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-1587 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4742 | WASHER - special (0.266) | 4 | ||
| 55-2945 | WASHER - special (0.281) | 2 | ||
| 13 | 55-5856 | PIN - spring | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 14 | 99-8577 | SPACER - hinge (rod) | 1 | |
| 55-1587 | SCREW - spacer | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 15 | 99-8576 | HINGE - support rod (door) | 1 | |
| 16 | 99-8593 | ROD - door support (center) | 1 | |
| 17 | 99-8578 | CLIP - support rod (door) | 1 | |
| 18 | 98-5283 | DOOR - top | 1 | |
|
30-98-5283 | Панель SBII, SBIII | 94 210 ₽ |
|
| 55-3018 | SCREW (1/4-20 x 5/8) | 5 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-4953 | NUT | 1 | ||
| 19 | 99-8096 | STRIKE - latch | 2 | |
| 55-3462 | SCREW - latch | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 20 | 99-8095 | LATCH - door (center) | 2 | |
| 99-8120 | SLEEVE - latch | 2 | ||
| 21 | 99-9185 | LATCH - door (center) | 1 | |
| 22 | 99-9280 | BRACKET - door latch | 2 | |
| 23 | 99-8021 | HINGE (roadside) | 3 | |
|
10-99-8021 | Петля | 1 260 ₽ |
|
| 55-2995 | SCREW - hinge | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 2 | ||
| 24 | 99-2230 | HOSE - drain (preformed) | 2 | |
| 25 | 66-1273 | VALVE - check | 2 | |
| 26 | 99-7993 | TUBE - power pack (30s) | 1 | |
| 91-810 | TUBE - power pack (50s) | 1 | ||
| 55-161 | SCREW - tube | 2 | ||
| 55-364 | LOCKWASHER | 2 | ||
| 55-5620 | FLATWASHER | 2 | ||
| 55-5621 | NUT | 2 | ||
| 27 | 98-3787 | FRAME - condenser | 1 | |
| 98-3234 | LINER - evaporator | 1 | ||
| 99-7947 | TUBE - drain | 2 | ||
| 28 | 91-1149 | HINGE - grille | 6 | |
| 91-1150 | HINGE - panel (curbside) | 2 | ||
| 29 | 33-2918 | GASKET - sill | 1 | |
| 30 | 99-214 | T-BOLT - unit mounting | A/R | |
| 55-3686 | NUT | A/R | ||
| 55-2038 | FLATWASHER | A/R | ||
| 55-5234 | WASHER - special | A/R |
