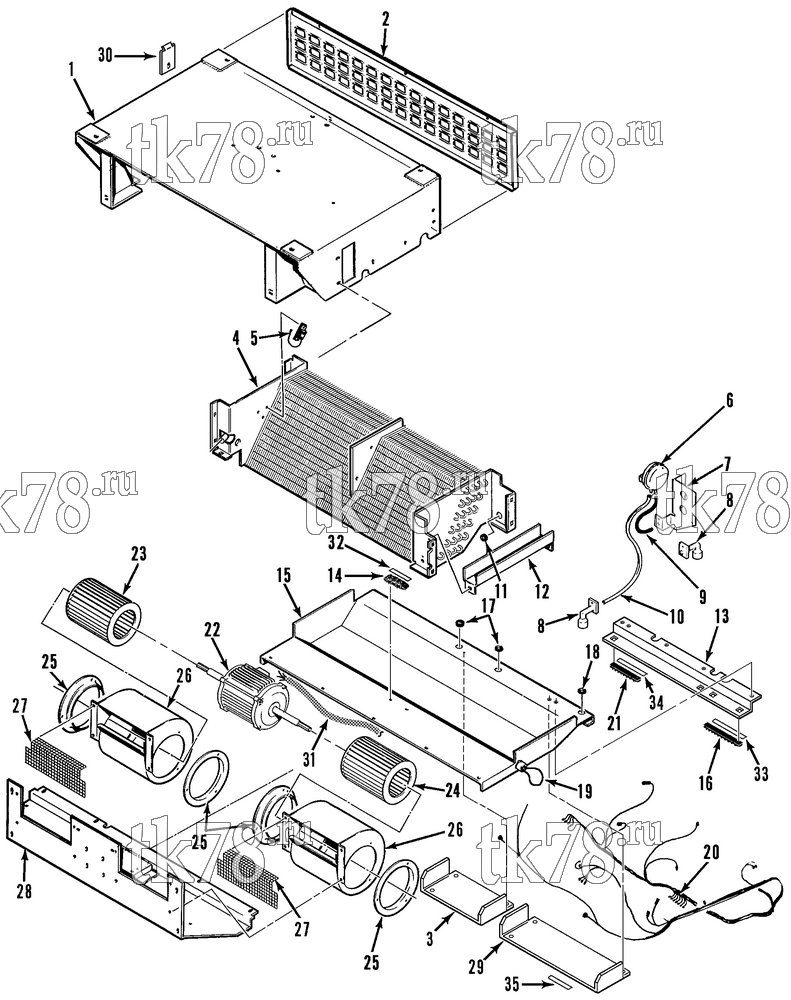

Установкa Thermo King SB-III 50 TC Tesco w/se 2.2 Engine схема EVAPORATOR STRUCTURAL/ELECTRICAL (KIT 712261) – 118E9
Обновление от: 8/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3488 | HOUSING - evaporator | 1 | |
| 2 | 98-3490 | GRILLE - evaporator | 1 | |
| 55-2977 | SCREW - grille | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4415 | NUT - captive | 6 | ||
| 3 | 91-5608 | COVER - low voltage | 1 | |
| 4 | 67-1030 | COIL - evaporator | 1 | |
| 55-2977 | SCREW - coil to housing | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 5 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5638 | SCREW - switch | 2 | ||
| 6 | 66-4487 | SWITCH - air pressure differential | 1 | |
| 7 | 91-765 | BRACKET - air switch | 1 | |
| 55-2977 | SCREW - bracket | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 8 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 9 | 99-1143 | HOSE (black) | A/R | |
| 10 | 99-1142 | HOSE (clear) | A/R | |
| 11 | 33-740 | GROMMET (7/16 id) | 2 | |
| 12 | 91-760 | CHANNEL - harness | 1 | |
| 55-2977 | SCREW - bracket | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 13 | 91-842 | BRACKET - terminal board | 1 | |
| 14 | 44-2558 | BOARD - terminal (5 terminal) | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 15 | 99-3489 | PAN - drain (defrost) | 1 | |
| 55-2977 | SCREW - pan | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 16 | 44-4449 | BOARD - terminal (7 terminal, 30 amp) | 1 | |
| 55-3684 | SCREW - board | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 17 | 33-451 | GROMMET (3/8 id) | 2 | |
| 18 | 33-572 | GROMMET (3/4 id) | 1 | |
| 19 | 44-6026 | WIRE - resistance (50 ft) | A/R | |
| 20 | 44-7877 | HARNESS - ECT | 1 | |
| 21 | 44-4186 | BOARD - terminal (10 terminal, 20 amp) | 1 | |
| 22 | 104-510 | MOTOR - evaporator | 1 | |
| 77-1304 | BEARING (0.67 id) | 1 | ||
| 77-1304 OEM | Подшипник ролика, SL | 880 ₽ |
|
|
| 77-1298 | BEARING (0.79 id) | 1 | ||
| 55-5900 | CONNECTOR - cable | 1 | ||
| 55-6286 | SCREW - motor | 4 | ||
| 55-6285 | SCREW - motor | 4 | ||
| 23 | 77-1667 | WHEEL - blower (ccw, see note) | 1 | |
| 24 | 77-1668 | WHEEL - blower (cw, see note) | 1 | |
| 25 | 77-1669 | ORIFICE - blower | 4 | |
| 55-5635 | SCREW - orifice | 12 | ||
| 26 | 99-9202 | HOUSING - blower | 2 | |
| 55-2977 | SCREW - housing | 8 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 8 | ||
| 27 | 91-770 | SCREEN | 2 | |
| 28 | 91-769 | PANEL - evaporator motor | 1 | |
| 55-2977 | SCREW - panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 29 | 91-766 | COVER - high voltage | 1 | |
| 30 | 91-768 | PLATE - excess | 1 | |
| 31 | 41-493 | CABLE - motor | A/R | |
| 32 | 91-838 | MARKSTRIP - terminal board | 1 | |
| 33 | 91-840 | MARKSTRIP | 1 | |
| 34 | 91-839 | MARKSTRIP | 1 | |
| 35 | 91-841 | MARKSTRIP | 1 |
