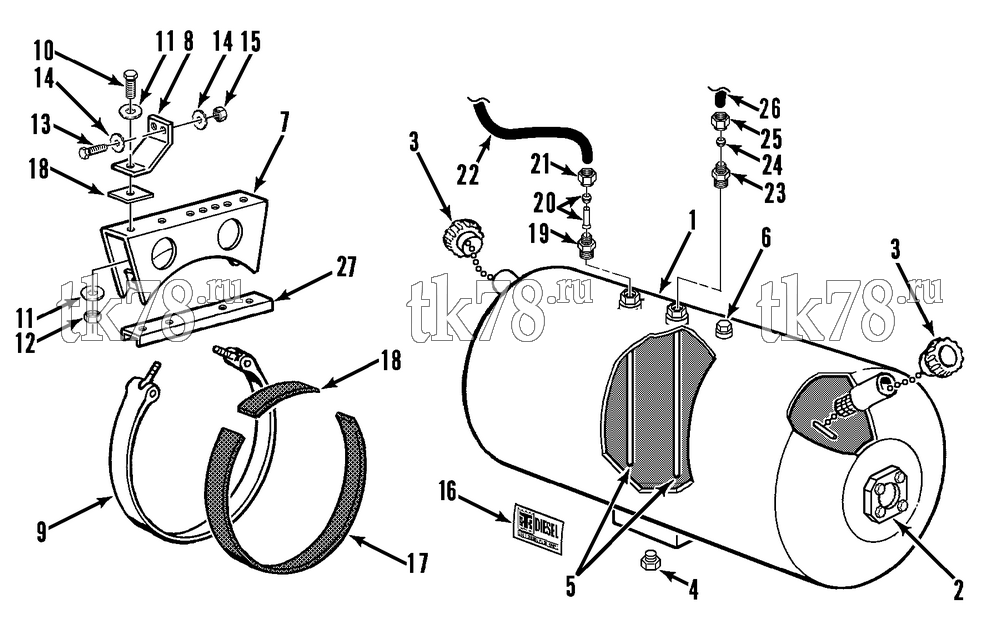

Установкa Thermo King SB-III 50 TC EMEIA w/se 2.2 Engine схема FUEL TANK (18 IN DIAMETER) – 129D1
Обновление от: 11/10/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-710 | TANK - fuel (50 gallon, steel) | 1 | |
| 2 | 11-2593 | GAUGE - fuel | 1 | |
| 11-5450 | DIAL - fuel gauge | 1 | ||
|
10-11-5450 | Датчик уровня топлива | 4 800 ₽ |
|
| 11-5725 | ADAPTER - gauge | 1 | ||
| 3 | 11-5946 | CAP - fuel tank (non-vented) | 2 | |
|
10-11-5946 | Пробка бензобака, Non Vented - Brass | 5 120 ₽ |
|
| 33-381 | GASKET - cap | 1 | ||
| 4 | 55-2313 | DRAIN | 1 | |
| 5 | 11-5331 | TUBE - fuel pickup | 2 | |
| 6 | 55-5617 | VENT | 1 | |
| 90-161 | KIT - fuel tank mounting | 1 | ||
| 7 | 98-9143 | HANGER - fuel tank | 2 | |
| 8 | 99-7832 | BRACKET - hanger | 8 | |
| 9 | 98-2316 | STRAP & TEE - assembly | 2 | |
| 10 | 55-2252 | SCREW - channel | 8 | |
| 11 | 55-5270 | FLATWASHER | 20 | |
| 12 | 55-3686 | NUT | 12 | |
| 13 | 55-1469 | SCREW - bracket | 12 | |
| 14 | 55-402 | FLATWASHER | 20 | |
| 15 | 55-5078 | NUT | 12 | |
| 16 | 99-1596 | NAMEPLATE - Diesel Fuel Only | 1 | |
| 17 | 91-7048 | STRIP - chafing | 2 | |
| 18 | 91-696 | STRIP - chafing | 2 | |
| 19 | 11-4370 | CONNECTOR - hose fitting (1/4) | 1 | |
| 20 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 21 | 11-4841 | NUT (1/4) | 1 | |
| 22 | 11-4367 | HOSE (1/4 od x 35 ft lg) | 1 | |
| 23 | 11-8982 | FITTING (3/8) | 1 | |
| 24 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 25 | 11-4941 | NUT (3/8) | 1 | |
| 26 | 11-4372 | HOSE (3/8 od x 35 ft lg) | 1 | |
| 27 | 98-4170 | BRACKET - channel | 2 |
