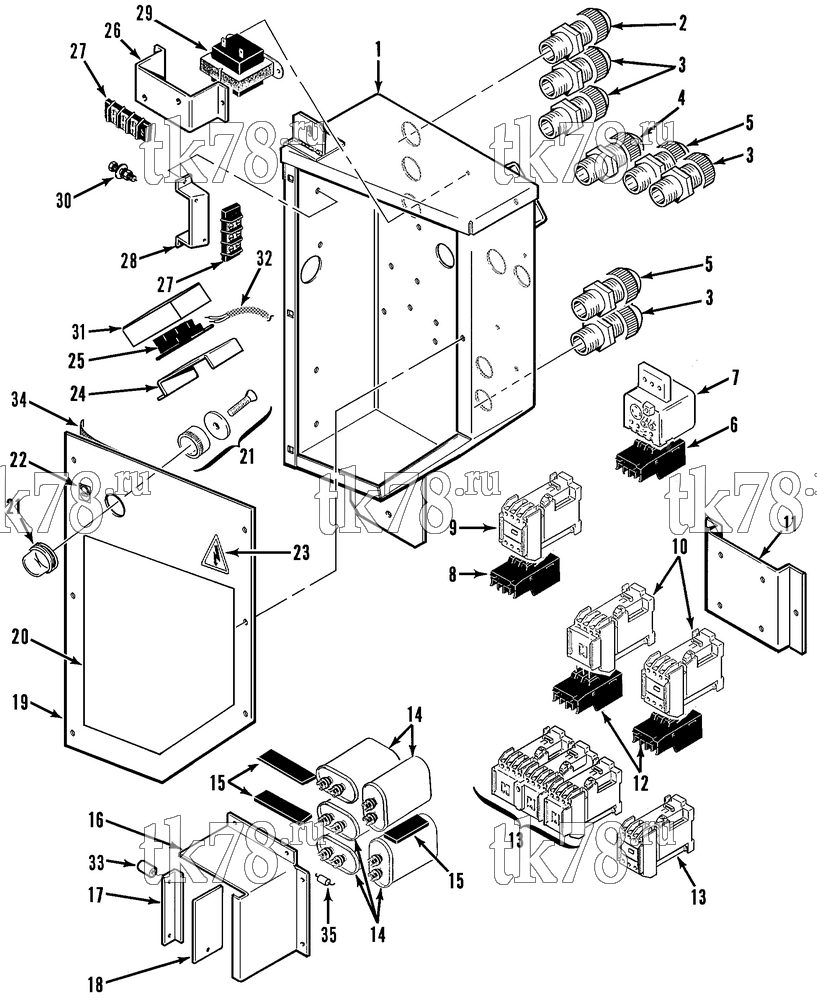

Установкa Thermo King SB-III 50 TC EMEIA w/se 2.2 Engine схема HIGH VOLTAGE BOX – 121D6
Обновление от: 6/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4571 | BOX - high voltage | 1 | |
| 55-2969 | SCREW - box | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 99-7671 | NUTSTRIP | 1 | ||
| 2 | 55-5286 | CONNECTOR | 1 | |
| 3 | 55-6141 | CONNECTOR | 4 | |
| 55-5018 | NUT | 4 | ||
| 4 | 55-5885 | CONNECTOR | 1 | |
| 5 | 55-5900 | CONNECTOR | 2 | |
| 6 | 41-6096 | ADAPTER - relay | 1 | |
| 7 | 41-5621 | RELAY - overload | 1 | |
| 55-857 | SCREW - contactor | 6 | ||
| 55-406 | FLATWASHER | 6 | ||
| 55-5077 | NUT | 6 | ||
| 8 | 41-474 | ADAPTER - contactor | 1 | |
| 9 | 41-472 | CONTACTOR - motor (15hp) | 1 | |
| 55-857 | SCREW - contactor | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-5077 | NUT | 2 | ||
| 40-606 | KIT - overload & contactor (kit incl items 10, 11, & 12) | 1 | ||
| 10 | 41-1861 | CONTACTOR - remote for motors | 2 | |
| 55-3580 | SCREW - contactor | 8 | ||
| 55-1266 | FLATWASHER | 8 | ||
| 55-3519 | NUT | 8 | ||
| 11 | 91-7848 | BRACKET - contactor | 1 | |
| 55-857 | SCREW - bracket | 1 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-5077 | NUT | 2 | ||
| 12 | 41-1989 | RELAY - overload | 2 | |
| 13 | 44-7188 | CONTACTOR - heaters & capacitors | 4 | |
| 55-857 | SCREW - contactor | 8 | ||
| 55-406 | FLATWASHER | 16 | ||
| 55-5077 | NUT | 8 | ||
| 14 | 44-7838 | CAPACITOR | 5 | |
| 15 | 99-6377 | STRIP - bumper (capacitor) | 3 | |
| 16 | 91-1568 | BRACKET - capacitor | 1 | |
| 55-770 | SCREW - bracket | 4 | ||
| 55-406 | FLATWASHER | 8 | ||
| 55-5077 | NUT | 4 | ||
| 17 | 91-822 | ANGLE - capacitor | 1 | |
| 55-3029 | SCREW - angle | 2 | ||
| 55-5761 | LOCKWASHER | 6 | ||
| 55-406 | FLATWASHER | 2 | ||
| 18 | 91-824 | PLATE - spacer | 1 | |
| 19 | 91-1569 | COVER - high voltage box | 1 | |
| 55-1049 | SCREW - cover | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 55-431 | FLATWASHER | 6 | ||
| 55-4508 | NUT - captive | 6 | ||
| 20 | 91-1570 | NAMEPLATE - relay & contactor location | 1 | |
| 21 | 92-8854 | BUTTON - reset | 1 | |
| 22 | 91-606 | NAMEPLATE - reset | 1 | |
| 23 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 24 | 91-820 | BRACKET - relay | 1 | |
| 55-770 | SCREW - bracket | 2 | ||
| 55-406 | FLATWASHER | 4 | ||
| 55-5077 | NUT | 2 | ||
| 25 | 44-7833 | RELAY - current | 2 | |
| 55-1805 | SCREW - relay | 4 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 55-3233 | LOCKWASHER | 4 | ||
| 55-3519 | NUT | 4 | ||
| 26 | 91-823 | BRACKET - terminal board | 1 | |
| 27 | 44-4341 | BOARD - terminal | 2 | |
| 55-857 | SCREW - board | 4 | ||
| 55-406 | FLATWASHER | 8 | ||
| 55-5077 | NUT | 4 | ||
| 28 | 91-827 | BRACKET - terminal board | 1 | |
| 29 | 44-7839 | TRANSFORMER | 1 | |
| 55-770 | SCREW - transformer | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-5077 | NUT | 2 | ||
| 30 | 55-3005 | SCREW - ground | 2 | |
| 55-2001 | FLATWASHER | 6 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 6 | ||
| 55-2965 | NUT | 4 | ||
| 31 | 91-449 | MODULE - phase indicator | 1 | |
| 32 | 44-9938 | HARNESS - phase indicator | 1 | |
| 55-2750 | SCREW - phase indicator | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 33 | 91-826 | STANDOFF | 2 | |
| 34 | 99-5966 | STRIP - gasket | A/R | |
| 35 | 44-3660 | RESISTOR | 3 |
