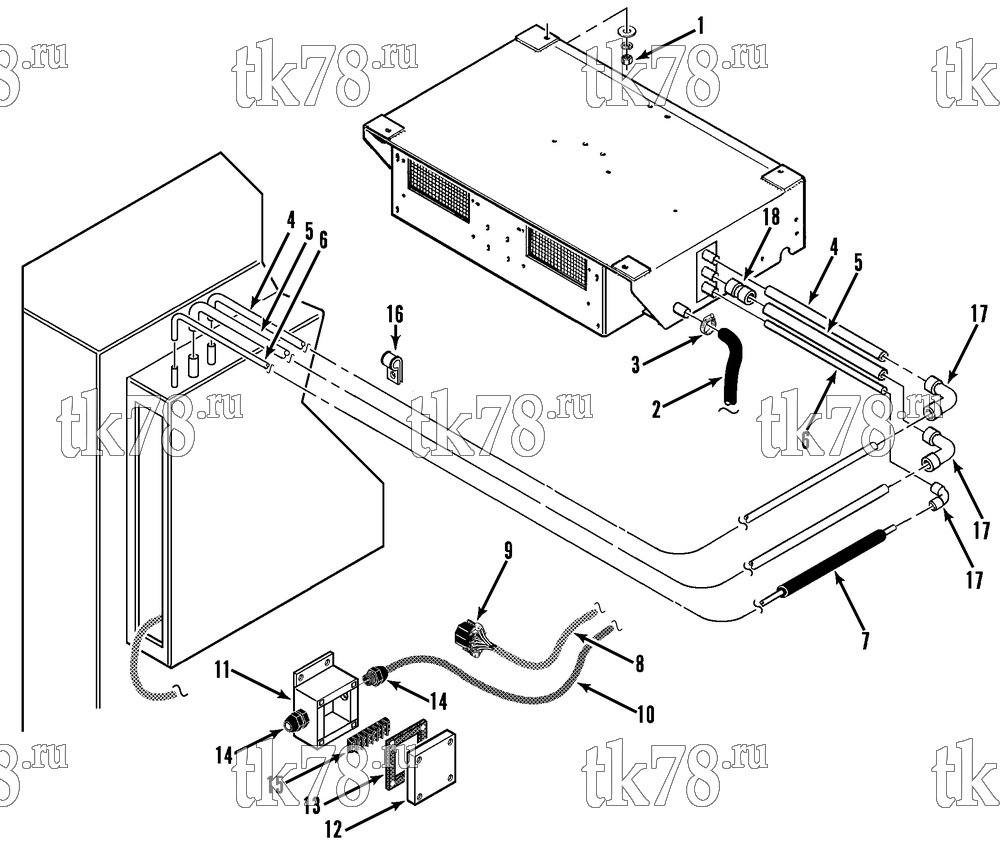

Установкa Thermo King SB-III 50 TC EMEIA w/se 2.2 Engine схема INSTALLATION GROUP (ECT) – 117F14
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-3686 | NUT - unit | 4 | |
| 55-2038 | FLATWASHER | 8 | ||
| 55-5725 | WASHER - special | 4 | ||
| 2 | 99-7103 | HOSE - defrost drain trap | 2 | |
| 99-6095 | PIPE - drain | 2 | ||
| 3 | 55-2686 | CLAMP - hose | 4 | |
| 4 | 67-1042 | TUBE - defrost (5/8 x 50 ft) | 1 | |
| 5 | 67-1041 | TUBE - suction (7/8 x 50 ft) | 1 | |
| 6 | 67-712 | TUBE - liquid (3/8 x 50 ft) | 1 | |
| 7 | 91-3541 | TUBE - insulating (5/8 id x 54 ft) | 1 | |
| 91-3542 | TUBE - insulating (7/8 id x 12 ft) | 1 | ||
| 99-6740 | TUBE - insulating (3/8 id x 12 ft) | 1 | ||
| 8 | 44-8448 | HARNESS - remote evaporator | 1 | |
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 10 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 9 | ||
| 9 | 44-7884 | CONNECTOR - shroud (22-pin) | 1 | |
| 10 | 91-1726 | CABLE - heater (48 ft) | 1 | |
| 11 | 91-5612 | BOX - junction | 1 | |
| 12 | 91-5613 | COVER - junction box | 1 | |
| 55-3027 | SCREW - cover | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 13 | 33-2507 | GASKET - cover | 1 | |
| 14 | 55-6141 | CONNECTOR (liquid tite) | 2 | |
| 15 | 44-4617 | BOARD - terminal | 1 | |
| 91-840 | MARKSTRIP | 1 | ||
| 55-5070 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT (hex) | 2 | ||
| 16 | 55-1203 | CLAMP (7/8) | A/R | |
| 55-2666 | CLAMP (1-5/16) | A/R | ||
| 55-570 | CLAMP (5/8) | A/R | ||
| 55-6033 | SCREW - clamp | A/R | ||
| 17 | 66-637 | ELBOW (7/8 solder) | A/R | |
| 55-2187 | ELBOW (5/8 solder) | A/R | ||
| 55-7385 | ELBOW (7/8 sld x 3/4 sld) | 1 | ||
| 55-2876 | ELBOW (3/8 solder) | 2 | ||
| 18 | 55-6522 | COUPLING (3/8) | 1 | |
| 55-6523 | COUPLING (5/8) | 1 | ||
| 55-3740 | COUPLING (7/8) | 1 |
