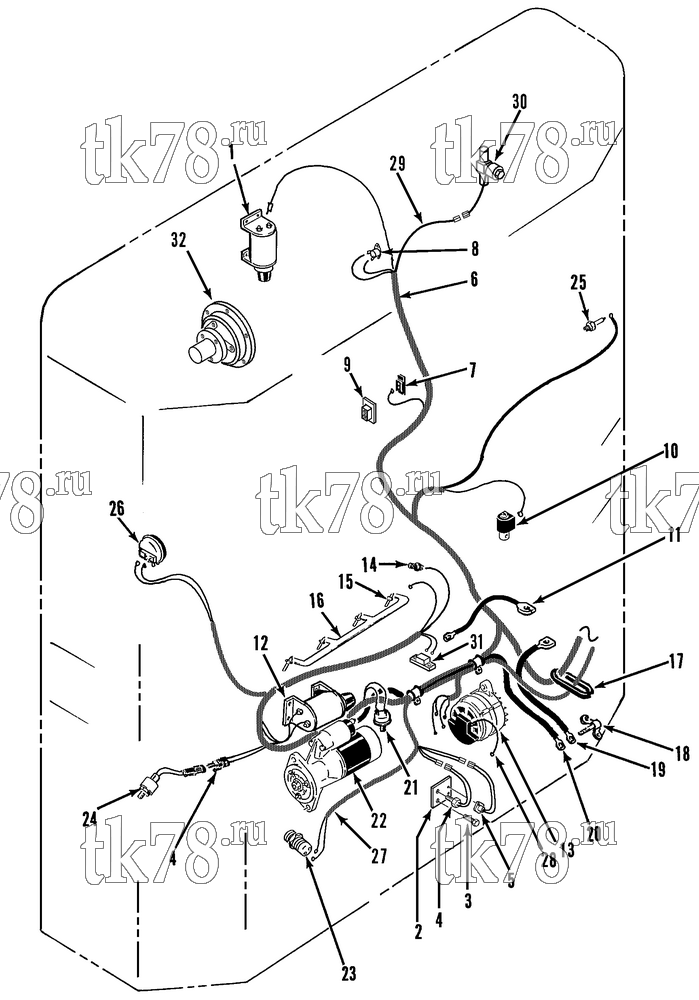

Установкa Thermo King SB-II w/di 2.2 Engine схема ELECTRICAL COMPONENTS (30s) – 73F1
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2823 | SOLENOID - defrost (see 66B11) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-2765 | DIODE | 1 | ||
| 2 | 99-8592 | PLATE - switch | 1 | |
| 3 | 55-5005 | SCREW - plate | 1 | |
| 55-2038 | FLATWASHER | 1 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 4 | 44-6019 | BOLT - thermistor | 1 | |
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 5 | 44-6018 | THERMOSTAT - block sensor | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-3134 | SCREW - thermostat | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 6 | 44-6735 | HARNESS - main | 1 | |
| 7 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-4507 | SCREW - switch | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 8 | 44-7892 | SWITCH - high temperature | 1 | |
| 9 | 44-7819 | SWITCH - defrost termination | 1 | |
| 55-4507 | SCREW - switch | 7 | ||
| 55-2201 | FLATWASHER | 7 | ||
| 10 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - solenoid (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 11 | 44-6738 | CABLE - battery (24 in, negative) | 1 | |
| 12 | 44-6544 | SOLENOID - engine | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 44-2765 | DIODE | 1 | ||
| 13 | 44-6266 | ALTERNATOR (37 amp, see 66B2) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 44-5013 | REGULATOR - voltage | 1 | ||
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 55-736 | SCREW - regulator | 3 | ||
| 55-431 | FLATWASHER | 3 | ||
| 55-5292 | NUT | 3 | ||
| 14 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 15 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 16 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 17 | 33-628 | GROMMET - control box | 1 | |
| 18 | 44-7997 | TERMINAL - battery (see 90F13) | 1 | |
| 19 | 44-6698 | CABLE - battery (19 in lg) | 1 | |
| 20 | 44-6741 | CABLE - starter | 1 | |
| 21 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 22 | 45-2325 | STARTER | 1 | |
| 23 | 44-6016 | SENSOR - rpm | 1 | |
|
10-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 8 900 ₽ |
|
| PP-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 4 310 ₽ |
|
|
| 44-7620 | BOOT - rpm sensor | 1 | ||
| 24 | 44-5508 | SWITCH - hpco (R502 before 1/96) | 1 | |
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 41-3670 | SWITCH - hpco (R502, 1/96 & after, w/ weather pack connectors) | 1 | ||
| 44-5305 | SWITCH - hpco (R12) | 1 | ||
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 25 | 44-6534 | SENSOR - radiator | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 44-6535 | HARNESS - sensor | 1 | ||
| 26 | 44-3474 | SWITCH - air pressure (see 86A5) | 1 | |
|
10-44-3474 | Переключатель воздуха | 7 150 ₽ |
|
| 27 | 44-6494 | HARNESS (Cycle Sentry) | 1 | |
| 28 | 44-7501 | HARNESS - alternator (resistance wire, before 4/89) | 1 | |
| 44-8104 | HARNESS - alternator (resistance wire, 4/89 thru 3/91) | 1 | ||
| 44-9288 | HARNESS - alternator (resistance wire, 3/91 & after) | 1 | ||
| 29 | 44-7916 | HARNESS - modulation (optional) | 1 | |
| 30 | 66-7793 | VALVE - modulation (optional) | 1 | |
| 66-7789 | VALVE - only | 1 | ||
| 44-5175 | COIL | 1 | ||
| 31 | 44-6551 | SWITCH - micro (2 speed fan transmission) | 1 | |
| 32 | 107-200 | CLUTCH - electric (evaporator blower) | 1 |
