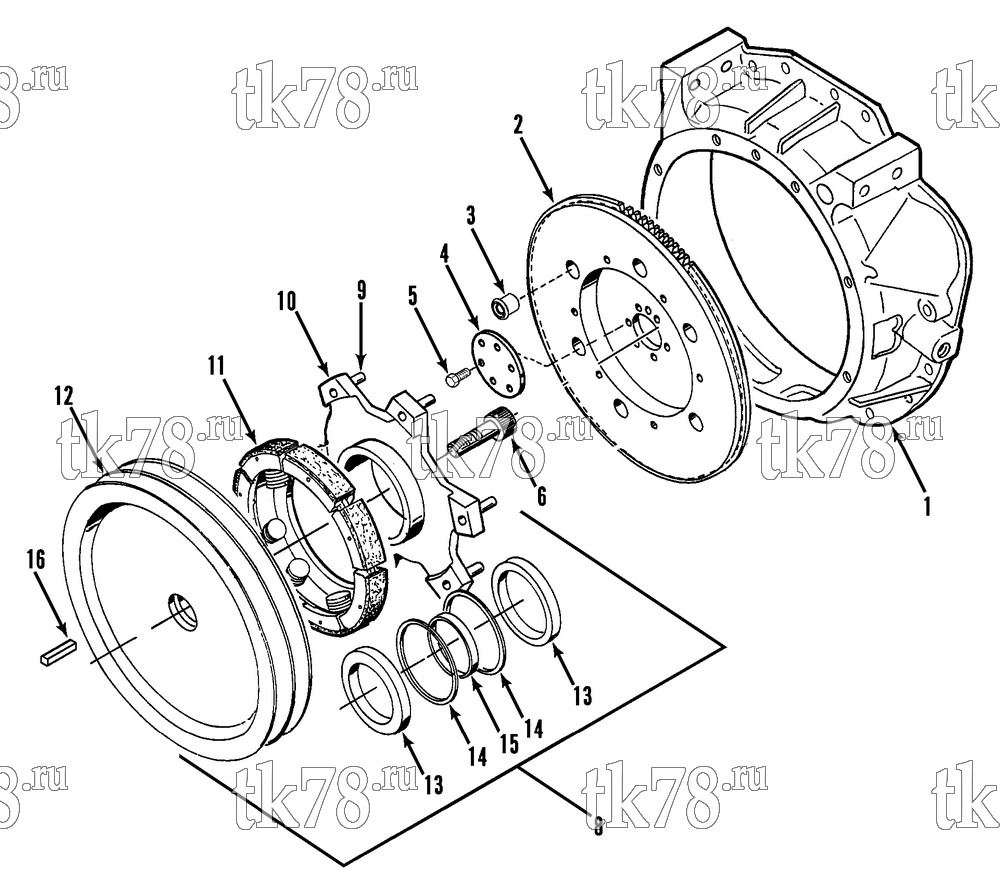

Установкa Thermo King SB-II 50 TC схема FLYWHEEL HOUSING & CLUTCH (di 2.2 50s) – 86A11
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-448 | HOUSING - flywheel | 1 | |
| 2 | 12-893 | FLYWHEEL | 1 | |
| 11-5838 | GEAR - ring | 1 | ||
|
10-11-5838 | Зубья маховика, Isuzu 2.2 D.I. | 21 200 ₽ |
|
| 70-206 | KIT - bushing (6-pin clutch, incl pins, bushings & adhesive) | 1 | ||
| 3 | 77-2760 | BUSHING - coupling (50s) | 6 | |
|
10-77-2760 | Втулка маховика | 690 ₽ |
|
| 4 | 55-5489 | WASHER - flywheel | 1 | |
| 5 | 55-4513 | BOLT - flywheel | 6 | |
| 6 | 55-4316 | SCREW - clutch | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 51-869 | PIN - dowel | |||
| Not Used | ||||
| 8 | N/A | CLUTCH (50s, see note) | 1 | |
| 51-869 | PIN - dowel | 6 | ||
| 10 | 77-740 | COUPLING - flange | 1 | |
| 11 | N/A | ROTOR | 1 | |
| N/A | FLANGE - rotor drive | 1 | ||
| 77-767 | SHOE | 8 | ||
| 77-768 | PIN | 8 | ||
| 77-769 | SPRING | 8 | ||
| 77-987 | PIN - roll | 8 | ||
| 55-2283 | SCREW (socket cap hd) | 4 | ||
| 12 | 107-341 | CLUTCH (see 125E4) | 1 | |
| US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
|
| 13 | 77-1373 | BEARING | 2 | |
| 14 | 55-2276 | RING - snap (clutch) | 2 | |
| 15 | 77-764 | SPACER | 1 | |
| 16 | 55-9024 | KEY - compressor | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
