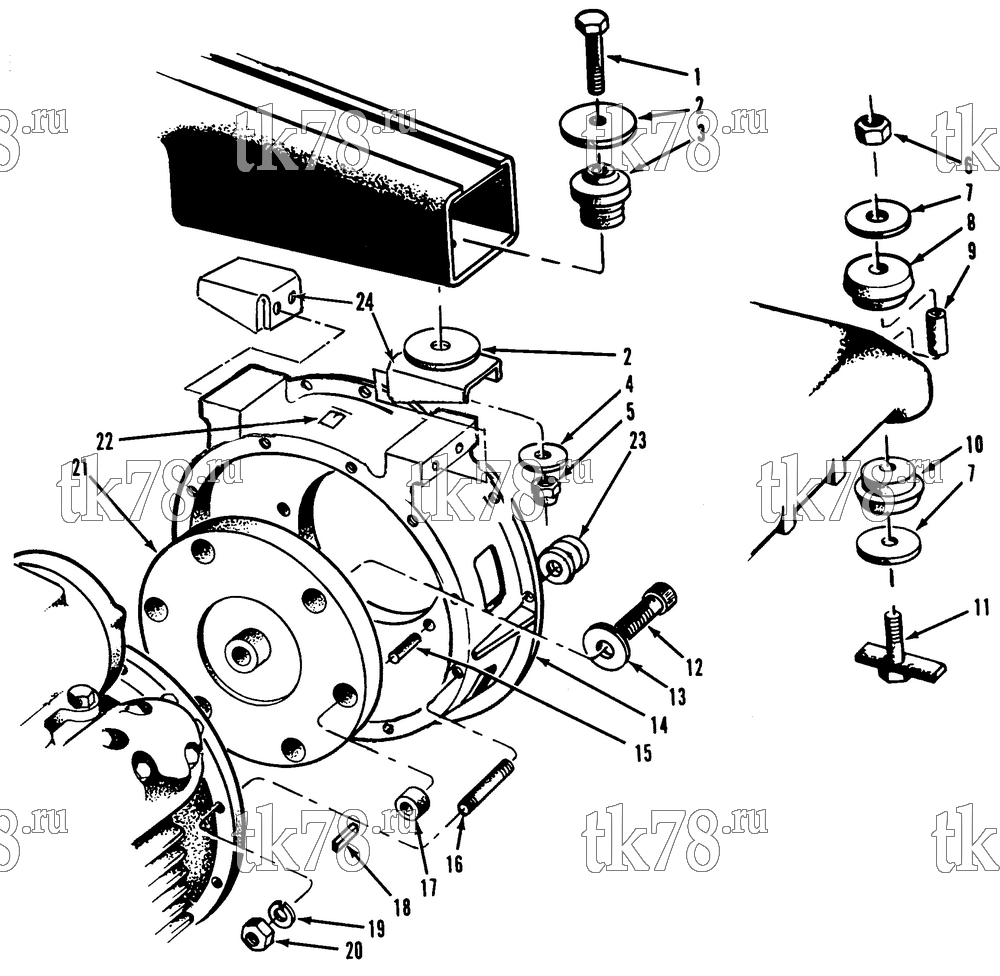

Установкa Thermo King SB-I 1000, 1200, 2000 & HPO схема ENGINE MOUNTING & COMPRESSOR COUPLING – 60C11
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-4498 | SCREW - flywheel housing | 2 | |
| 2 | 55-4497 | WASHER (0.250 thk) | 4 | |
| 3 | 99-5394 | MOUNT - vibration | 2 | |
| 4 | 55-4500 | WASHER (0.188 thk) | 2 | |
| 5 | 55-4470 | NUT | 2 | |
| 6 | 55-4963 | NUT | 2 | |
| 7 | 55-5749 | WASHER | 2 | |
| 8 | 99-1916 | MOUNT - vibration | 2 | |
|
10-99-1916 | Опора | 1 140 ₽ |
|
| 9 | 99-1642 | SPACER | 2 | |
| 10 | 99-1433 | MOUNT - vibration | 2 | |
|
10-99-1433 | Опора двигателя Isuzu 2.2 DI (D201), SB/SB-I/SB-II/SB-III | 1 530 ₽ |
|
| 11 | 99-798 | BOLT | 4 | |
| 12 | 55-4316 | SCREW - compressor | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 13 | 77-2498 | SPACER - compressor | 5 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 14 | 12-416 | HOUSING - flywheel | 1 | |
| 55-4187 | BOLT - shield | 1 | ||
| 55-5078 | NUT | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 55-4009 | PIN - dowel (1-1/2 in) | 1 | ||
| 15 | 55-1123 | PIN - dowel (2 in) | 6 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 16 | 55-4505 | STUD - compressor (2.69 lg) | 2 | |
| 55-4504 | STUD - compressor (2.19 lg) | 4 | ||
| 17 | 77-2856 | BUSHING | 6 | |
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 18 | 55-9024 | KEY - compressor | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 19 | 55-402 | FLATWASHER | 6 | |
| 20 | 55-285 | NUT | 6 | |
| 21 | 77-663 | COUPLING - compressor (incl bushing) | 1 | |
| 22 | 11-4868 | POINTER | 1 | |
| 23 | 11-4758 | SHIM (0.30 mm thk) | A/R | |
| 11-4759 | SHIM (0.35 mm thk) | A/R | ||
| 11-4760 | SHIM (0.40 mm thk) | A/R | ||
| 11-4761 | SHIM (0.45 mm thk) | A/R | ||
| 11-4762 | SHIM (0.50 mm thk) | A/R | ||
| 11-4763 | SHIM (0.55 mm thk) | A/R | ||
| 24 | 99-7632 | BRACKET - housing | 2 | |
| 55-2252 | SCREW - bracket | 4 | ||
| 55-365 | LOCKWASHER | 4 |
