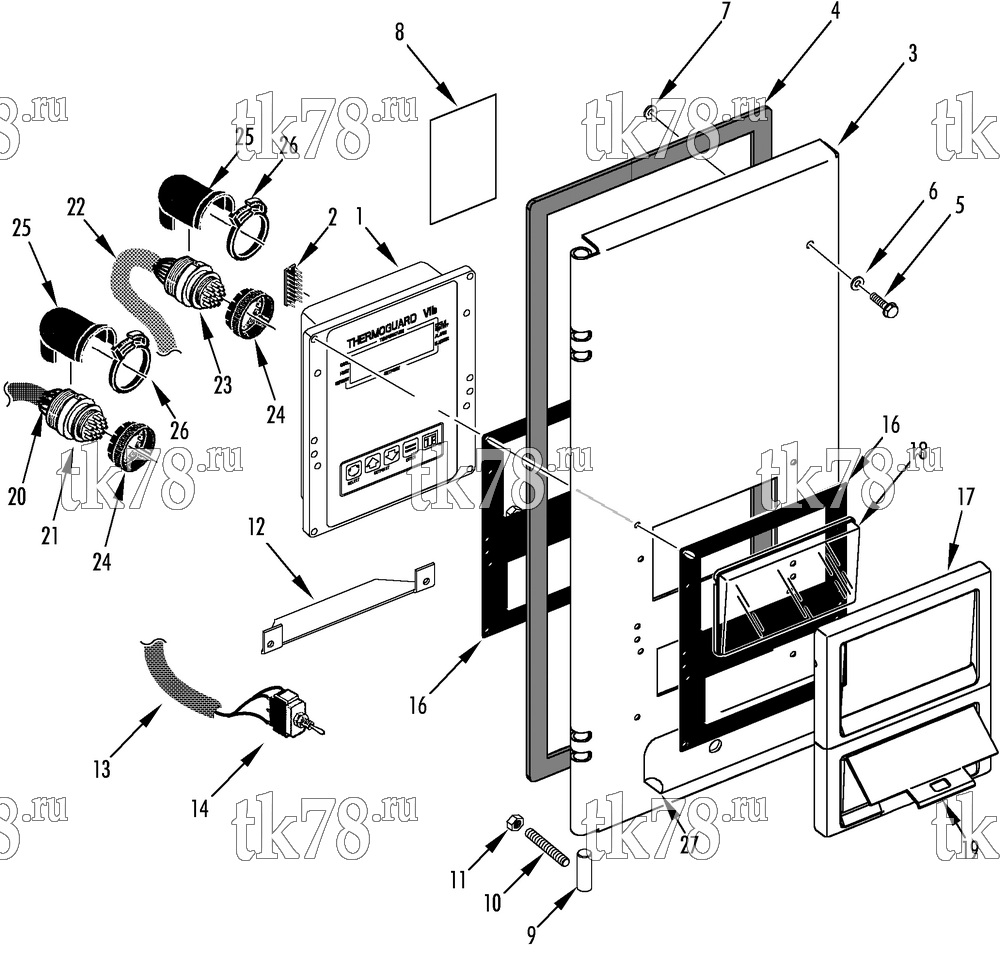

Установкa Thermo King SB Classic схема CONTROL BOX COVER (CLASSIC 30) – 178D3
Обновление от: 11/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2420 | CONTROLLER - TG VI | 1 | |
| 845-2420 | CONTROLLER - TG VI (reman) | 1 | ||
| 91-8114 | FACEPLATE | 1 | ||
| 10-91-8114 | Панель кнопок, SL-100e/200e | 4 250 ₽ |
|
|
| 55-4976 | SCREW - controller (10-32 x 1.00 in) | 6 | ||
| 55-5612 | SCREW - controller (10-32 x 1.25 in) | 2 | ||
| 55-2996 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 2 | 40-896 | KIT - eprom chip | 1 | |
| 3 | 91-7940 | DOOR - control box | 1 | |
| 4 | 33-2216 | GASKET - door | 1 | |
| 5 | 55-6352 | SCREW - door | 2 | |
| 6 | 55-3028 | WASHER - sealing | 2 | |
| 7 | 55-6772 | WASHER - split | 2 | |
| 8 | 92-859 | NAMEPLATE - relay board | 1 | |
| 9 | 99-7900 | ROD - hinge | 2 | |
| 10 | 55-3473 | PIN - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 11 | 55-2114 | NUT - cover to box | 2 | |
| 55-4954 | NUT - cover to box (locking) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 203-393 | SEALER - thread | A/R | ||
| 12 | 91-7140 | BRACKET - harness | 1 | |
| 99-3281 | MOUNT - bandwrap | A/R | ||
| 55-3669 | RIVET - mount | A/R | ||
| 13 | 41-4657 | HARNESS - switch | 1 | |
| 14 | 41-4165 | SWITCH - on/off | 1 | |
| 33-3369 | RING - sealing | 1 | ||
| 16 | 33-2797 | GASKET - bezel | 2 | |
| 17 | 91-7141 | BEZEL (upper) | 1 | |
| 18 | 91-7142 | WINDOW - bezel | 1 | |
| 19 | 91-7143 | BEZEL - TG VI (complete) | 1 | |
| 20 | 41-4656 | HARNESS - sensor | 1 | |
| 21 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 22 | 41-3102 | HARNESS - interconnecting | 1 | |
| 23 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 24 | 41-748 | LOCKRING | 2 | |
| 25 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 26 | 55-7618 | CLAMP (plastic) | 2 | |
| 27 | 91-7139 | NAMEPLATE - Switch | 1 |
