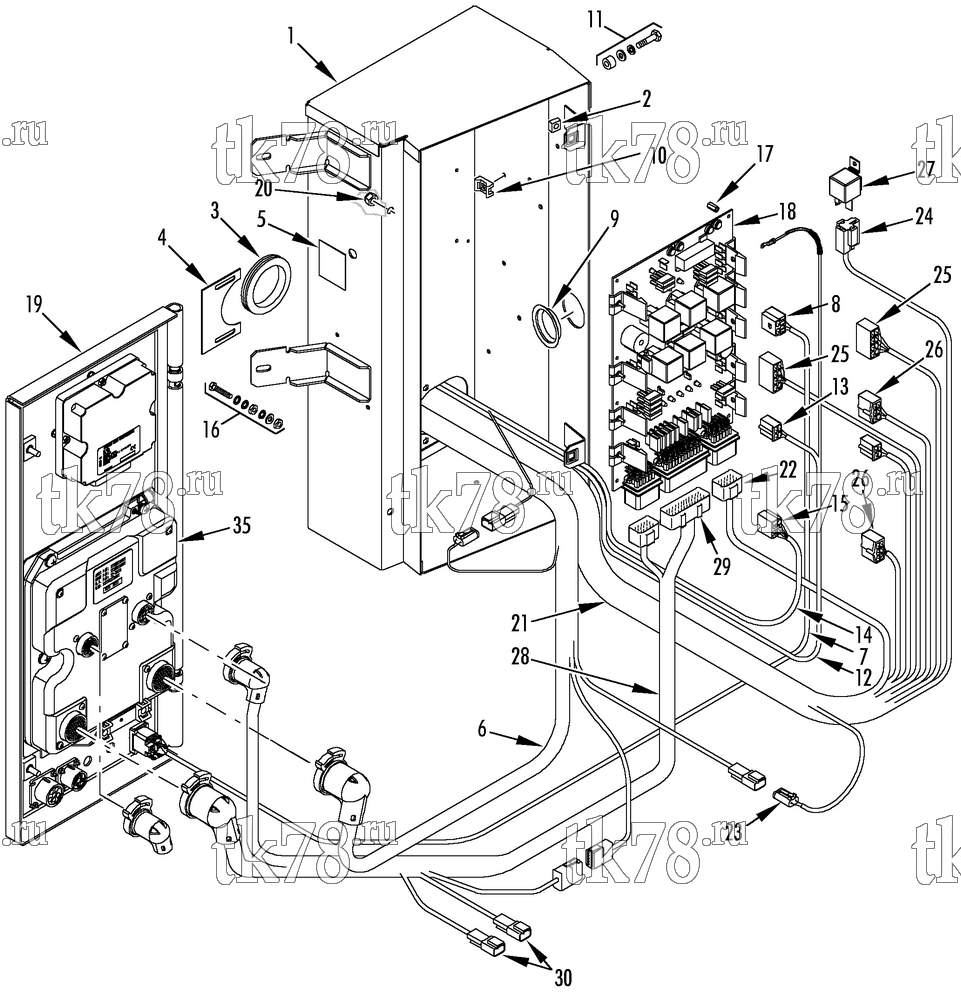

Установкa Thermo King SB-400 Tier 2 Engine схема CONTROL BOX – 204E3
Обновление от: 3/16/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5996 | BOX - control | 1 | |
| 2 | 55-3059 | NUT - captive (cover) | 2 | |
| 3 | 33-628 | GROMMET (2-1/8 id) | 1 | |
| 4 | 91-9860 | PLATE - cover | 1 | |
| 55-3844 | SCREW - cover | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 5 | 91-7135 | NAMEPLATE - blank | 1 | |
| 6 | 41-5653 | HARNESS - sensor | 1 | |
| 7 | 41-4442 | HARNESS - switch | 1 | |
| 8 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 9 | 55-6474 | PLUG - button | 1 | |
| 10 | 99-3281 | MOUNT - cable tie | A/R | |
| 55-3669 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | A/R | ||
| 11 | 55-538 | SCREW - box (1/4-20 x 5/8) | 3 | |
| 55-544 | SCREW - box (1/4-20 x 1-1/2) | 1 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-9688 | SPACER - box | 1 | ||
| 12 | 41-2846 | HARNESS - alternator | 1 | |
| 13 | 44-5224 | CONNECTOR (4-pin, female) | 1 | |
| 14 | 41-4600 | HARNESS - ETV | 1 | |
| 15 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 16 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 17 | 99-9889 | SPACER - standoff (relay board) | 10 | |
| 18 | 41-4316 | BOARD - relay (6 relays, see 180G1) | 1 | |
| 55-2997 | SCREW - spacer & relay board | 20 | ||
| 55-2998 | LOCKWASHER | 10 | ||
| 203-524 | LUBRICANT - multi-purpose | A/R | ||
| 19 | NSS | COVER - box (see 204E4) | 1 | |
| 20 | 55-2114 | NUT - cover (hex) | 2 | |
| 55-4954 | NUT - cover (lock) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 21 | 41-6711 | HARNESS - main | 1 | |
| 22 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9855 | SOCKET | 10 | ||
| 44-9854 | LOCK - receptacle (18-pin) | 1 | ||
| 23 | 44-9585 | CONNECTOR (2-pin, male) | 1 | |
| 24 | 41-1325 | SOCKET - mini plug | 1 | |
| 25 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 26 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 27 | 41-478 | RELAY (1pst) | 1 | |
| 55-3015 | SCREW - relay | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 28 | 41-2849 | HARNESS - interconnect | 1 | |
| 29 | 44-9769 | RECEPTACLE | 1 | |
| 44-9768 | LOCK - receptacle | 1 | ||
| 30 | 44-9589 | CONNECTOR (2-pin, female) | 1 |
