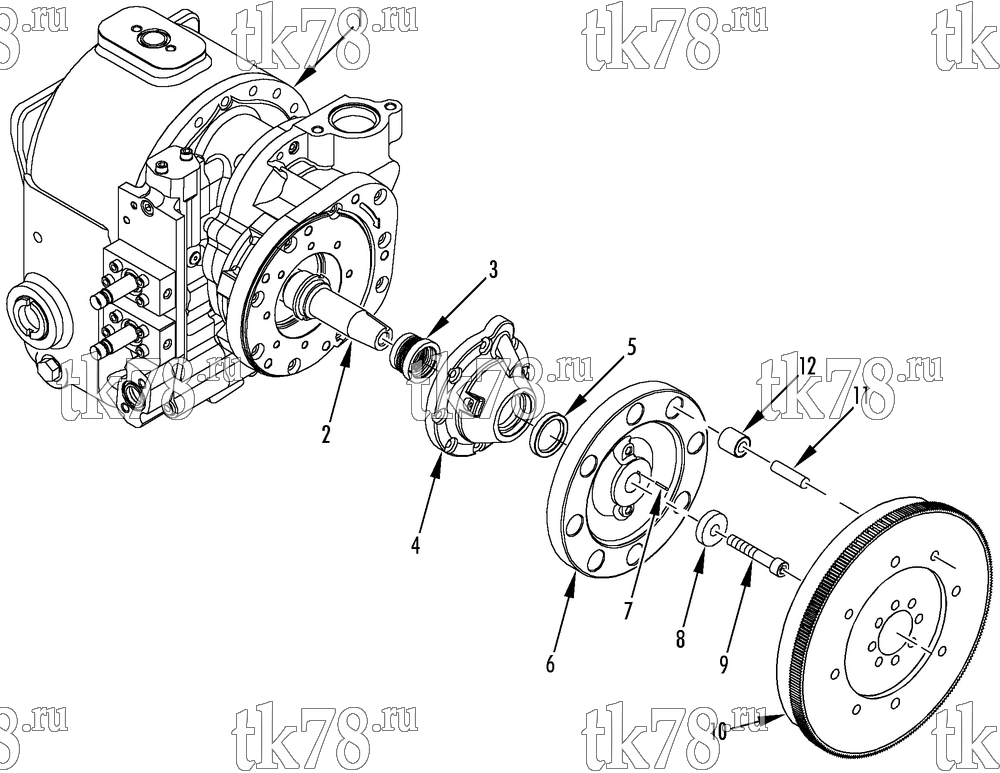

Установкa Thermo King SB-400 Tier 2 Engine схема 8 PIN COUPLING - SCREW COMPRESSOR – 170E0
Обновление от: 9/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-816 | COMPRESSOR - screw (reman) | 1 | |
| 2 | 22-1076 | SHAFT - drive (screw compressor) | 1 | |
| 3 | 22-1318 | SEAL - oil, assembly | 1 | |
|
10-22-1175 | Сальник компрессора, SB-400/SB-III | 38 320 ₽ |
|
| 33-4355 | O-RING (1-3/4 id) | 1 | ||
| 33-4356 | O-RING (1-1/2 id) | 1 | ||
| 33-4357 | O-RING (3-1/4 id) | 1 | ||
| 33-4358 | O-RING (9/16 id) | 1 | ||
| 4 | 22-1177 | COVER - seal | 1 | |
| 5 | 33-3004 | SEAL | 1 | |
|
10-33-3004 | Сальник коленвала, X426LS/430LS | 2 360 ₽ |
|
| PP-33-3004 | Сальник коленвала, X426LS/430LS | 1 270 ₽ |
|
|
| 6 | 77-2506 | COUPLING - compressor drive (8-pin, incl bushings) | 1 | |
|
10-77-2506 | Муфта сцепления, SB/SMX/SMX-II / SL/Sle 30 | 48 300 ₽ |
|
| 7 | 55-9032 | KEY (5/8 lg) | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 8 | 77-2505 | SPACER - coupling | 1 | |
|
10-77-2505 | Шайба, Drive Coupler (Large Shaft) | 3 660 ₽ |
|
| 9 | 55-9031 | SCREW - coupling (M12 x 1.75 x 70 mm) | 1 | |
|
10-55-9031 | Болт, 12MM, Drive Coupler (Large Shaft) | 1 930 ₽ |
|
| 10 | 12-750 | FLYWHEEL (see engine section) | 1 | |
| 11-8947 | GEAR - ring (before 11/08) | 1 | ||
| 13-1138 | GEAR - ring (11/08 & after) | 1 | ||
| 11 | 55-1123 | PIN - dowel | 8 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 12 | 77-2856 | BUSHING | 8 | |
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
