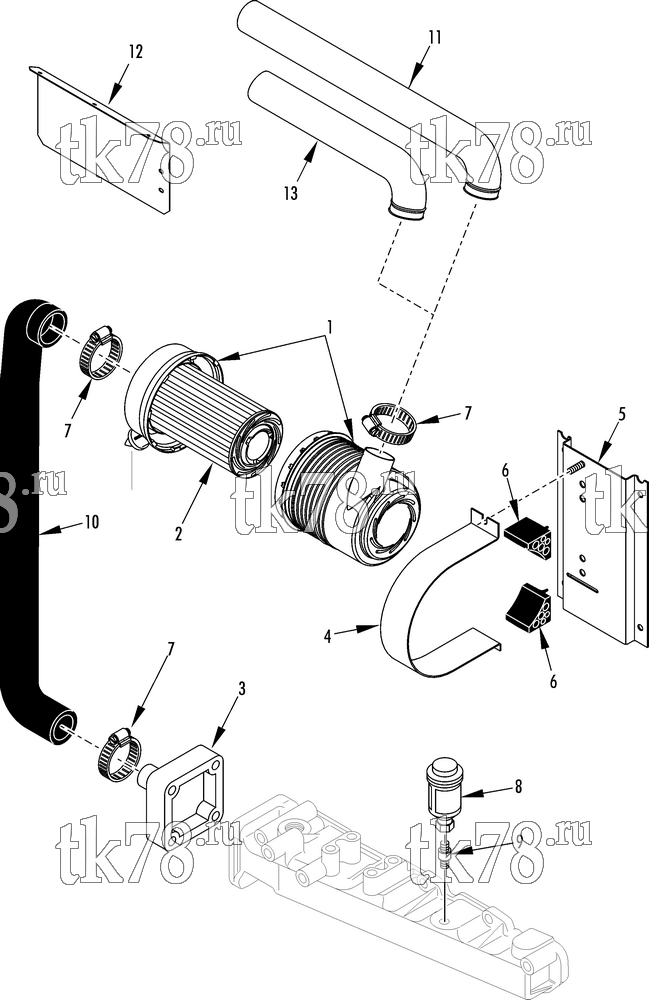

Установкa Thermo King SB-310 Tier 2 Engine схема AIR CLEANER GROUP (30s) – 178C8
Обновление от: 1/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9299 | FILTER - air cleaner (EMI 3000) | 1 | |
| 10-11-9299 | Фильтр воздушный в сборе, SL/SLe/SLX/SLXe | 2 700 ₽ |
|
|
| 2 | 11-9300 | ELEMENT - air cleaner (EMI 3000) | 1 | |
|
US-11-9300 | Фильтр воздушный, SL/SLe/SLX/SLXe | 4 190 ₽ |
|
|
10-11-9300 | Фильтр воздушный, SL/SLe/SLX/SLXe | 1 320 ₽ |
|
|
11-9300 OEM | Фильтр воздушный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 3 | 11-9266 | FLANGE - air intake | 1 | |
| 4 | 92-2423 | STRAP - filter | 1 | |
| 55-4967 | NUT - strap | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 5 | 92-2424 | PLATE - air cleaner | 1 | |
| 55-4967 | NUT | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 6 | 92-1119 | MOUNT - air cleaner | 2 | |
| 7 | 55-1636 | CLAMP - hose (1.125 - 3.00) | 1 | |
| 55-4979 | CLAMP - hose (1.560 - 2.50) | 2 | ||
| 8 | 11-7757 | INDICATOR - air restrictor | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 9 | 11-7828 | FITTING - indicator | 1 | |
| 10 | 11-9597 | HOSE - air cleaner | 1 | |
| 11 | 13-314 | HOSE - inlet (low noise, 665 mm lg) | 1 | |
| 12 | 90-413 | KIT - air intake shield | 1 | |
| 51-321 | RIVET - shield | 3 | ||
| 13 | 13-313 | HOSE - inlet (low noise, 450 mm lg, use w/air intake shield) | 1 |
