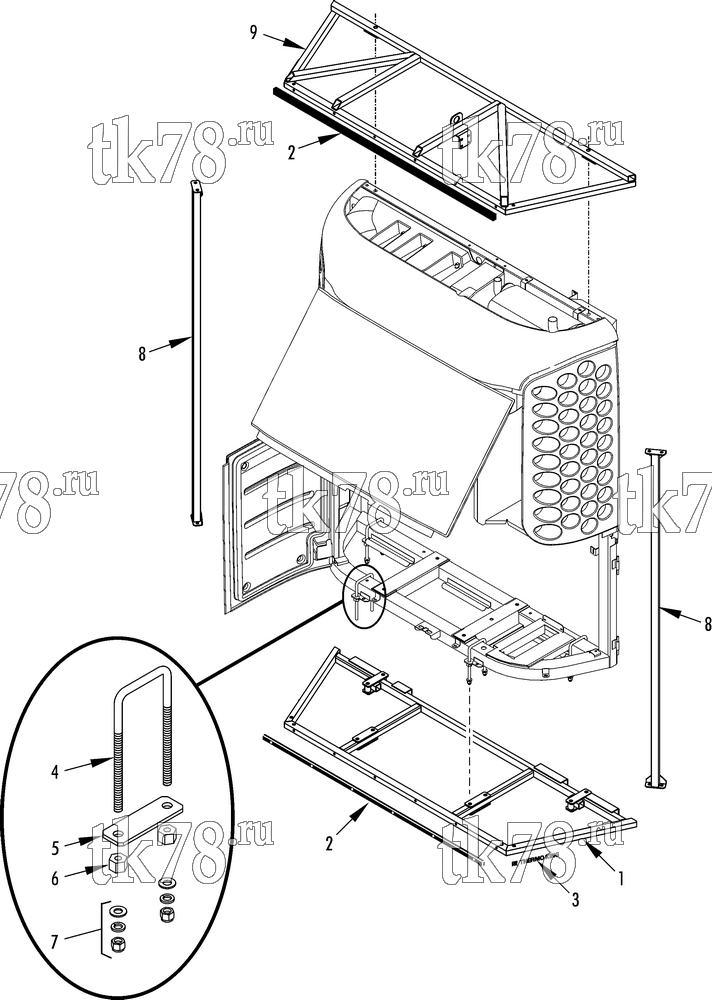

Установкa Thermo King SB-300 30 схема INTERMODAL PROTECTION GUARD – 244H7
Обновление от: 5/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 909-135 | KIT - unit protection guard | 1 | ||
| 1 | NSS | GUARD - bottom | 1 | |
| 2 | 92-8478 | BUMPER | 2 | |
| 55-140 | SCREW - bumper | 6 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-6863 | INSERT - threaded | 6 | ||
| 3 | 92-1902 | NAMEPLATE - Thermo King | 2 | |
| 4 | 51-2042 | U-BOLT | 4 | |
| 5 | 92-5539 | PLATE - U-bolt | 4 | |
| 6 | 51-1472 | SPACER - hex | 8 | |
| 7 | 55-2038 | FLATWASHER | 8 | |
| 55-365 | LOCKWASHER | 8 | ||
| 55-3686 | NUT | 8 | ||
| 8 | 98-8531 | MEMBER - vertical | 2 | |
| 55-129 | SCREW - vertical member | 8 | ||
| 55-375 | LOCKWASHER | 8 | ||
| 55-402 | FLATWASHER | 8 | ||
| 9 | NSS | GUARD - top | 1 | |
| 55-129 | SCREW - top guard (3/8-16) | 3 | ||
| 55-402 | FLATWASHER | 6 | ||
| 55-375 | LOCKWASHER | 3 | ||
| 55-5078 | NUT | 3 | ||
| 305-1402 | SCREW - top guard (5/8-11) | 2 | ||
| 55-451 | LOCKWASHER | 2 | ||
| 55-4767 | FLATWASHER | 2 |
