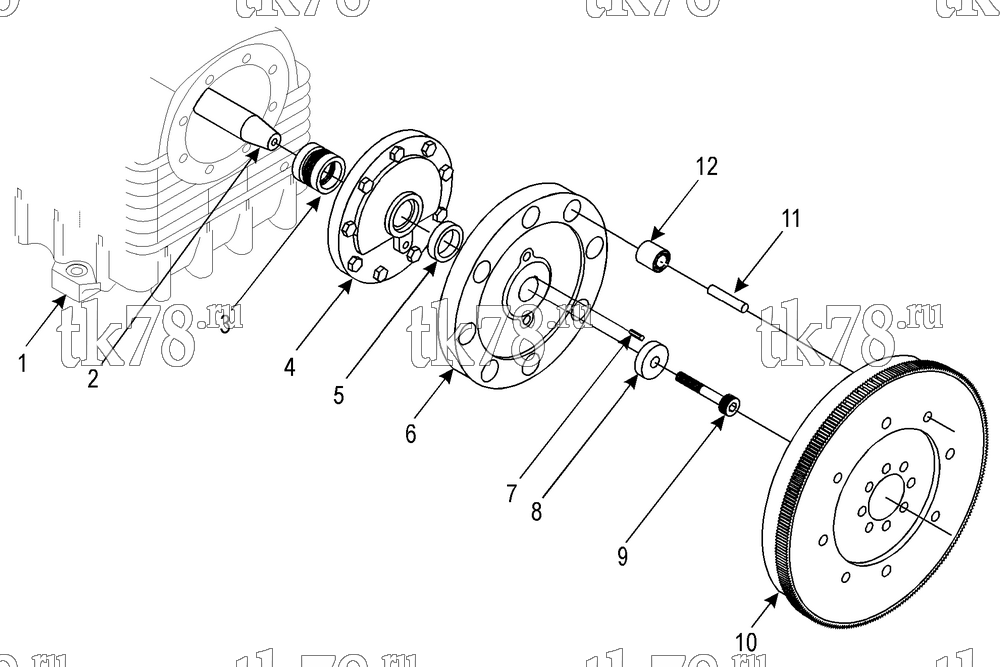

Установкa Thermo King SB-300 30 схема 8 PIN COUPLING w/LARGE SHAFT COMPRESSOR – 162B2
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-900 | COMPRESSOR - X430 (dry, no oil, new exchange, see 144F14) | 1 | |
| 2 | 22-1027 | CRANKSHAFT - X430 | 1 | |
| 10-22-1027 | Коленвал компрессора X430LS | 56 100 ₽ |
|
|
|
PP-22-1027 | Коленвал компрессора X430LS | 29 450 ₽ |
|
| 3 | 22-1101 | SEAL - bellows | 1 | |
| US-22-1101 | Сальник коленвала, X426LS/X430LS (R404A) | 53 610 ₽ |
|
|
|
10-22-1101 | Сальник коленвала, X426LS/X430LS (R404A) | 19 370 ₽ |
|
|
PP-22-1101 | Сальник коленвала, X426LS/X430LS (R404A) | 13 220 ₽ |
|
| 4 | 22-1028 | COVER - drive end | 1 | |
|
10-22-1028 | Крышка сальника компрессора X430LS | по запросу |
|
| 5 | 33-3004 | SEAL | 1 | |
|
10-33-3004 | Сальник коленвала, X426LS/430LS | 1 950 ₽ |
|
| PP-33-3004 | Сальник коленвала, X426LS/430LS | 1 190 ₽ |
|
|
| 6 | 77-2506 | COUPLING - compressor drive (8-pin, incl bushings) | 1 | |
|
10-77-2506 | Муфта сцепления, SB/SMX/SMX-II / SL/Sle 30 | 48 300 ₽ |
|
| 7 | 55-9032 | KEY (5/8 lg) | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 55-9024 | KEY (1-1/2 in lg) | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 8 | 77-2505 | SPACER - coupling | 1 | |
|
10-77-2505 | Шайба, Drive Coupler (Large Shaft) | 3 660 ₽ |
|
| 55-9300 | SPACER - clutch | 1 | ||
| 9 | 55-9031 | SCREW - coupling (M12 x 1.75 x 70 mm) | 1 | |
|
10-55-9031 | Болт, 12MM, Drive Coupler (Large Shaft) | 1 930 ₽ |
|
| 55-9092 | SCREW - clutch (M12 x 1.75 x 80 mm) | 1 | ||
| 10 | 12-750 | FLYWHEEL | 1 | |
| 11-8947 | GEAR - ring (before 11/08) | 1 | ||
| 13-1138 | GEAR - ring (11/08 & after) | 1 | ||
| 11 | 55-6376 | PIN - dowel (2.25 x .5002) | 8 | |
| 55-6377 | PIN - dowel (2.25 x .5010, oversize) | 8 | ||
| 55-1123 | PIN - dowel (2.00 x .5002) | 8 | ||
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 55-6754 | PIN - dowel (2.00 x .5010, oversize) | 8 | ||
| 12 | 77-2856 | BUSHING | 8 | |
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
