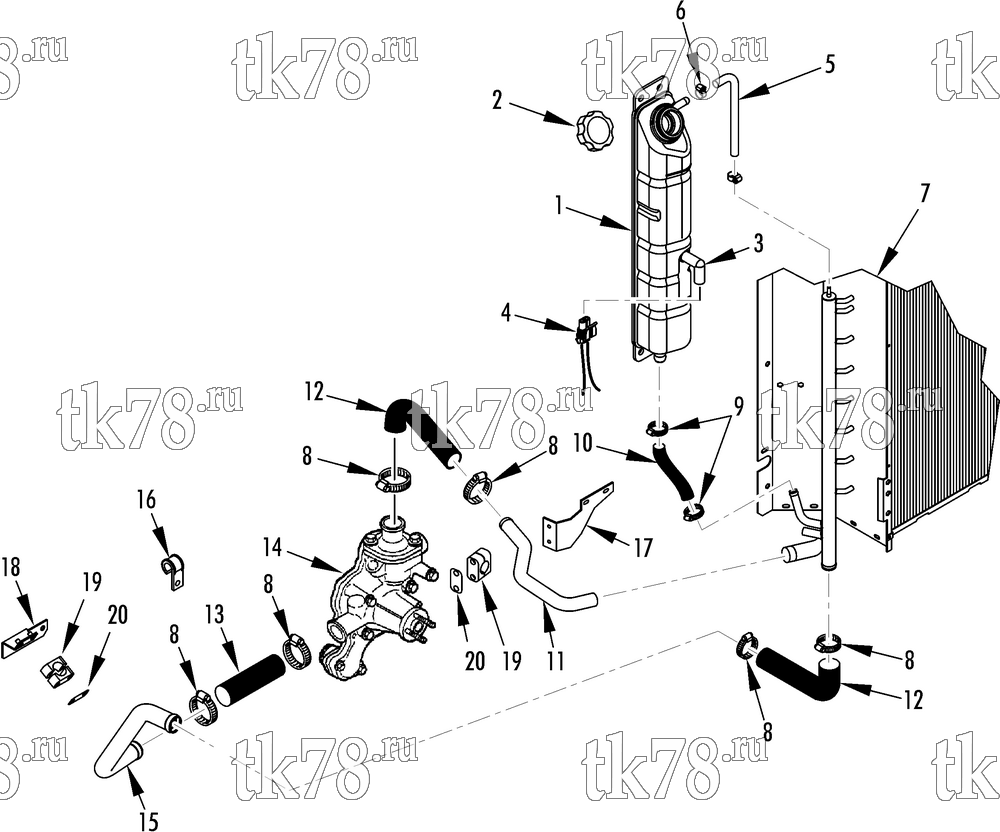

Установкa Thermo King SB-230 & SB-230 RR 30 & 50 схема ENGINE COOLING SYSTEM – 250A8
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-842 | TANK - expansion (inc cap & sensor switch) | 1 | |
|
10-12-842 | Расширительный бак | 38 500 ₽ |
|
| 2 | 11-9632 | CAP - tank (7psi) | 1 | |
|
10-11-9632 | Крышка расширительного бачка, SLX/SLXe | 930 ₽ |
|
| 3 | 41-6217 | SWITCH - sensor | 1 | |
| 55-101 | SCREW - tank | 4 | ||
| 55-2699 | LOCKWASHER (int/ext th) | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 4 | 41-6573 | CONNECTOR - female (part of main harness) | 1 | |
| 41-6574 | LOCK - secondary | 1 | ||
| 41-6575 | TERMINAL | 2 | ||
| 41-6576 | SEAL | 2 | ||
| 5 | 99-1655 | HOSE - overflow | 1 | |
| 6 | 55-2796 | CLAMP - hose | 2 | |
| 7 | 67-2218 | COIL - condenser/radiator (SB-130/230) | 1 | |
| 67-2219 | COIL - condenser/radiator (SB-330) | 1 | ||
| 8 | 55-2818 | CLAMP - hose (EPDM) | 6 | |
| 55-3401 | CLAMP - hose (silicone) | 6 | ||
| 9 | 55-5074 | CLAMP - hose | 2 | |
| 10 | 12-383 | HOSE - radiator (silicone, cut to 5.25 in) | 1 | |
| 11 | 11-9561 | TUBE - engine to radiator | 1 | |
| 12 | 11-9506 | HOSE - tube to engine | 2 | |
| 13 | 11-8480 | HOSE - tube to engine (EPDM, cut to 4.0 in) | 2 | |
| 12-537 | HOSE - tube to engine (silicone, cut to 4.0 in) | 2 | ||
| 14 | 13-509 | PUMP - water (ELC compatible, see 204F0) | 1 | |
| 10-13-2572 | Водяной насос, Yanmar TK 482 / 486 / 486V | 37 520 ₽ |
|
|
| 10-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 26 160 ₽ |
|
|
|
PP-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 8 320 ₽ |
|
|
PP-13-509 | Водяной насос, Yanmar TK 482 / 486 / 486V | 7 900 ₽ |
|
| 813-509 | PUMP - water (ELC compatible, remanufactured) | 1 | ||
| 15 | 92-6729 | TUBE - engine to radiator | 1 | |
| 16 | 55-3026 | CLAMP (5/8 dia) | 1 | |
| 17 | 92-4378 | BRACKET - radiator support | 1 | |
| 18 | 92-6732 | BRACKET - hose | 1 | |
| 55-7004 | SCREW - bracket | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 19 | 91-2473 | CLAMP (1-1/8 dia) | 4 | |
| 20 | 91-6158 | PLATE - clamp | 1 | |
| 55-5677 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 |
