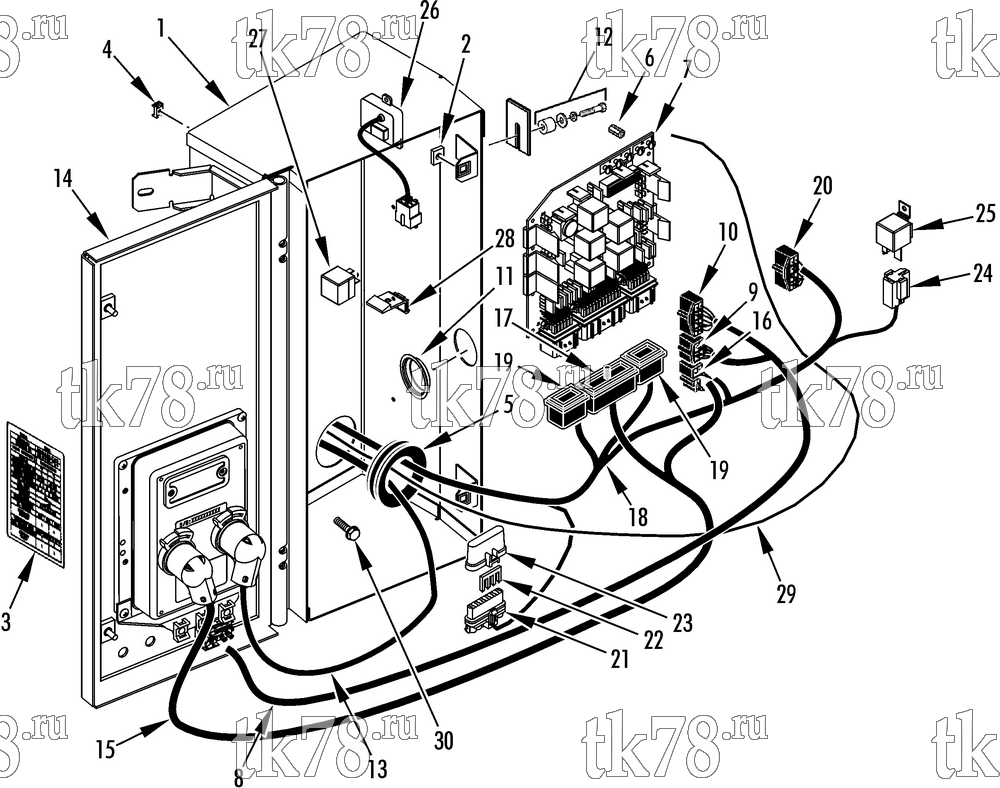

Установкa Thermo King SB-200TG схема CONTROL BOX ASSEMBLY – 221G8
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7763 | BOX - control | 1 | |
| 2 | 55-3059 | NUT - captive | 2 | |
| 3 | 92-6214 | NAMEPLATE - factory settings | 1 | |
| 4 | 99-3281 | MOUNT - cable tie | A/R | |
| 5 | 33-628 | GROMMET (2-1/8 id) | 1 | |
| 6 | 99-9889 | SPACER - standoff (relay board) | 5 | |
| 7 | 41-3727 | BOARD - relay (see 173A6) | 1 | |
| 55-2997 | SCREW - spacer & relay board | 10 | ||
| 55-2998 | LOCKWASHER | 10 | ||
| 203-393 | SEALER - thread | A/R | ||
| 8 | 41-4657 | HARNESS - switch | 1 | |
| 9 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 10 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 11 | 55-6474 | PLUG - button | 1 | |
| 92-155 | NAMEPLATE - Plug | 1 | ||
| 12 | 55-538 | SCREW - box (1/4-20 x 5/8) | 3 | |
| 55-544 | SCREW - box (1/4-20 x 1-1/4) | 1 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-7197 | SPACER - box | 1 | ||
| 13 | 41-7755 | HARNESS - sensor | 1 | |
| 14 | NSS | COVER - box (see 221G9) | 1 | |
| 15 | 41-7746 | HARNESS - interconnecting | 1 | |
| 16 | 44-6292 | CONNECTOR (1-pin, male) | 1 | |
| 17 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9769 | LOCK - receptacle | 1 | ||
| 18 | 41-7754 | HARNESS - main | 1 | |
| 19 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 44-9855 | TERMINAL | 30 | ||
| 44-9854 | LOCK - receptacle (18-pin) | 2 | ||
| 20 | 44-5030 | CONNECTOR (6-pin female) | 1 | |
| 21 | 41-1790 | CONNECTOR - base | 1 | |
| 41-1789 | CONNECTOR - lock | 1 | ||
| 22 | 41-2651 | BUSBAR - 4-pin | 1 | |
| 23 | 41-1787 | COVER - connector | 1 | |
| 24 | 41-1325 | SOCKET - relay | 1 | |
| 25 | 41-478 | RELAY - mini | 1 | |
| 26 | 41-7067 | BOARD - pc (fuel solenoid timer) | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 55-3443 | SCREW - board | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 27 | 41-893 | RELAY - solenoid timer (used with previous solenoid timers) | 1 | |
| 28 | 91-1277 | RETAINER - harness connector | 1 | |
| 29 | 41-7756 | HARNESS - alternator | 1 | |
| 30 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 |
