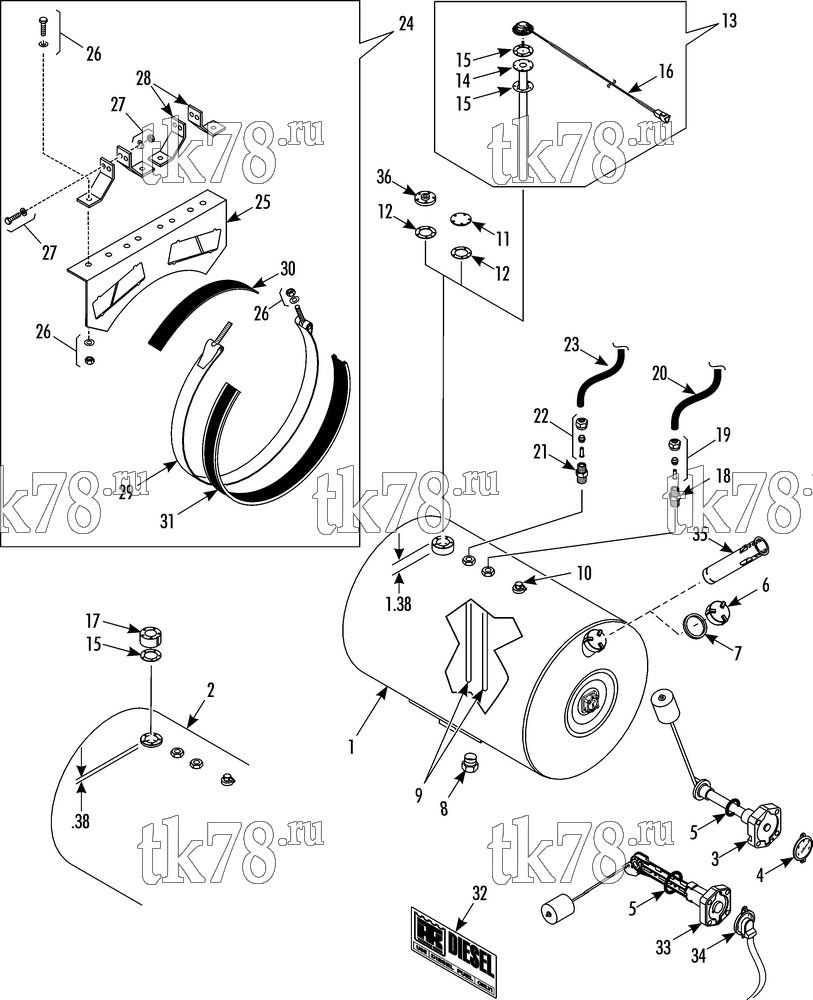

Установкa Thermo King SB-130 30 схема FUEL TANK (22 IN DIAMETER, 50 GALLON ALUMINUM) – 247E0
Обновление от: 6/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-954 | TANK - fuel (50 gallon, w/ fuel level sensor) | 1 | |
| 12-952 | TANK - fuel (50 gallon, heat chamber, w/ fuel level sensor) | 1 | ||
| 12-951 | TANK - fuel (50 gallon, anti-siphon, w/ fuel level sensor) | 1 | ||
| 12-953 | TANK - fuel (50 gallon, polished, w/ fuel level sensor) | 1 | ||
| 2 | 12-650 | TANK - fuel (50 gallon) | 1 | |
| 12-696 | TANK - fuel (50 gallon, anti-siphon option 048602) | 1 | ||
| 12-769 | TANK - fuel (50 gallon, heat chamber, arctic option 048675) | 1 | ||
| 12-753 | TANK - fuel (50 gallon, polished) | 1 | ||
| 3 | 11-2501 | GAUGE - fuel (mechanical) | 1 | |
| 4 | 11-5450 | DIAL - fuel gauge | 1 | |
|
10-11-5450 | Датчик уровня топлива | 4 800 ₽ |
|
| 5 | 33-4818 | O-RING - fuel gauge | 1 | |
| 6 | 11-7984 | CAP - fuel | 1 | |
| 7 | 33-381 | GASKET - cap | 1 | |
| 8 | 11-9134 | DRAIN | 1 | |
| 9 | 11-2655 | TUBE - pickup | 2 | |
| 10 | 55-5617 | VENT | 1 | |
| 11 | 11-9741 | COVER - fuel tank | 1 | |
| 12 | 33-3878 | GASKET - cover | 1 | |
| 55-1510 | SCREW - cover (5/8 lg) | 5 | ||
| 55-1511 | FLATWASHER | 5 | ||
| 55-431 | LOCKWASHER | 5 | ||
| 13 | 40-1128 | KIT - ultrasonic fuel level sensor (22 inch tank) | 1 | |
| 41-9250 | SENSOR - fuel level (ultrasonic) | 1 | ||
| 14 | 92-8161 | TUBE - sensor (ultrasonic) | 1 | |
| 15 | 33-4589 | GASKET - sensor tube | 2 | |
| 16 | 41-9722 | CABLE - fuel level sensor | 1 | |
| 17 | 13-1121 | SPACER - sensor (adapts tanks with .38 inch neck height for sensor kit) | 1 | |
| 18 | 11-4370 | CONNECTOR - hose fitting (1/4) | 1 | |
| 19 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 11-4841 | NUT (1/4) | 1 | ||
| 20 | 11-4367 | HOSE (1/4 od x 35 ft lg) | 1 | |
| 21 | 11-8982 | FITTING (3/8) | 1 | |
| 22 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT (3/8) | 1 | ||
| 23 | 11-4372 | HOSE (3/8 od x 35 ft lg) | 1 | |
| 24 | 90-398 | KIT - fuel tank | 1 | |
| 25 | 98-8096 | HANGER - fuel tank | 2 | |
| 26 | 55-1670 | SCREW (1/2-13 x 1-3/4) | 8 | |
| 55-5270 | FLATWASHER (1/2) | 20 | ||
| 55-3686 | NUT (1/2-13) | 12 | ||
| 27 | 55-1469 | SCREW (3/8-16 x 1-1/2) | 12 | |
| 55-402 | FLATWASHER (3/8) | 20 | ||
| 55-5078 | NUT (3/8-16) | 12 | ||
| 28 | 98-8095 | BRACKET - hanger | 8 | |
| 29 | 98-2687 | STRAP & TEE - assembly | 2 | |
| 30 | 33-4479 | STRIP - chafing (4 in lg) | 2 | |
| 31 | 33-4478 | STRIP - chafing (67 in lg) | 2 | |
| 32 | 99-1596 | NAMEPLATE - Diesel Fuel Only | 1 | |
| 33 | 11-9926 | GAUGE - fuel (twin site, 50 gal. electronic) | 1 | |
| 34 | 41-9223 | DIAL - gauge | 1 | |
| 35 | 11-9631 | ANTISOPHON | 1 | |
|
10-11-9631 | Anti-siphon device - Reefer tanks | 6 920 ₽ |
|
| 36 | 92-9930 | ADAPTER - threaded (1/2 npt) | 1 |
