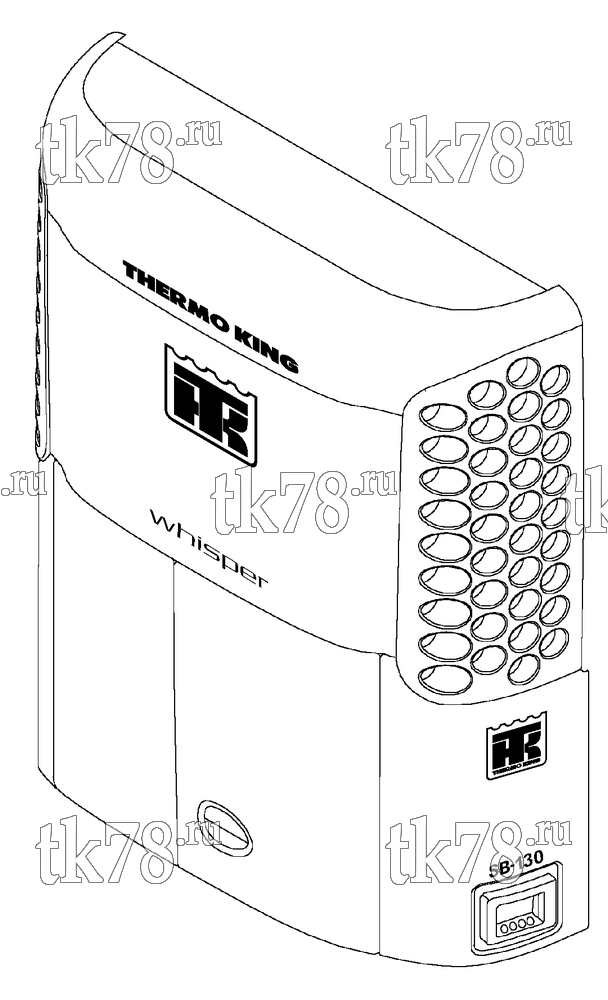

Установкa Thermo King SB-130 30 схема SB-130 30 REFERENCE SHEET – 15U87
Обновление от: 7/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 901703 | System - SB-130 30 | 12/11 | ||
| 069094 | SB-130 30 | 12/11 | ||
| 002016 | Painted Grille | 12/11 | ||
| 002020 | Chrome Grille | 12/11 | ||
| 002070 | Fresh Air Exchanger | 12/11 | ||
| 002185 | SB 110+ ETV | 12/11 | ||
| 002240 | Fuel Tank - 50 Gallon AL 22 Dia | 12/11 | ||
| 069099 | Fuel Tank - 50 Gallon AL 22 Dia, Polished | 5/11 | ||
| 002241 | Fuel Tank - 50 Gallon AL 22 Dia | 12/11 | ||
| 002242 | Fuel Tank - 30 Gallon AL 22 Dia | 12/11 | ||
| 002243 | Fuel Tank - 110 Gallon AL 22 Dia | 12/11 | ||
| 002244 | Fuel Tank - 50 Gallon AL 22 Dia, Anti-Siphon | 12/11 | ||
| 002245 | Fuel Tank - 50 Gallon AL 22 Dia, Arctic Option | 12/11 | ||
| 002246 | Fuel Tank - 50 Gallon AL 18 Dia | 5/11 | ||
| 002247 | Fuel Tank - 120 Gallon AL 22 Dia | 12/11 | ||
| 002249 | Fuel Tank - 75 Gallon AL 22 Dia | 12/11 | ||
| 048332 | Compound Gauge WO/ETV | 12/11 | ||
| 048678 | Frost Plug Heater | 12/11 | ||
| 048701 | Fuel Tank - 30 Gallon AL 22 Dia | 5/11 | ||
| 069065 | Fuel Heater, Electric | 12/11 | ||
| 069069 | Quick Oil Drain Connector | 12/11 | ||
| 069077 | Fuel Heater, Electric | 12/11 | ||
| 069079 | Smooth Battery Cables | 12/11 | ||
| 069080 | Compound Gauge W/ETV | 12/11 | ||
| 069081 | Muffler Railroad units | 12/11 | ||
| 069086 | Battery Holddown Heavy Duty | 12/11 | ||
| 069089 | Fuel Tank - 50 Gallon AL 22 Dia | 5/11 | ||
| 069091 | iBox SR-3 3rd Party | 12/11 | ||
| 069100 | Fuel Tank - 50 Gallon AL 22 Dia | 5/11 | ||
| 069101 | Fuel Tank - 50 Gallon AL 22 Dia | 5/11 | ||
| 069116 | Remote Controller | 12/11 | ||
| 069122 | Alternator - 65 Amp | 12/11 | ||
| 069143 | REB Option | 12/11 | ||
| 700248 | ERC-1 | 12/11 | ||
| 700250 | Door Switch | 12/11 | ||
| 701288 | Status Display | 12/11 | ||
| 701336 | Status Display, Flush Mount | 12/11 | ||
| 701874 | Trac-King GPRS SR-3 (TSA) | 5/11 | ||
| 701968 | Trac-King 2-way/1-way | 12/11 | ||
| 702034 | iBox SR-3 3rd Party | 5/11 | ||
| 702131 | Fuel Display | 12/11 | ||
| 702330 | Trac-King GPRS SR2 (TSA) | 12/11 | ||
| 702390 | Status Display | 12/11 | ||
| 702414 | USFLS Harness | 5/11 | ||
| 702575 | HMI Sensor - 100 ft | 12/11 | ||
| 720491 | HMI Sensor - 10 ft | 12/11 | ||
| 720492 | HMI Sensor - 20 ft | 12/11 | ||
| 720493 | HMI Sensor - 40 ft | 12/11 | ||
| 720494 | HMI Sensor - 60 ft | 12/11 | ||
| 720495 | HMI Sensor - 80 ft | 12/11 | ||
| 811053 | Kit - Installation Box | 12/11 | ||
| 069144 | REB TracKing Cellular | 12/11 |
