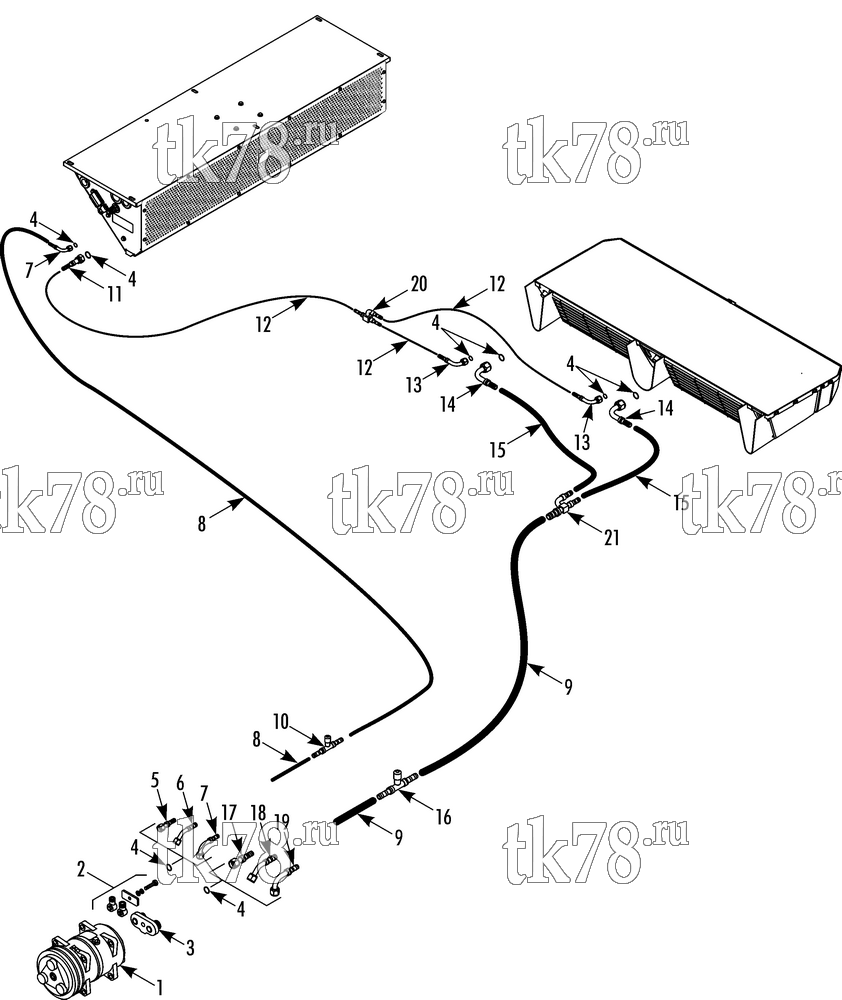

Установкa Thermo King SA-800 схема COMPRESSOR & HOSE KITS w/ 1 SKIRT MOUNT CONDENSER & 1 COMPRESSOR – 264C3
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - TM16 (see 133F14) | 1 | |
| NSS | COMPRESSOR - TM21 (see 184E4) | 1 | ||
| NSS | COMPRESSOR - TM31 (see 184G8) | 1 | ||
| 2 | 22-1053 | CONNECTOR - compressor | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 3 | 22-1359 | KIT - manifold (90 degree swivel) | 1 | |
| 51-1478 | SCREW - manifold | 1 | ||
| 55-6999 | FLATWASHER | 1 | ||
| 55-8537 | LOCKWASHER | 1 | ||
| 4 | 33-2846 | O-RING (7/16 id) | A/R | |
| 33-566 | O-RING (1/2 id) | A/R | ||
| 33-2848 | O-RING (9/16 id) | A/R | ||
| 33-2847 | O-RING (11/16 id) | A/R | ||
| 5 | 55-9527 | FITTING - straight (tube-O, #10 hose x #8 fitting) | 1 | |
| 51-2443 | FITTING - straight (tube-O, #10 hose x #10 fitting) | 1 | ||
| 6 | 51-326 | FITTING - 45 deg (tube-O, #10 hose x #8 fitting) | 1 | |
| 51-334 | FITTING - 45 deg (tube-O, #10 hose x #10 fitting) | 1 | ||
| 7 | 51-2438 | FITTING - 90 deg (tube-O, #10 hose x #8 fitting) | 2 | |
| 51-2424 | FITTING - 90 deg (tube-O, #10 hose x #10 fitting) | 1 | ||
| 8 | 61-637 | HOSE (#10, 50 ft) | A/R | |
| 67-1710 | HOSE (#10, 300 ft) | A/R | ||
| 9 | 67-2192 | HOSE (#16, 300 ft) | A/R | |
| 10 | 51-325 | FITTING - w/port (#10) | 1 | |
| 11 | 51-2441 | FITTING - straight (o-ring seal, #8 hose) | 1 | |
| 12 | 61-627 | HOSE (#8, 50 ft) | A/R | |
| 67-1709 | HOSE (#8, 300 ft) | A/R | ||
| 13 | 51-2406 | FITTING - 90 deg (tube-O, #8) | 1 | |
| 14 | 51-2459 | FITTING - 90 deg (tube-O, #12) | 1 | |
| 15 | 61-643 | HOSE (#12, 50 ft) | A/R | |
| 67-1711 | HOSE (#12, 300 ft) | A/R | ||
| 16 | 51-2588 | SPLICE (#16 hose w/ R134a low side charging port) | 1 | |
| 17 | 51-2473 | FITTING - straight (tube-O, #16 hose & #10 fitting) | 1 | |
| 51-2543 | FITTING - straight (tube-O, #16 hose & #12 fitting) | 1 | ||
| 18 | 51-2452 | FITTING - 45 deg (tube-O, #16 hose & #10 fitting) | 1 | |
| 51-1759 | FITTING - 45 deg (tube-O, #16 hose & #12 fitting) | 1 | ||
| 19 | 51-2587 | FITTING - 90 deg (tube-O, #16 hose & #10 fitting) | 1 | |
| 51-1753 | FITTING - 90 deg (tube-O, #16 hose & #12 fitting) | 1 | ||
| 20 | 51-2336 | FITTING - tee (#8 x #8 x #8 hose) | 1 | |
| 21 | 51-2335 | FITTING - tee (#12 x #12 x #16 hose) | 1 |
