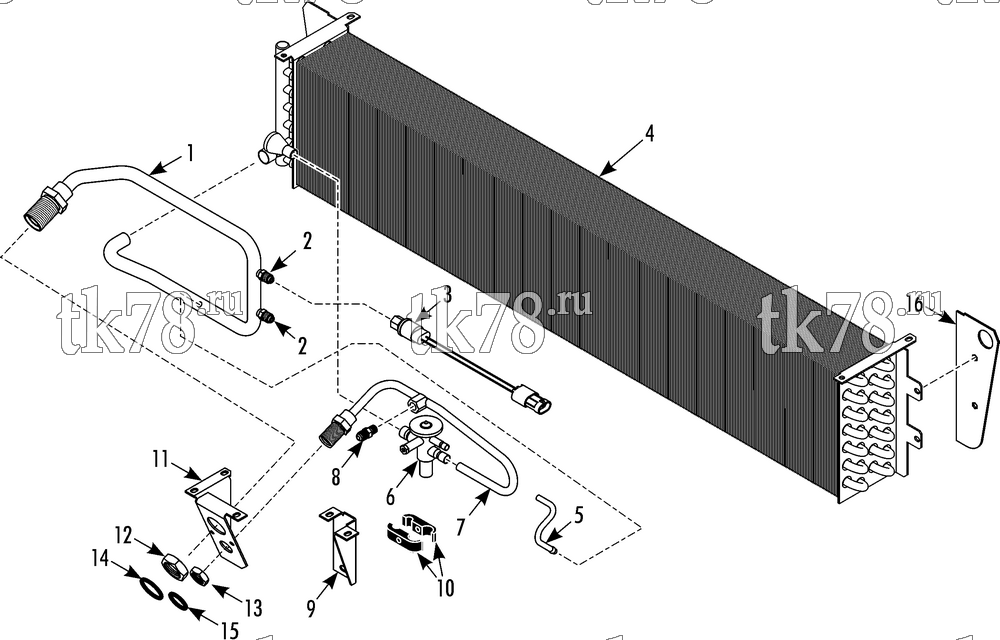

Установкa Thermo King SA-800 схема REFRIGERATION EVAPORATOR – 260D7
Обновление от: 7/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5946 | TUBE - suction | 1 | |
| 2 | 66-9842 | VALVE | 2 | |
| 3 | 42-410 | SWITCH - lpco | 1 | |
| 4 | 67-2759 | COIL - evaporator | 1 | |
| 55-4560 | NUT - coil | 1 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 5 | 61-5947 | TUBE - equalizer | 1 | |
| 6 | 61-863 | VALVE - expansion (R134a) | 1 | |
| 7 | 61-5948 | TUBE - liquid line | 1 | |
| 8 | 11-2886 | VALVE | 1 | |
| 9 | 92-9618 | BRACKET - tube | 1 | |
| 55-4560 | NUT - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 10 | 55-7118 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-9146 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 11 | 92-9619 | BRACKET - bulkhead | 1 | |
| 55-4560 | NUT - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 12 | 108-2304 | NUT - bulkhead (1-1/16) | 1 | |
| 55-7199 | LOCKWASHER (1.21 id) | 1 | ||
| 13 | 51-2090 | NUT - bulkhead | 1 | |
| 55-9146 | LOCKWASHER (.83 id) | 1 | ||
| 14 | 33-2847 | O-RING (# 12) | 1 | |
| 15 | 33-2846 | O-RING (# 8) | 1 | |
| 16 | 92-9620 | BRACKET - evaporator (ac only option) | 1 | |
| 55-3843 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 |
