Установкa Thermo King SA-800 схема SA-800 REFERENCE SHEET – 18U46

Обновление от: 10/23/12

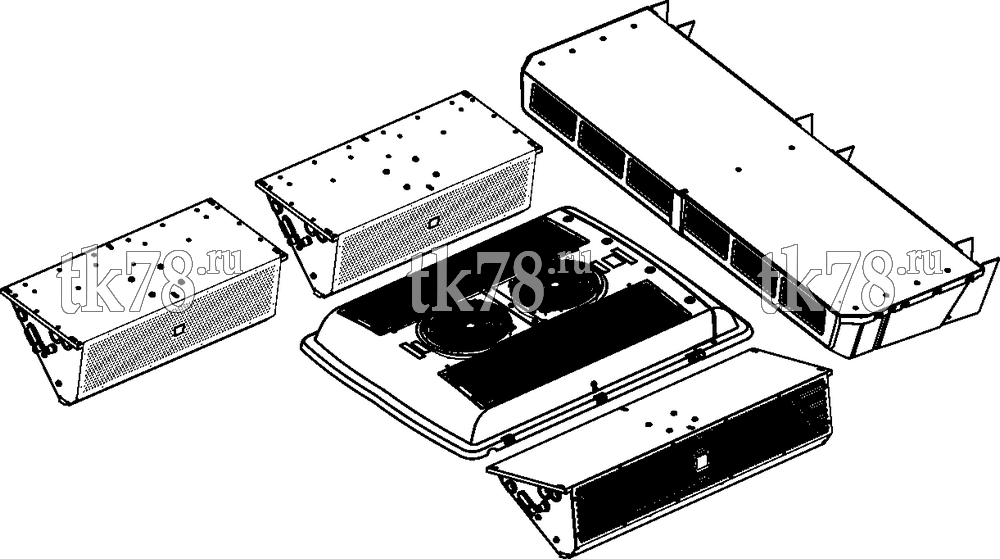

Каталог запчастей для Thermo King SA-800 SA-800 REFERENCE SHEET
№TK #ОписаниеКол-во
Цена
901601SA-800 Heat & Cool w/ dual Condensers & Compressors10/12
901602SA-800 Heat & Cool w/ 2 Condensers & 1 Compressor10/12
901603SA-800 Heat & Cool w/ 1 Condenser & Compressor10/12
901765SA-800 Standard Controls Cool only w/ dual Condensers & Compressors10/12
901766SA-800 Standard Controls Cool only w/ 2 Condensers & 1 Compressor10/12
901767SA-800 Standard Controls Cool only w/ 1 Condenser & Compressor10/12
901768SA-800 Standard Controls Heat & Cool w/ Rooftop Condenser & 1 Compressor10/12
901769SA-800 Standard Controls Cool only w/ Rooftop Condenser & 1 Compressor10/12
008998Evaporator SA-800 100010/12
008999Evaporator SA-800 100410/12
013483Condenser - Rooftop10/12
013498Condenser - Skirt Mount 3 Fans10/12
013561Condenser - Skirt Mount 2 Fans10/12
701992Condenser Harness Kit 11M10/12
702503Swivel Manifold Kit10/12
702506Standard Controls10/12
703060Condenser Harness Kit 15M10/12
703074Coolant Pump and Valve10/12
703075Control Panel Rooftop Mount10/12
703076Control Panel Skirt Mount10/12
703154Compressor Kit 16HD 12V 2A10/12
703155Compressor Kit 16HD 12V, 8V groove10/12
703156Compressor Kit 16HD DM 12V, 8V groove10/12
703157Compressor Kit 16HD DM 12V, 2A groove10/12
703158Compressor Kit 21HD DM 12V, 8V groove10/12
703159Compressor Kit 21HD DM 12V, 2A groove10/12
703160Compressor Kit 21HD DM 12V, 1B 110/12
703161Compressor Kit 31HD 12V, 2B groove10/12
703162Compressor Kit 31HD 12V, 2A groove10/12
703163Compressor Kit 31HD 12V, 8V groove10/12
703245Harness Kit CP to Evaporator 4M10/12
703246Harness Kit CP to Evaporator 11M10/12
703247Harness Kit DP to CP 4M (drivers panel)10/12
703248Harness Kit DP to CP 10M10/12
703249Harness Kit DP to CP 14M10/12
703250Jumper Kit Single Compressor Dual Condensers10/12
703251Jumper Kit Single Compressor Single Condenser10/12
703252Fittings Kit 2 TM16/21 Compressors Dual Skirt Mount Condensers 90 Degree10/12
703253Fittings Kit 2 TM16/21 Compressors Dual Skirt Mount Condensers Straight10/12
703254Fittings Kit 2 TM16/21 Compressors Dual Skirt Mount Condensers 45 Degree10/12
703255Fittings Kit TM16/21 Compressor Dual Skirt Mount Condensers 90 Degree10/12
703256Fittings Kit TM16/21 Compressor Dual Skirt Mount Condensers Straight10/12
703257Fittings Kit TM16/21 Compressor Dual Skirt Mount Condensers 45 Degree10/12
703258Fittings Kit TM31 Compressor Dual Skirt Mount Condensers 90 Degree10/12
703259Fittings Kit TM31 Compressor Dual Skirt Mount Condensers Straight10/12
703260Fittings Kit TM31 Compressor Dual Skirt Mount Condensers 45 Degree10/12
703261Fittings Kit TM16/21 Compressor Roof Top Condensers 90 Degree10/12
703262Fittings Kit TM16/21 Compressor Roof Top Condensers Straight10/12
703263Fittings Kit TM16/21 Compressor Roof Top Condensers 45 Degree10/12
703264Fittings Kit TM31 Compressor Roof Top Condensers 90 Degree10/12
703265Fittings Kit TM31 Compressor Roof Top Condensers Straight10/12
703266Fittings Kit TM31 Compressor Roof Top Condensers 45 Degree10/12
703267Fittings Kit TM16/21 Compressor Skirt Mount Condensers 90 Degree10/12
703268Fittings Kit TM16/21 Compressor Skirt Mount Condensers Straight10/12
703269Fittings Kit TM16/21 Compressor Skirt Mount Condensers 45 Degree10/12
703270Fittings Kit TM31 Compressor Skirt Mount Condensers 90 Degree10/12
703271Fittings Kit TM31 Compressor Skirt Mount Condensers Straight10/12
703272Fittings Kit TM31 Compressor Skirt Mount Condensers 45 Degree10/12
703273Hose Kit Dual Compressor Dual Skirt Mount Condensers10/12
703274Hose Kit Single Compressor Dual Skirt Mount Condensers10/12
703275Hose Kit Single Compressor Single Skirt Mount Condenser10/12
703276Hose Kit Single Compressor Single Roof Top Condenser10/12
703277Mounting Rails Evaporator10/12
703320Standard Control Kit10/12
703370Standard Control Kit10/12
703371Standard Control Kit10/12
718286Compressor Straight Manifold Kit TM16/2110/12
719052Coolant Valve 12V10/12
719054Coolant Pump 12V10/12
719700Coolant Valve Harness10/12
720839Harness Control Panel to Compressor 10M10/12
720849Harness Control Panel to Compressor 18M10/12
800722Install Kit10/12
800723Install Kit10/12
800766SLC Roof Plate Kit10/12
800767Shuttle Roof Plate Kit10/12
