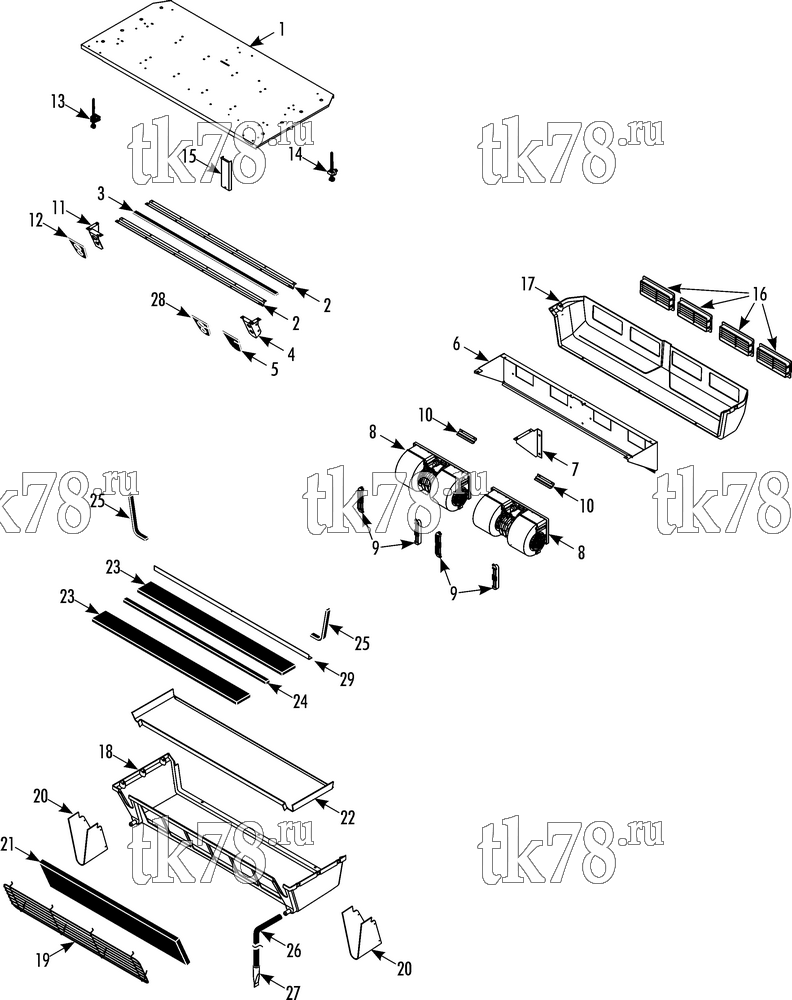

Установкa Thermo King SA-600 схема EVAPORATOR STRUCTUAL & BLOWERS – 258E0
Обновление от: 3/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8945 | BASE - top | 1 | |
| 2 | 92-9629 | BRACKET - evaporator | 2 | |
| 55-3101 | RIVET | 24 | ||
| 3 | 33-4907 | GASKET - evaporator | 2 | |
| 4 | 92-9630 | BRACKET | 1 | |
| 55-4560 | NUT - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 5 | 33-4908 | PLUG - foam (ac only option) | 1 | |
| 6 | 92-9631 | BRACKET - blower | 1 | |
| 7 | 92-9632 | BRACKET - center | 1 | |
| 55-4560 | NUT - bracket | A/R | ||
| 55-2001 | FLATWASHER | A/R | ||
| 8 | 78-1823 | BLOWER 12V | 2 | |
| 9 | 92-9633 | CLAMP - blower | 4 | |
| 55-3843 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 10 | 92-9634 | BRACKET - blower | 2 | |
| 55-3101 | RIVET - bracket | 4 | ||
| 11 | 92-9619 | BRACKET - bulkhead | 1 | |
| 55-4560 | NUT - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 12 | 33-4909 | PLUG - foam, bulkhead | 1 | |
| 13 | 51-2041 | CLIP - harness, edge | 5 | |
| 14 | 51-2193 | CLIP - harness | 3 | |
| 15 | 92-9635 | BRACKET - cover | 1 | |
| 16 | 92-9637 | LOUVER | 4 | |
| 17 | 98-8946 | COVER - evaporator, front | 1 | |
| 18 | 98-8947 | COVER - evaporator | 1 | |
| 55-3015 | SCREW - covers | 16 | ||
| 55-2964 | LOCKWASHER | 16 | ||
| 55-2001 | FLATWASHER | 16 | ||
| 19 | 98-8948 | GRILL - evaporator | 1 | |
| 20 | 92-9636 | COVER - hose | 2 | |
| 51-2194 | SCREW - cover | 8 | ||
| 21 | 92-9006 | FILTER - air | 1 | |
| 22 | 33-4910 | INSULATION - cover | 1 | |
| 23 | 33-4911 | FOAM - anti slosh | 2 | |
| 24 | 33-4912 | GASKET - evaporator | 1 | |
| 25 | 33-4913 | SEAL - evaporator | 2 | |
| 26 | 61-5463 | TUBING - drain | 2 | |
| 27 | 66-1273 | VALVE - check | 2 | |
| 28 | 33-4914 | PLUG - foam (with heat option) | 1 | |
| 29 | 92-9638 | BRACKET - nut plate | 1 | |
| 55-8798 | INSERT - bracket | 3 |
