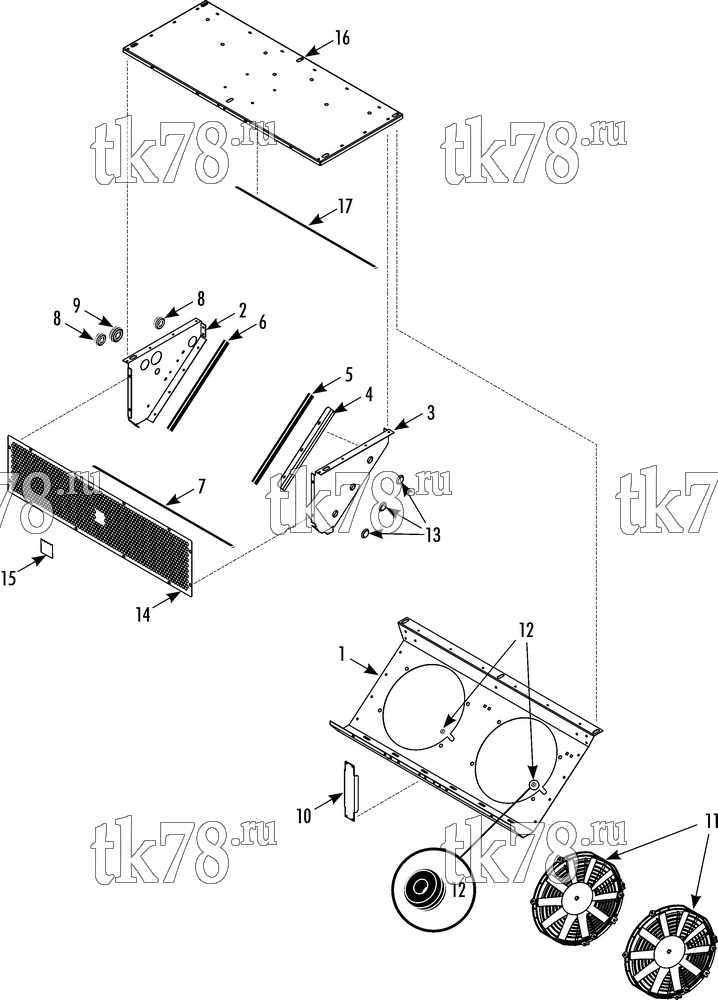

Установкa Thermo King SA-400 схема CONDENSER SKIRT STRUCTURAL & FANS – 260E7
Обновление от: 6/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9023 | FRAME - condenser, bottom | 1 | |
| 55-8711 | INSERT | 8 | ||
| 55-3101 | RIVET - frame | A/R | ||
| 2 | 98-8941 | PANEL - side, left | 1 | |
| 3 | 98-8942 | PANEL - side, right | 1 | |
| 55-3101 | RIVET - panel | A/R | ||
| 4 | 92-9626 | BRACKET | 1 | |
| 55-8752 | INSERT | 8 | ||
| 5 | 33-4903 | GASKET - coil, right (1/2 in thk) | 1 | |
| 6 | 33-4902 | GASKET - coil, left (1/4 in thk) | 1 | |
| 7 | 33-4985 | GASKET - coil, bottom (1/8 in thk) | 1 | |
| 8 | 33-2110 | GROMMET (1.0 id) | 2 | |
| 9 | 33-3927 | GROMMET (1.375 id) | 1 | |
| 10 | 92-9627 | BRACKET | 1 | |
| 55-3101 | RIVET | 4 | ||
| 11 | 42-766 | FAN - condenser (12V) | 2 | |
| 55-2979 | SCREW - fan | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 12 | 33-573 | GROMMET - fan (.312 id) | 2 | |
| 13 | 92-9628 | PLUG | 3 | |
| 14 | 98-9024 | GRILL - condenser | 1 | |
| 55-3015 | SCREW - grill | 12 | ||
| 55-2964 | LOCKWASHER | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 15 | 91-6958 | NAMEPLATE - TK Logo | 1 | |
| 16 | 98-9025 | COVER - condenser, top | 1 | |
| 17 | 33-4986 | GASKET - coil, top | 1 |
