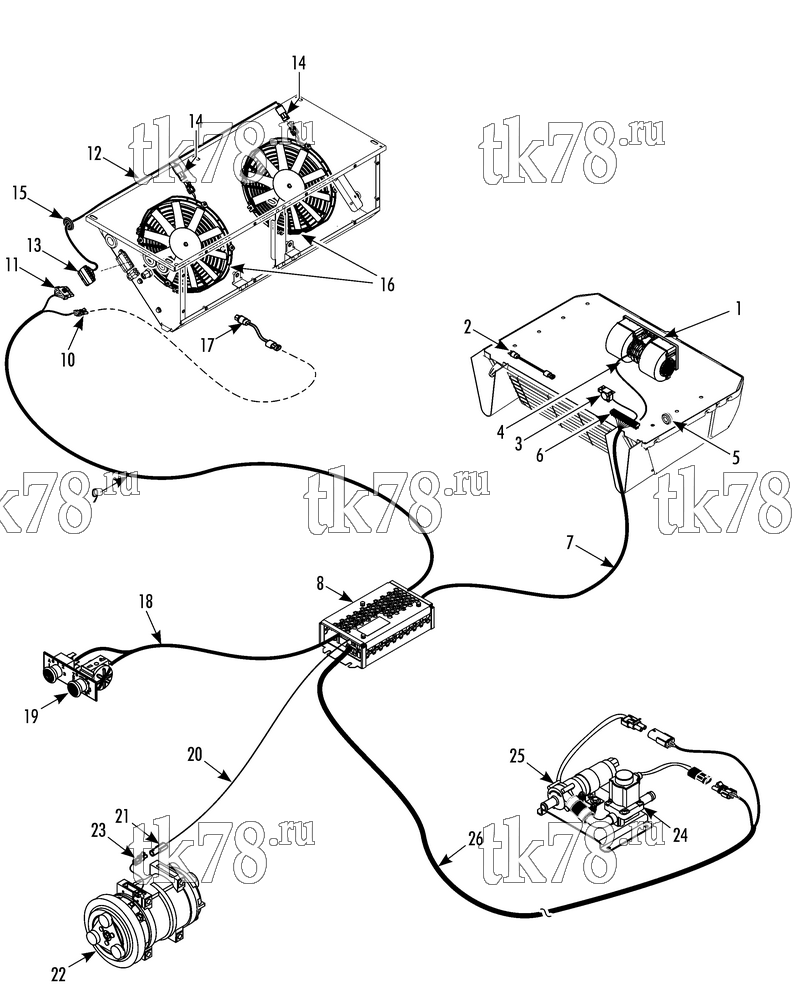

Установкa Thermo King SA-400 схема ELECTRICAL COMPONENTS w/ SKIRT MOUNT CONDENSER – 260D0
Обновление от: 6/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1823 | BLOWER (12V, see 260E8) | 1 | |
| 2 | 42-410 | SWITCH - lpco | 1 | |
| 41-5070 | SWITCH (see 115D14 for connectors) | 1 | ||
| 3 | 41-6844 | THERMOSTAT - freeze | 1 | |
| 4 | 42-598 | HARNESS - evaporator | 1 | |
| 42-422 | TERMINAL - fingrip (.25, yellow) | 1 | ||
| 42-423 | TERMINAL - fingrip (.25, male) | 2 | ||
| 41-4850 | TERMINAL - fingrip (.25, blue) | 4 | ||
| 5 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 6 | 42-421 | BLOCK - terminal (12 position) | 1 | |
| 55-9098 | RIVET - terminal block | 3 | ||
| 7 | 42-415 | HARNESS - evaporator to control panel (4 m) | 1 | |
| 42-412 | HARNESS - evaporator to control panel (11 m) | 1 | ||
| 41-5243 | TERMINAL - fingrip (14-16 ga) | 2 | ||
| 41-5244 | TERMINAL - fingrip (10-12 ga) | 6 | ||
| 8 | NSS | CONTROL PANEL (258F7) | 1 | |
| 9 | 42-413 | HARNESS - condenser (11 m) | 1 | |
| 42-414 | HARNESS - condenser (15 m) | 1 | ||
| 41-5244 | TERMINAL - fingrip (10-12 ga) | 5 | ||
| 42-424 | TERMINAL - fingrip (22-18 ga) | 2 | ||
| 10 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 11 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 41-8207 | TERMINAL - female (12 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 6 | ||
| 12 | 42-599 | HARNESS - condenser fans | 1 | |
| 13 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 44-7812 | PLUG - cavity (green) | 2 | ||
| 14 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 10 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 10 | ||
| 15 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 16 | 42-766 | FAN (12V, see 260E7) | 2 | |
| 17 | 42-409 | SWITCH - hpco | 1 | |
| 41-5070 | SWITCH - hpco (see 115D14 for connectors) | 1 | ||
| 18 | 42-419 | HARNESS - driver panel (4 m) | 1 | |
| 42-418 | HARNESS - driver panel (10 m) | 1 | ||
| 42-420 | HARNESS - driver panel (14 m) | 1 | ||
| 41-3855 | CONNECTOR - female (10-pin) | 1 | ||
| 41-4247 | RECEPTACLE - female (18 ga) | 7 | ||
| 41-4248 | RECEPTACLE - female (16-14 ga) | 2 | ||
| 42-424 | TERMINAL - fingrip (22-18 ga) | 9 | ||
| 19 | NSS | TEMPERATURE - control (see 249E7) | 1 | |
| 20 | 41-5077 | HARNESS - control panel to compressor (10 m) | 1 | |
| 41-8198 | HARNESS - control panel to compressor (18 m) | 1 | ||
| 41-5243 | TERMINAL - fingrip (14-16 ga) | 1 | ||
| 21 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 22 | NSS | COMPRESSOR (see 260D8) | 1 | |
| 23 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 1 | ||
| 44-8681 | SEAL - cable (red) | 1 | ||
| 24 | 61-3507 | VALVE - solenoid (coolant, 12V, see 260E9) | 1 | |
| 25 | 41-2233 | PUMP - coolant (see 260E9) | 1 | |
| 26 | 41-5076 | HARNESS - control panel to coolant pump | 1 | |
| 41-5243 | TERMINAL - fingrip (14-16 ga) | 1 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 16-14 ga) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 |
