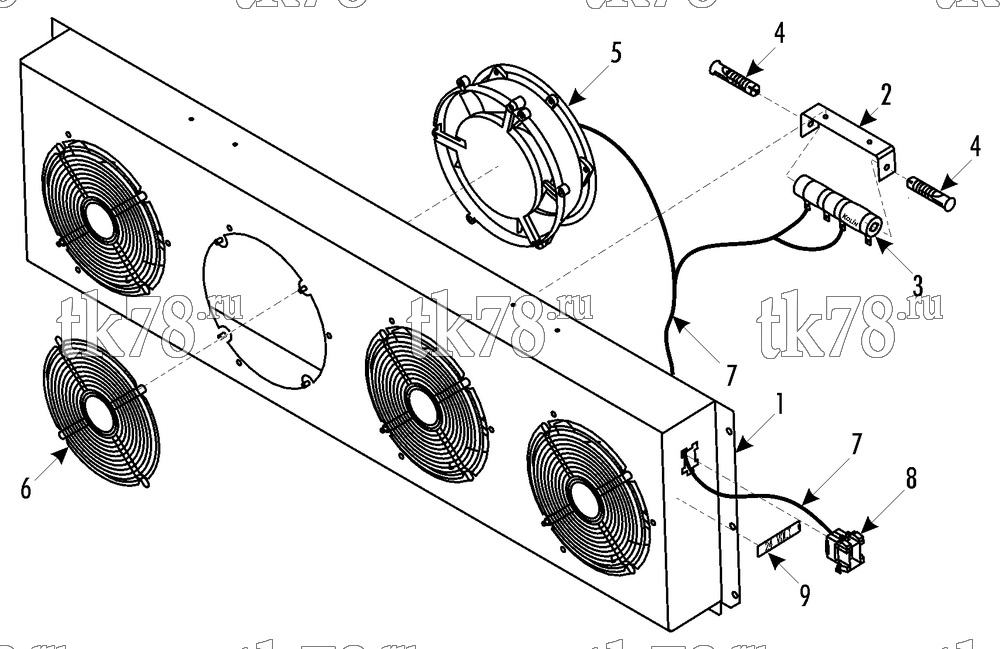

Установкa Thermo King Roof Heater PATRIJS схема FAN GROUP – 210C8
Обновление от: 1/30/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7417 | PLATE - fans | 1 | |
| 55-7409 | SCREW - plate | 9 | ||
| 55-7171 | LOCKWASHER | 9 | ||
| 55-7089 | FLATWASHER | 9 | ||
| 51-1454 | NUT - self clinching | 9 | ||
| 2 | 92-5533 | BRACKET - resistor | 2 | |
| 3 | 41-7150 | RESISTOR | 2 | |
| 51-1455 | SCREW - resistor | 4 | ||
| 4 | 51-1456 | DOWEL - plastic | 4 | |
| 5 | 78-1506 | FAN | 4 | |
| 55-7664 | SCREW - fan | 12 | ||
| 55-7369 | LOCKWASHER | 12 | ||
| 51-1452 | NUT - self clinching | 12 | ||
| 6 | 78-1515 | GUARD - fan | 4 | |
| 51-1457 | STUD - self-clinching | 16 | ||
| 55-7697 | FLATWASHER | 16 | ||
| 55-7369 | LOCKWASHER | 16 | ||
| 55-7698 | NUT | 16 | ||
| 7 | 41-7151 | HARNESS | 1 | |
| 8 | 41-5943 | CONNECTOR - male | 1 | |
| 9 | 99-2477 | NAMEPLATE - 24 Volt | 1 |
