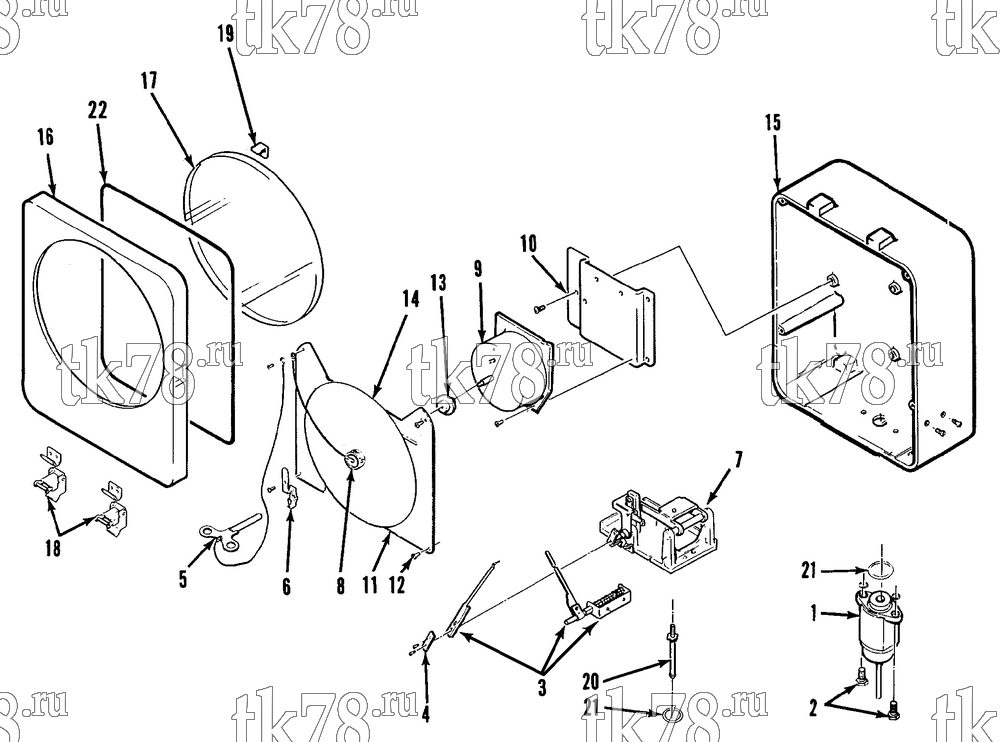

Установкa Thermo King Recording Themostat & Thermometer схема THERMOMETER - 7 DAY – 93G12
Обновление от: 1/23/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1700 | THERMOMETER - recording (7 day) | 1 | ||
| 1 | 44-2339 | ELEMENT - thermo (3/8 od, 14 in lg bulb, 10 ft capillary) | 1 | |
| 44-5644 | ELEMENT - thermo (1/2 od, 7.5 in lg bulb, 10 ft capillary) | 1 | ||
| 44-8988 | ELEMENT (35 ft) | 1 | ||
| 44-8989 | ELEMENT (65 ft) | 1 | ||
| 2 | 55-3465 | SCREW - element | 2 | |
| 3 | 91-2205 | KIT - stylus | 1 | |
| 4 | 99-5001 | PLATE - stylus | 1 | |
| 55-4340 | SCREW - pen | 1 | ||
| 5 | 99-5155 | KEY - clock | 1 | |
| 6 | 99-5153 | CLIP - key | 1 | |
| 7 | 44-5127 | MECHANISM | 1 | |
| 55-4351 | SCREW - mechanism | 1 | ||
| 8 | 55-4586 | NUT & CHAIN | 1 | |
| 9 | 44-2871 | CHART - drive (7 day) | 1 | |
| 10 | 99-5161 | STAND - chart drive | 1 | |
| 11 | 44-4261 | PLATEN | 1 | |
| 12 | 55-4409 | SCREW - platen | 4 | |
| 13 | 44-5205 | FLANGE - chart drive | 1 | |
| 14 | 203-285 | CHART - recording (7 day, C) | 1 | |
| 203-178 | CHART - recording (7 day, F) | 1 | ||
| 15 | 99-5157 | CASE - thermostat | 1 | |
| 16 | 44-4520 | COVER - assembly | 1 | |
| 17 | 99-5288 | GLASS - cover | 1 | |
| 18 | 99-6642 | CATCH - cover | 2 | |
| 19 | 99-5160 | HOLDER - glass | 6 | |
| 55-4410 | SCREW - holder | 6 | ||
| 20 | 99-5002 | PUSHROD | 1 | |
| 55-4349 | SCREW - pushrod | 1 | ||
| 21 | 33-1314 | O-RING | 2 | |
| 22 | 33-1377 | GASKET | 1 |
