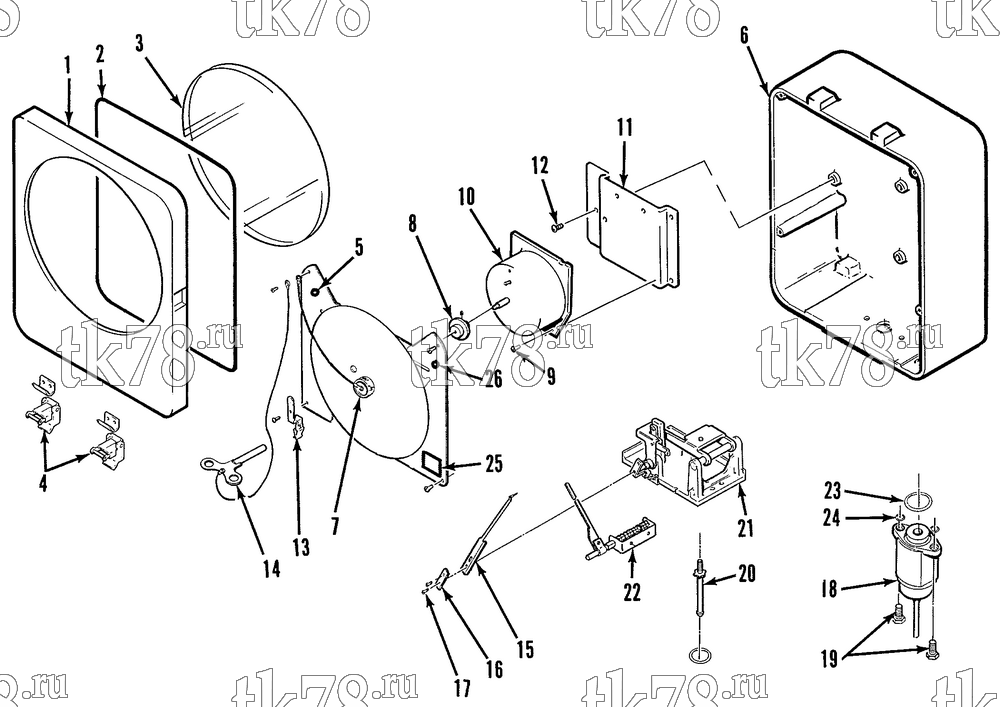

Установкa Thermo King Recording Themostat & Thermometer схема RECORDING THERMOMETER ASSEMBLY - 31 DAY – 73B13
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1704 | THERMOMETER - recording (31 day) | 1 | ||
| 1 | 44-4520 | COVER - assembly | 1 | |
| 2 | 99-5288 | GLASS - cover | 1 | |
| 3 | 33-1377 | GASKET - glass | 1 | |
| 4 | 99-6643 | LATCH - cover | 1 | |
| 55-5107 | SCREW - pivot | 2 | ||
| 55-5106 | WASHER | 1 | ||
| 55-5102 | WASHER | 1 | ||
| 99-6642 | CATCH | 1 | ||
| 55-5096 | SCREW - catch | 4 | ||
| 5 | 44-7034 | PROBE - supply air | 1 | |
| 6 | 99-9196 | CASE | 1 | |
| 7 | 99-9195 | NUT - chart drive (w/ cord) | 1 | |
| 8 | 44-4277 | FLANGE & SCREW - chart drive | 1 | |
| 9 | 55-5105 | SCREW - clock stand | 3 | |
| 10 | 44-2966 | DRIVE - chart (31 day, kit, incl flange & nut assy) | 1 | |
| 11 | 99-5161 | STAND - clock | 1 | |
| 12 | 55-5096 | SCREW - stand | 4 | |
| 13 | 99-9194 | CLIP - key | 1 | |
| 14 | 99-5155 | KEY - clock (w/ cord) | 1 | |
| 15 | 91-2205 | STYLUS | 1 | |
| 16 | 55-3465 | SCREW - element | 2 | |
| 17 | 55-5245 | SCREW - stylus | 1 | |
| 18 | 44-5644 | ELEMENT - thermo (1/2 od, 7.5 in lg bulb, 10 ft capillary) | 1 | |
| 19 | 55-3465 | SCREW - element | 1 | |
| 20 | 99-5002 | PUSHROD | 1 | |
| 21 | 44-7033 | MECHANISM - assembly | 1 | |
| 99-9197 | SPRING - over travel | 1 | ||
| 99-9198 | SPRING - extension | 1 | ||
| 22 | 99-9193 | LIFTER - pen assembly | 1 | |
| 55-5098 | SCREW - lifter | 2 | ||
| 23 | 33-1315 | O-RING - element | 1 | |
| 24 | 33-1314 | O-RING - flange screws | 2 | |
| 25 | 99-5756 | NAMEPLATE - starting time | 1 | |
| 26 | 44-7035 | PROBE - return air | 1 | |
| 203-219 | CHART (31 day, C) | A/R | ||
| 203-180 | CHART (31 day, F) | A/R |
