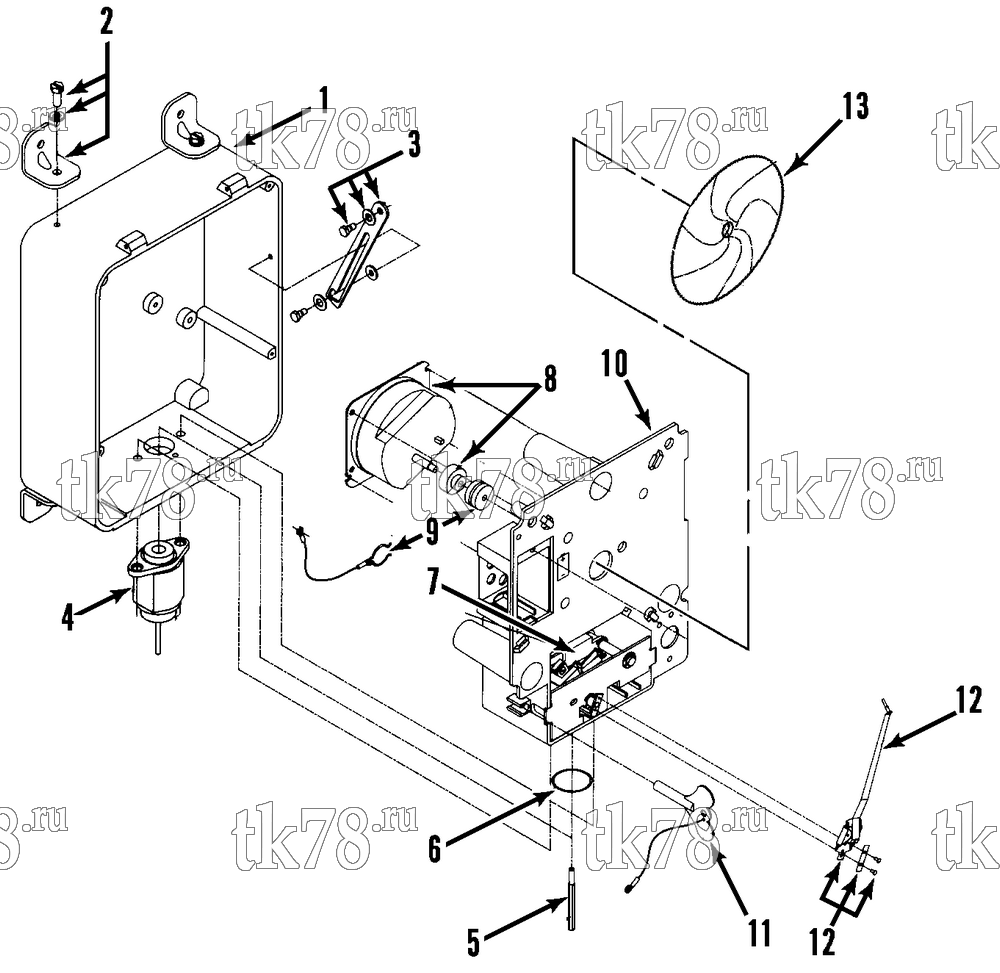

Установкa Thermo King Recording Themostat & Thermometer схема THERMOMETER - 7 DAY FAHRENHEIT – 141G12
Обновление от: 6/13/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1699 | THERMOMETER - recording (7 day, F, less cover) | 1 | ||
| 1 | 99-6641 | CASE - thermometer | 1 | |
| 2 | 91-8215 | BRACKET - mounting (set of 4, brackets & hardware) | 1 | |
| 3 | 91-8216 | LATCH - cover (incl hardware) | 1 | |
| 4 | 41-2221 | ELEMENT - thermo (1/2 od, 8 lg bulb, 5 ft capillary) | 1 | |
| 5 | 91-8217 | ROD - push | 1 | |
| 6 | 33-2962 | O-RING | 1 | |
| 7 | 41-2216 | MECHANISM | 1 | |
| 8 | 44-2816 | DRIVE - chart (7 day) | 1 | |
| 9 | 55-5099 | NUT, CLIP & CORD | 1 | |
| 10 | 41-2218 | PLATEN | 1 | |
| 11 | 55-8955 | KEY - winding | 1 | |
| 12 | 91-2205 | KIT - stylus | 1 | |
| 13 | 203-285 | CHART (7 day, -25 to +25 C, box of 50) | 1 |
