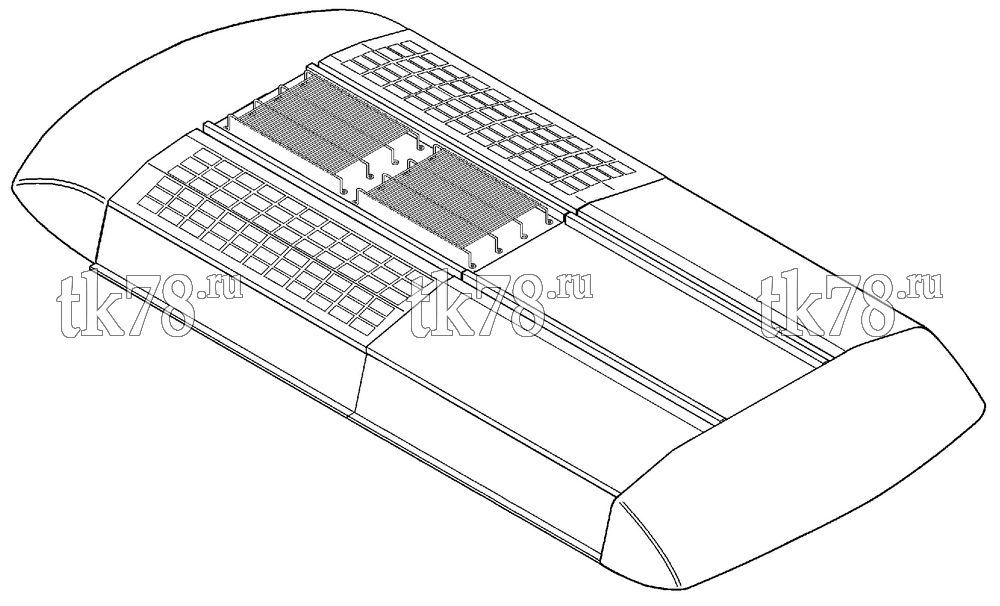

Установкa Thermo King RT-II Series схема RT-II SERIES REFERENCE SHEET – 3U87
Обновление от: 3/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 4034BR | RT-II 1001 | 3/93 | ||
| 4033BR | RT-II 1001 | 3/93 | ||
| 5206BR | RT-II 1001 | 11/95 | ||
| 5207BR | RT-II 1001 R12C | 11/95 | ||
| 5200BR | RT-II 1004 | 5/95 | ||
| 5213BR | RT-II 1001 R12 | 11/95 | ||
| 5042BR | RT-II 1010 | 11/95 | ||
| 5081BR | RT-II 1012 | 11/95 | ||
| 040530 | Condenser - RT-II 1004 | 3/98 | ||
| 040531 | Evaporator - RT-II 1004 R134a | 3/98 | ||
| 040532 | Condenser - RT-II 1000 R22 | 3/11 | ||
| 040540 | Evaporator - RT-II 1000 R22 | 3/11 | ||
| 040541 | Evaporator - RT-II 1001 R22 | 3/98 | ||
| 040542 | Evaporator - RT-II 1004 R22 | 3/98 | ||
| 040543 | Evaporator - RT-II 1010 R22 | 3/98 | ||
| 040545 | Evaporator - RT-II 1000 R134a | 3/98 | ||
| 040546 | Evaporator - RT-II 1001 R134a | 3/98 | ||
| 040547 | Evaporator - RT-II 1010 R134a | 3/98 | ||
| 040548 | Evaporator - RT-II 1012 R134a | 3/98 | ||
| 040782 | Condenser - RT-II M2 | 3/98 | ||
| 040783 | Evaporator - RT-II M2 1000 R134a | 3/98 | ||
| 040784 | Evaporator - RT-II M2 1004 R134a | 3/98 | ||
| 040785 | Evaporator - RT-II M2 1000 R22 | 3/98 | ||
| 040786 | Evaporator - RT-II M2 1004 R22 | 3/98 | ||
| 040795 | Evaporator - RT-II M2 1012 R134a | 3/98 | ||
| 040796 | Evaporator - RT-II M2 1012 R22 | 3/98 | ||
| 040836 | Compressor - MRT/RT-II M2 X426 | 3/98 | ||
| 040875 | Compressor - RT-II M2 9 Inch | 3/98 | ||
| 040876 | Compressor - RT-II M2 K-12 | 3/98 | ||
| 040877 | Compressor - RT-II M2/MRT K-12 | 3/98 | ||
| 040900 | IntelligAIRE w/ Diagnostics - RT-II | 3/98 | ||
| 040987 | Compressor - RT-II X430 7.75 Inch | 3/98 | ||
| 040988 | RT-II M2 X430 24V 9 Inch | 3/98 | ||
| 040989 | RT-II M2 X430 24V 12 Inch | 3/98 | ||
| 709797 | Alternator Kit - 125 Amp 24VDC | 3/98 | ||
| 714761 | Compressor Kit - X426 R22 | 3/11 | ||
| 714762 | Compressor Kit - X426 R134a | 3/98 | ||
| 714765 | Grille/Air Filter Kit | 3/98 | ||
| 714766 | Alternator Kit | 3/98 | ||
| 714768 | Compressor Kit - X426 RT-II | 3/98 | ||
| 714769 | Compressor Kit - X426 RT-II | 3/98 | ||
| 714780 | Hose Kit - RT-II 2 | 3/98 | ||
| 714781 | Hose Kit - RT-II 4 | 3/98 | ||
| 714782 | Water Pump Kit - RT-II | 3/98 | ||
| 714784 | Compressor Kit - X426 RT-II | 3/98 |
