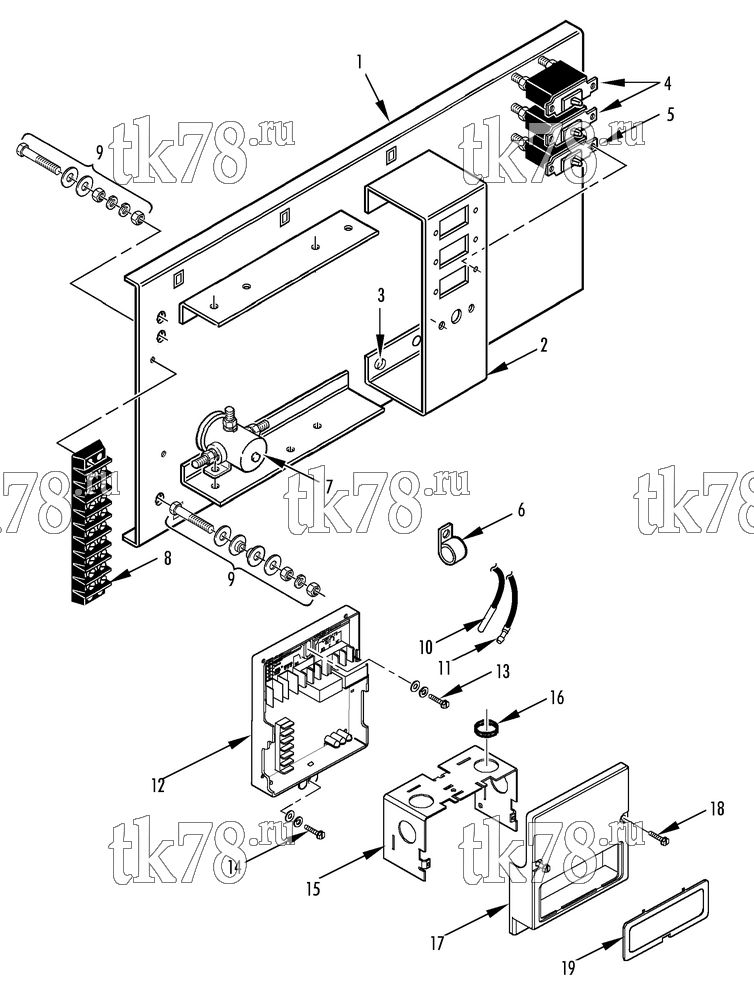

Установкa Thermo King RT-II Series схема CONTROL PANEL (RT-II 1012, R134a) – 147C6
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8861 | PANEL - control | 1 | |
| 55-6994 | SCREW - panel | 6 | ||
| 55-7170 | LOCKWASHER | 12 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 2 | 91-8862 | BRACKET - circuit breaker | 1 | |
| 3 | 55-6994 | SCREW - bracket | 2 | |
| 55-7170 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-7373 | NUT | 2 | ||
| 4 | 44-5560 | BREAKER - circuit (40 amp) | 2 | |
| 5 | 44-5494 | BREAKER - circuit (65 amp) | 1 | |
| 55-2997 | SCREW - circuit breaker | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 6 | 55-546 | CLAMP - sensor (0.250 dia) | 3 | |
| 55-2995 | SCREW - clamp (1/2 in lg) | 2 | ||
| 55-3099 | SCREW - clamp (5/8 in lg) | 1 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 7 | 44-2198 | SOLENOID - starter | 1 | |
| 41-1460 | DIODE | 1 | ||
| 55-3018 | SCREW - solenoid | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-2993 | LOCKWASHER | 2 | ||
| 55-3472 | NUT | 2 | ||
| 8 | 41-318 | BLOCK - terminal | 1 | |
| 55-4487 | SCREW - terminal block | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-5754 | NUT | 2 | ||
| 9 | 305-1654 | SCREW - terminal | 3 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 2 | ||
| 55-8693 | WASHER (nylon) | 2 | ||
| 55-7621 | LOCKWASHER (internal tooth) | 7 | ||
| 55-8955 | WASHER - special (brass) | 12 | ||
| 305-1653 | NUT (hex, brass) | 6 | ||
| 10 | 41-2611 | SENSOR - thermostat | 1 | |
| 11 | 44-9923 | SENSOR - thermistor | 1 | |
| 12 | 44-7476 | THERMOSTAT - pc board | 1 | |
| 13 | 55-3099 | SCREW - thermostat | 1 | |
| 14 | 55-3005 | SCREW - thermostat | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 15 | 91-2854 | PLATE - thermostat | 1 | |
| 16 | 33-415 | GROMMET | A/R | |
| 17 | 92-6976 | DOOR - thermostat | 1 | |
| 18 | 55-2869 | SCREW - door | 2 | |
| 19 | 91-2853 | DOOR - cover | 1 | |
| 55-7067 | SCREW - cover | 2 |
