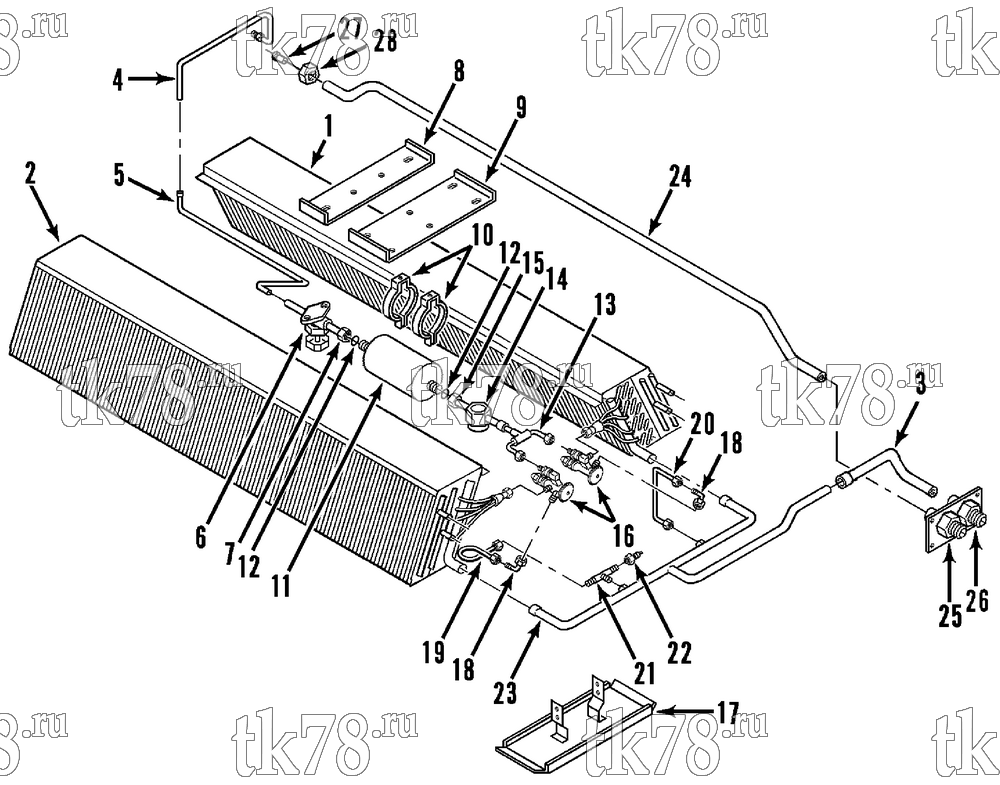

Установкa Thermo King RT-II Series схема REFRIGERATION EVAPORATOR (RT-II 1001) – 131E3
Обновление от: 3/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1420 | COIL - evaporator (curbside) | 1 | |
| 2 | 67-1419 | COIL - evaporator (roadside) | 1 | |
| 55-145 | SCREW - coil | 12 | ||
| 55-366 | LOCKWASHER | 12 | ||
| 55-411 | FLATWASHER | 12 | ||
| 55-291 | NUT | 12 | ||
| 3 | 66-8233 | TUBE - suction | 1 | |
| 4 | 66-8215 | TUBE - liquid | 1 | |
| 5 | 66-8212 | TUBE - liquid | 1 | |
| 6 | 66-1187 | VALVE - hand | 1 | |
| 7 | 55-6396 | NUT - o-ring fitting | 1 | |
| 55-6839 | SHOULDER (o-ring seal) | 1 | ||
| 55-8597 | SPACER - valve | 2 | ||
| 55-4770 | SCREW - valve | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-291 | NUT | 2 | ||
| 8 | 91-7256 | SUPPORT - valve | 1 | |
| 9 | 91-6878 | SUPPORT - dehydrator | 1 | |
| 55-145 | SCREW - support | 4 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-291 | NUT | 4 | ||
| 10 | 55-8602 | CLAMP - dehydrator | 2 | |
| 55-3018 | SCREW - bracket | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 2 | ||
| 11 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 12 | 33-566 | O-RING | 2 | |
| 13 | 66-8214 | TUBE - tee | 1 | |
| 14 | 66-1188 | INDICATOR - liquid | 1 | |
| 15 | 55-6838 | NUT (o-ring seal) | 1 | |
| 55-6837 | SHOULDER (o-ring seal) | 1 | ||
| 16 | 66-5858 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-7401 | ELEMENT - power | 1 | ||
| 99-500 | U-BOLT - valve | 2 | ||
| 55-2752 | NUT | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 17 | 91-5346 | BRACKET - expansion | 1 | |
| 18 | 55-1053 | ELBOW | 2 | |
| 19 | 66-8217 | TUBE - equalizer (roadside) | 1 | |
| 20 | 66-8216 | TUBE - equalizer (curbside) | 1 | |
| 21 | 55-184 | TEE | 1 | |
| 22 | 66-1911 | VALVE - port | 2 | |
| 23 | 66-8213 | TUBE - suction | 1 | |
| 55-184 | TEE | 1 | ||
| 66-874 | ADAPTER (1/4 flare) | 1 | ||
| 24 | 66-8232 | TUBE - discharge/suction | 1 | |
| 25 | 55-4185 | FITTING - suction (#20) | 1 | |
| 26 | 55-5355 | ADAPTER - discharge (#16) | 1 | |
| 27 | 55-8389 | ADAPTER - discharge (#16) | 1 | |
| 28 | 55-8598 | NUT (#16) | 1 | |
| 91-6858 | STRIP - sealing | 1 | ||
| 55-8387 | RIVET - tube assembly | 1 |
