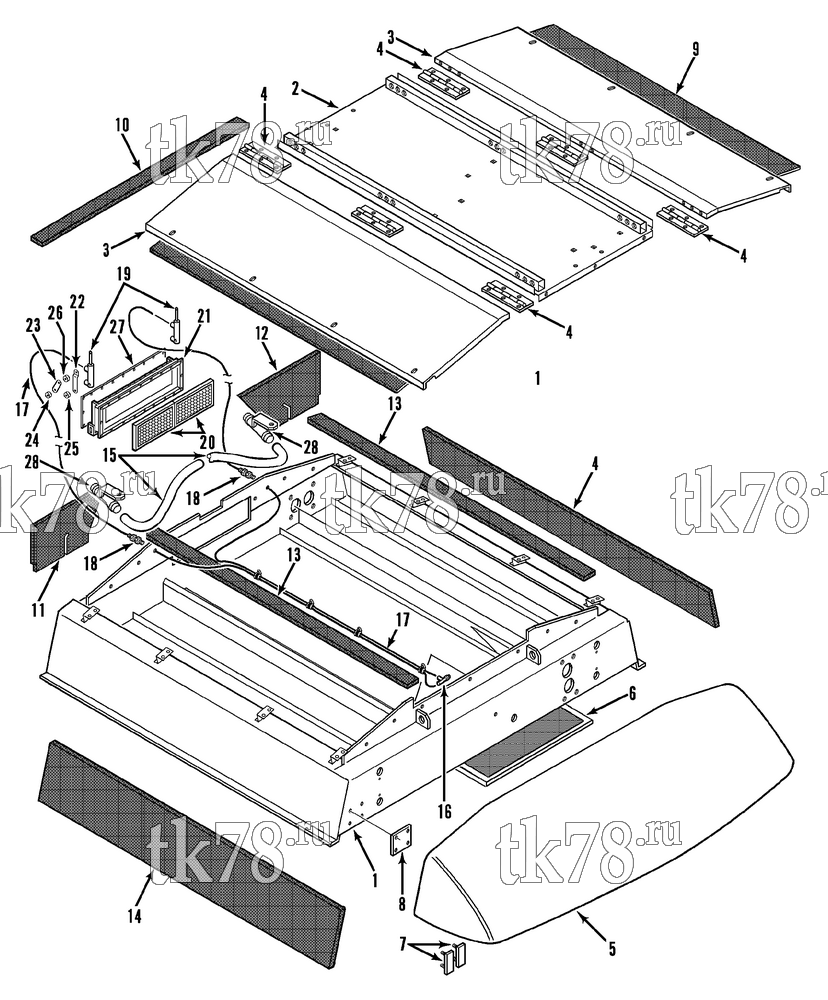

Установкa Thermo King RT-II Series схема EVAPORATOR FRAME & PANELS – 131D6
Обновление от: 5/25/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4947 | FRAME - evaporator (RT-II 1001) | 1 | |
| 98-4829 | FRAME - evaporator (RT-II 1004, R134a) | 1 | ||
| 98-4942 | FRAME - evaporator (RT-II 1010) | 1 | ||
| 98-4943 | FRAME (RT-II 1012) | 1 | ||
| 2 | 98-3916 | PANEL - top center | 1 | |
| 55-3018 | SCREW - panel | 12 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-2492 | NUT | 12 | ||
| 3 | 98-4830 | COVER - evaporator (RT-II 1004, RT-II 1010) | 2 | |
| 4 | 91-5347 | HINGE - cover | 6 | |
| 55-3021 | SCREW - hinge to center panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 12 | ||
| 55-3018 | SCREW - hinge to door | 12 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-4953 | NUT | 12 | ||
| 5 | 98-4826 | HOOD | 1 | |
| 91-2758 | NUTPLATE | 1 | ||
| 91-2759 | NUTPLATE | 1 | ||
| 55-2969 | SCREW - hood | 8 | ||
| 55-375 | LOCKWASHER | 8 | ||
| 55-402 | FLATWASHER | 8 | ||
| 6 | 91-7273 | FILTER - air | 1 | |
| 7 | 91-5330 | BOLTSTRIP - plate | 4 | |
| 55-2262 | RIVET | 8 | ||
| 8 | 91-5331 | PLATE | 2 | |
| 55-312 | NUT - plate | 8 | ||
| 55-790 | LOCKWASHER | 8 | ||
| 55-371 | FLATWASHER | 8 | ||
| 11-3005 | HOSE - drain | A/R | ||
| 9 | 33-2744 | INSULATION - door | 2 | |
| 10 | 33-2494 | INSULATION | 1 | |
| 11 | 33-2495 | INSULATION (roadside) | 1 | |
| 12 | 33-2496 | INSULATION (curbside) | 1 | |
| 13 | 33-2497 | INSULATION | 2 | |
| 14 | 33-2498 | INSULATION | 2 | |
| 15 | 12-419 | HOSE - drain (3/4 id x 25 ft, silicone) | A/R | |
| 55-2069 | CLAMP - drain | 8 | ||
| 16 | 55-7322 | TEE - swivel | 1 | |
| 17 | 11-7738 | HOSE - air (1/8 od) | A/R | |
| 18 | 55-7320 | FITTING - bulkhead | 2 | |
| 19 | 91-3741 | CYLINDER - air | 2 | |
| 55-3000 | SCREW - cylinder | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 6 | ||
| 20 | 11-7660 | FILTER - air | 2 | |
| 21 | 91-3873 | DOOR - fresh air | 1 | |
| 55-2991 | SCREW - door | 14 | ||
| 55-3008 | WASHER - sealing | 14 | ||
| 55-2001 | FLATWASHER | 14 | ||
| 55-4650 | NUT | 14 | ||
| 99-4976 | STRIP - gasket (door, 1/8 x 1/2) | A/R | ||
| 99-8429 | STRIP - gasket (1/8 x 3/4) | A/R | ||
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 22 | 91-3874 | LINK - arm | 2 | |
| 23 | 91-3875 | YOKE - linkage | 2 | |
| 24 | 55-7334 | SPACER | 2 | |
| 55-3027 | SCREW - spacer | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 25 | 55-7335 | SPACER | 2 | |
| 55-3029 | SCREW - spacer | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 26 | 55-7336 | SPACER | 2 | |
| 55-3027 | SCREW - spacer | 2 | ||
| 27 | 91-6875 | COVER | 1 | |
| 28 | 91-3740 | TUBE - drain | 2 | |
| 55-1587 | SCREW - tube | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 |
