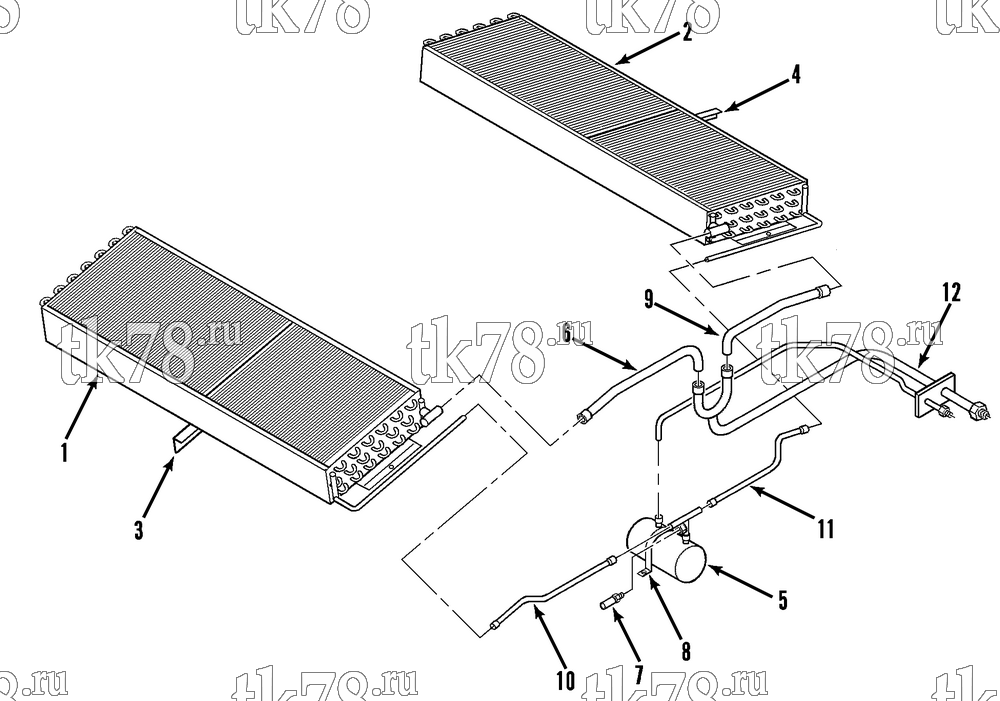

Установкa Thermo King RT-II Series схема REFRIGERATION COMPONENTS - CONDENSER – 131D1
Обновление от: 12/13/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1330 | COIL - condenser (roadside) | 1 | |
| 67-1334 | COIL - condenser (RT-II 1001) | 1 | ||
| 2 | 67-1331 | COIL - condenser (curbside) | 1 | |
| 67-1335 | COIL - condenser (RT-II 1001) | 1 | ||
| 33-2474 | GASKET - coil | A/R | ||
| 55-145 | SCREW - condenser coil | 12 | ||
| 55-366 | LOCKWASHER | 12 | ||
| 55-411 | FLATWASHER | 12 | ||
| 55-4974 | NUT | 12 | ||
| 3 | 91-7291 | SUPPORT - condenser | 1 | |
| 4 | 91-7292 | SUPPORT - condenser | 1 | |
| 55-3272 | RIVET - support | 6 | ||
| 5 | 67-1329 | TANK - receiver | 1 | |
| 55-1611 | ADAPTER - flare | 2 | ||
| 99-3060 | FITTING - saddle | 1 | ||
| 6 | 66-7402 | TUBE - tee to coil (roadside) | 1 | |
| 7 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 91-2719 | BRACKET - receiver tank | 1 | |
| 91-6859 | STRIP - neoprene | A/R | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-145 | SCREW - strap | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4974 | NUT | 2 | ||
| 9 | 66-7403 | TUBE - tee to coil (curbside) | 1 | |
| 10 | 66-7404 | TUBE - coil to tank (roadside) | 1 | |
| 11 | 66-7405 | TUBE - coil to tank (curbside) | 1 | |
| 12 | 66-6805 | TUBE - discharge | 1 | |
| 66-8206 | TUBE - discharge | 1 | ||
| 66-7959 | ADAPTER | 1 | ||
| 91-6858 | STRIP - gasket | 1 | ||
| 55-145 | SCREW - tube | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 |
