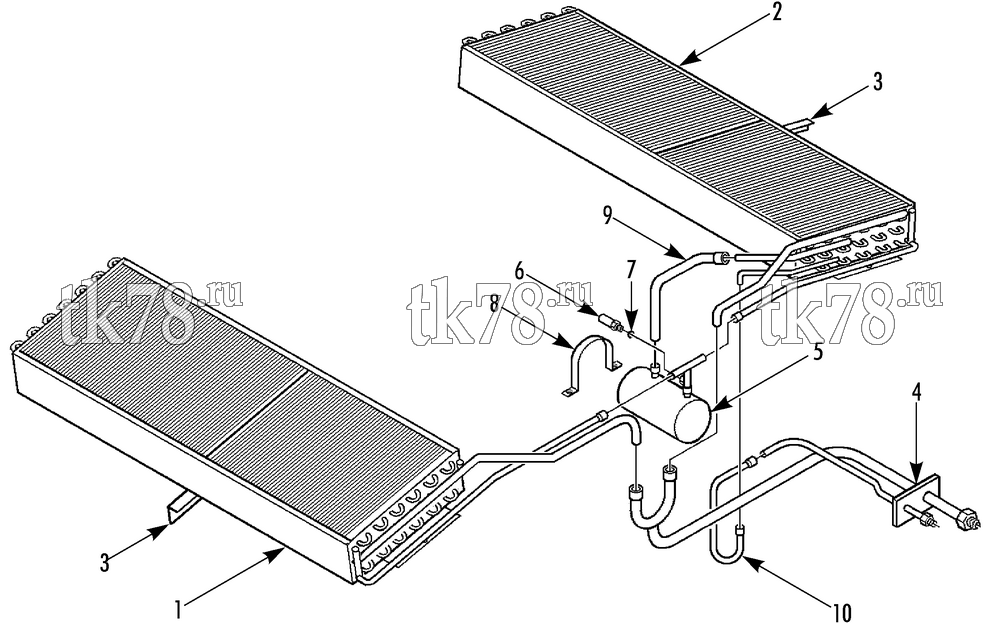

Установкa Thermo King RT-II Series схема REFRIGERATION CONDENSER (RT-II 1004 R134a) – 131C14
Обновление от: 3/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1295 | COIL - condenser (roadside) | 1 | |
| 2 | 67-1297 | COIL - condenser (curbside) | 1 | |
| 91-6858 | GASKET - coil (1/8 x 1/2) | 1 | ||
| 91-6857 | GASKET - coil (1/4 x 1/2) | 1 | ||
| 55-145 | SCREW - coil (1/4-20) | 20 | ||
| 55-366 | LOCKWASHER | 20 | ||
| 55-411 | FLATWASHER | 28 | ||
| 55-291 | NUT | 8 | ||
| 55-8387 | NUT - rivet | 12 | ||
| 55-2269 | SCREW - coil (#10-32) | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-2752 | NUT | 4 | ||
| 3 | 91-6860 | SUPPORT - coil | 2 | |
| 55-3272 | RIVET - support | 4 | ||
| 4 | 66-7958 | TUBE - inlet/outlet | 1 | |
| 55-145 | SCREW - tube | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-8387 | RIVET - nut | 4 | ||
| 91-6858 | GASKET - tube assembly | 1 | ||
| 5 | 67-1296 | TANK - receiver | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 33-1015 | O-RING - valve | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 91-2719 | BRACKET - receiver tank | 1 | |
| 33-2472 | STRIP - neoprene | A/R | ||
| 55-145 | SCREW - strap | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-4974 | NUT - captive | 2 | ||
| 9 | 66-7961 | TUBE - receiver to coil | 1 | |
| 10 | 66-7960 | TUBE - coil to tube | 1 |
