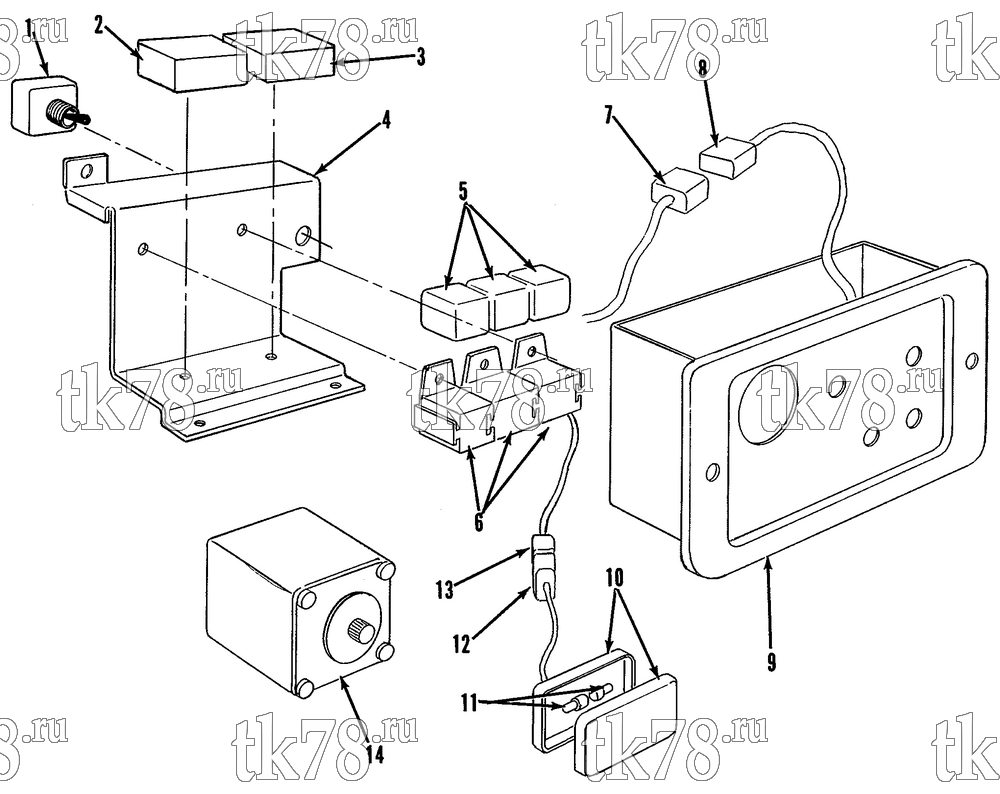

Установкa Thermo King RMU-II схема TEMPERATURE SENTRY COMPONENTS – 67B12
Обновление от: 6/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2894 | SWITCH - monitor | 1 | |
| 99-7498 | NAMEPLATE - switch | 1 | ||
| 44-3521 | DIODE | 1 | ||
| 2 | 44-6020 | TIMER - solid state | 1 | |
| 44-6021 | RESISTOR (1 meg ohm, 1/2 W) | 1 | ||
| 3 | 44-6022 | FLASHER - solid state | 1 | |
| 55-1230 | SCREW - timer & flasher | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 4 | 99-8279 | BRACKET - Temperature Sentry | 1 | |
| 5 | 44-9111 | RELAY | 3 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 6 | 44-5537 | SOCKET - relay | 3 | |
| 55-3150 | SCREW - socket | 2 | ||
| 55-664 | NUT - socket | 2 | ||
| 7 | 44-5827 | CONNECTOR - Temperature Sentry to switch panel | 1 | |
| 8 | 44-5814 | CONNECTOR - switch panel (4-pin, female) | 1 | |
| 9 | 45-1243 | PANEL - switch (M1, M2, M3, see 67B13) | 1 | |
| 45-1245 | PANEL - switch (M5, see 67B14) | 1 | ||
| 10 | 44-6240 | LIGHT & HARNESS | 1 | |
| 11 | 44-3711 | BULB | 2 | |
| 12 | 44-5620 | CONNECTOR | 1 | |
| 13 | 44-5219 | CONNECTOR | 1 | |
| 14 | N/A | THERMOSTAT (see 52B14) | 1 |
