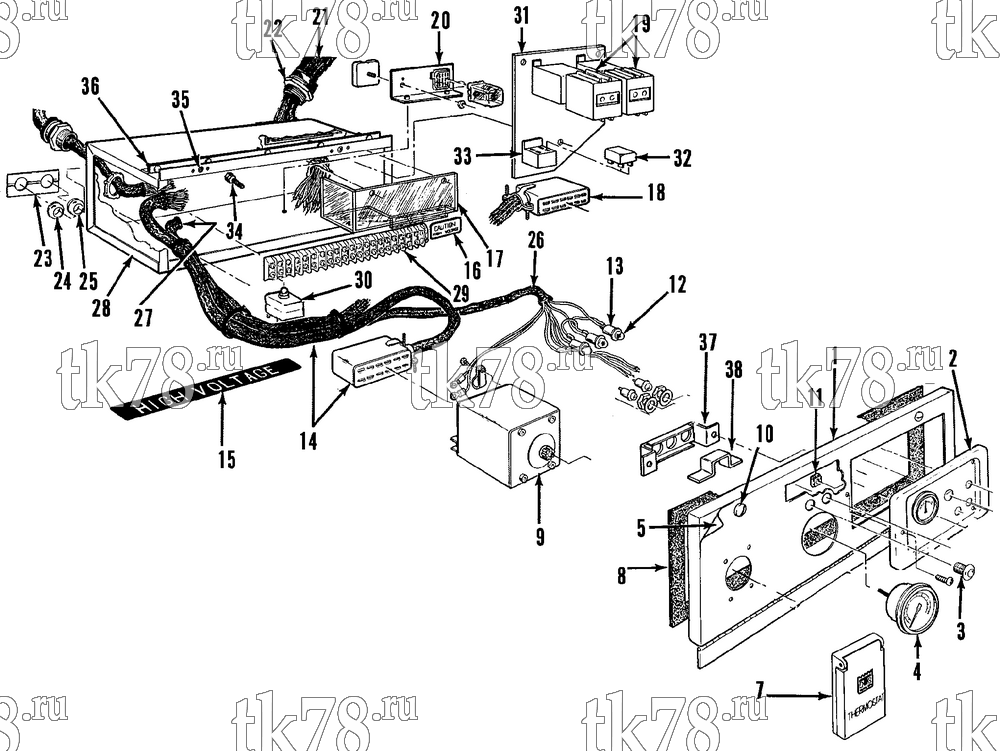

Установкa Thermo King RMU-II схема CONTROL BOX ASSEMBLY (RMU-II M5, M6, M7 & M8) – 67B1
Обновление от: 7/10/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1238 | PANEL - control (incl 2 thru 11) | 1 | |
| 99-6379 | COVER & HINGE - assembly | 1 | ||
| 99-7635 | NAMEPLATE - unit control | 1 | ||
| 2 | 45-1246 | PANEL - switch (see 67C14) | 1 | |
| 45-1294 | PANEL - switch (discharge air monitor) | 1 | ||
| 45-1245 | PANEL - switch (Temperature Sentry, see 67B14) | 1 | ||
| 3 | 44-5576 | LENS - indicator light (amber) | 1 | |
| 4 | 44-5985 | THERMOMETER | 1 | |
| 44-5896 | SENSOR | 1 | ||
| 5 | 99-7635 | NAMEPLATE | 1 | |
| 6 | 99-7278 | BRACKET - light | 1 | |
| 99-7374 | BAFFLE - light | 1 | ||
| 55-2497 | SCREW - light | 2 | ||
| 55-715 | LOCKWASHER | 2 | ||
| 55-295 | NUT | 2 | ||
| 7 | 99-5635 | COVER - thermostat (clear) | 1 | |
| 33-1373 | GASKET - cover | 1 | ||
| 55-2263 | SCREW - thermostat & cover | 4 | ||
| 55-2718 | LOCKWASHER | 4 | ||
| 8 | 33-1428 | GASKET - panel | 1 | |
| 9 | 45-1564 | THERMOSTAT (Thermoguard) | 1 | |
| 10 | 55-4580 | SCREW - panel | 2 | |
| 55-4510 | WASHER - retaining | 2 | ||
| 11 | 55-4974 | NUT - switch panel | 2 | |
| 12 | 44-3035 | BULB - indicator light | 4 | |
| 13 | 41-6310 | SOCKET - indicator light (cool-defrost-heat) | 3 | |
| 44-5654 | TERMINAL - bulb | 3 | ||
| 14 | 44-6280 | HARNESS - assembly (TG w/ FS) | 1 | |
| 15 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 16 | 99-5908 | NAMEPLATE - Caution High Voltage | 1 | |
| 17 | 99-8232 | COVER - high voltage | 1 | |
| 55-736 | SCREW - cover | 3 | ||
| 18 | 44-5214 | SOCKET - switch panel | 1 | |
| 44-5220 | COVER - connector | 1 | ||
| 55-4396 | SCREW - cover | 2 | ||
| 99-6381 | NAMEPLATE - cover | 1 | ||
| 19 | 44-5807 | CONTACTOR - evaporator fan | 2 | |
| 44-4286 | COIL | 2 | ||
| 44-5994 | DIODE | 2 | ||
| 55-3551 | SCREW - contactor | 4 | ||
| 55-3519 | NUT | 4 | ||
| 20 | 99-6328 | BRACKET - Fuelsaver | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 21 | 44-6585 | HARNESS - evaporator | 1 | |
| 22 | 55-3831 | CONNECTOR - cable | 1 | |
| 55-2635 | NUT | 1 | ||
| 23 | 99-6382 | PLATE - clamp (grommet) | 1 | |
| 55-408 | SCREW - plate | 4 | ||
| 55-5292 | NUT | 4 | ||
| 24 | 33-612 | GROMMET (7/8 id) | 1 | |
| 25 | 33-749 | GROMMET (1/2 id) | 1 | |
| 26 | 44-5806 | HARNESS - main (incl 13 & 18) | 1 | |
| 44-5719 | CONNECTOR - socket (8-pin) | 1 | ||
| 44-5219 | CONNECTOR (2-pin) | 1 | ||
| 27 | 44-5733 | HARNESS - alternator (3 phase) | 1 | |
| 28 | 99-7587 | BOX - only | 1 | |
| 55-3150 | SCREW - panel to box | 5 | ||
| 55-664 | NUT | 5 | ||
| 55-1823 | CLAMP - harness | 1 | ||
| 29 | 44-3551 | BOARD - terminal | 1 | |
| 44-2915 | STRIP - jumper | 1 | ||
| 55-1385 | SCREW - terminal board | 2 | ||
| 55-5077 | NUT | 2 | ||
| 99-7588 | MARKSTRIP | 1 | ||
| 30 | 44-5808 | BREAKER - circuit (manual reset) | 1 | |
| 44-2739 | NAMEPLATE - Push to Reset | 1 | ||
| 55-5292 | NUT - bracket | 1 | ||
| 55-736 | SCREW - bracket | 1 | ||
| 31 | 99-7589 | BRACKET - contactor | 1 | |
| 55-508 | SCREW - bracket | 3 | ||
| 32 | 44-9111 | RELAY - mini | 1 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 33 | 44-5537 | SOCKET - relay | 1 | |
| 55-2731 | SCREW - socket | 1 | ||
| 34 | 55-3506 | SCREW - ground (brass) | 2 | |
| 55-401 | FLATWASHER (brass) | 6 | ||
| 55-3496 | LOCKWASHER (internal/external, bronze) | 2 | ||
| 55-1852 | LOCKWASHER (internal tooth, bronze) | 4 | ||
| 55-346 | NUT (brass) | 4 | ||
| 35 | 55-4974 | NUT - captive | 2 | |
| 36 | 99-6237 | BOLTSTRIP | 1 | |
| 55-1726 | RIVET | 4 | ||
| 55-4118 | NUT - box (1/4-20) | 5 | ||
| 55-141 | SCREW - box (5/16-18 x 3/4) | 3 | ||
| 55-4967 | NUT (5/16-18) | 3 | ||
| 99-3427 | MOUNT - cable tie | 8 | ||
| 55-2270 | RIVET - blind | 8 | ||
| 37 | 99-7278 | BRACKET - light | 1 | |
| 38 | 99-7374 | BAFFLE - light | 1 |
