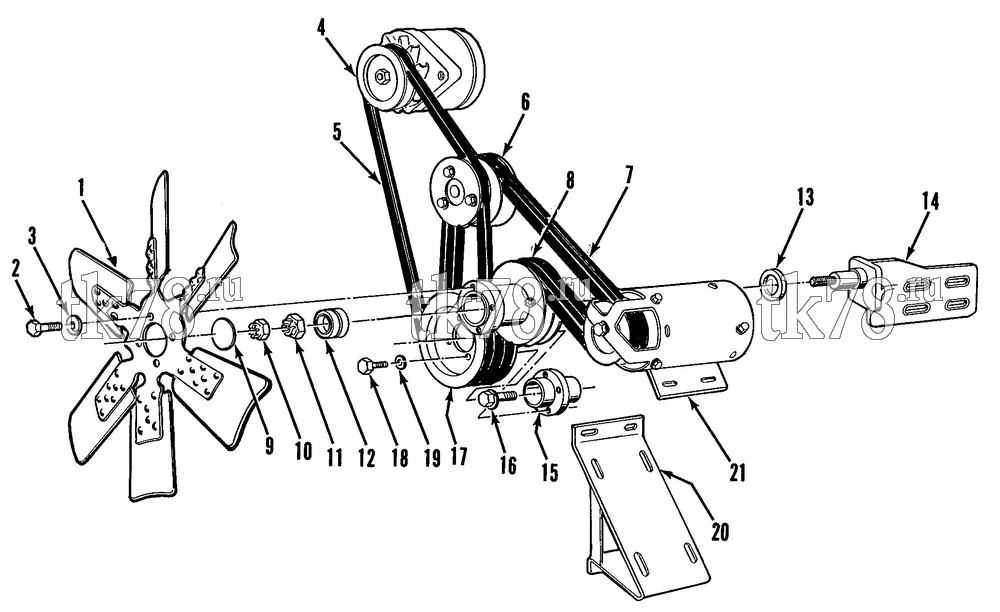

Установкa Thermo King RMU-II схема FAN, PULLEYS, BELTS & BRACKETS – 62C2
Обновление от: 3/18/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-182 | FAN | 1 | |
| 2 | 55-145 | SCREW - fan | 4 | |
| 3 | 55-421 | LOCKWASHER - fan | 4 | |
| 4 | 77-762 | PULLEY - alternator (35 amp) | 1 | |
| 5 | 78-471 | BELT | 1 | |
| 10-78-471 | Ремень генератора и водяной помпы, SB-I/II | 1 840 ₽ |
|
|
| PP-78-471 | Ремень генератора и водяной помпы, SB-I/II | 960 ₽ |
|
|
| 6 | 77-1381 | PULLEY - water pump | 1 | |
| 55-172 | SCREW - pulley | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 7 | 78-519 | BELT (set of 2, M2) | 1 | |
| 78-466 | BELT (set of 2, M1 & M3) | 1 | ||
| 8 | 77-1095 | PULLEY (incl 9-14) | 1 | |
| 77-1096 | PULLEY (only) | 1 | ||
| 55-2714 | FITTING - grease | 1 | ||
| 9 | 77-1093 | PLUG - expansion | 1 | |
| 10 | 55-4005 | NUT (1/2-13) | 1 | |
| 11 | 55-2663 | NUT (5/8-11) | 1 | |
| 12 | 77-889 | BEARING - pulley (incl spacer) | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 13 | 77-890 | SEAL | 1 | |
| 14 | 99-3598 | BRACKET - pulley | 1 | |
| 55-129 | SCREW - bracket | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 15 | 77-1366 | BOSS - pulley | 1 | |
|
10-77-1366 | Шкив, Isuzu C-201 | 9 100 ₽ |
|
| 16 | 10-256 | KIT - bolt (pulley boss) | 1 | |
| 17 | 77-1382 | PULLEY - crankshaft | 1 | |
| 18 | 55-129 | SCREW - pulley | 4 | |
| 19 | 55-375 | LOCKWASHER | 4 | |
| 20 | 99-4516 | BRACKET - alternator (230V) | 1 | |
| 55-172 | SCREW - bracket | 3 | ||
| 55-312 | NUT | 3 | ||
| 55-371 | WASHER | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 55-5090 | SCREW (10 mm) | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 55-3994 | WASHER - special | 2 | ||
| 21 | 104-412 | ALTERNATOR (230V, RMU-II M2, see 51G2) | 1 | |
| 104-409 | ALTERNATOR (230V, RMU-II M1, M3) | 1 | ||
| 55-129 | SCREW - alternator | 4 | ||
| 55-2298 | WASHER - special | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 99-3198 | NUTSTRIP - alternator | 2 |
