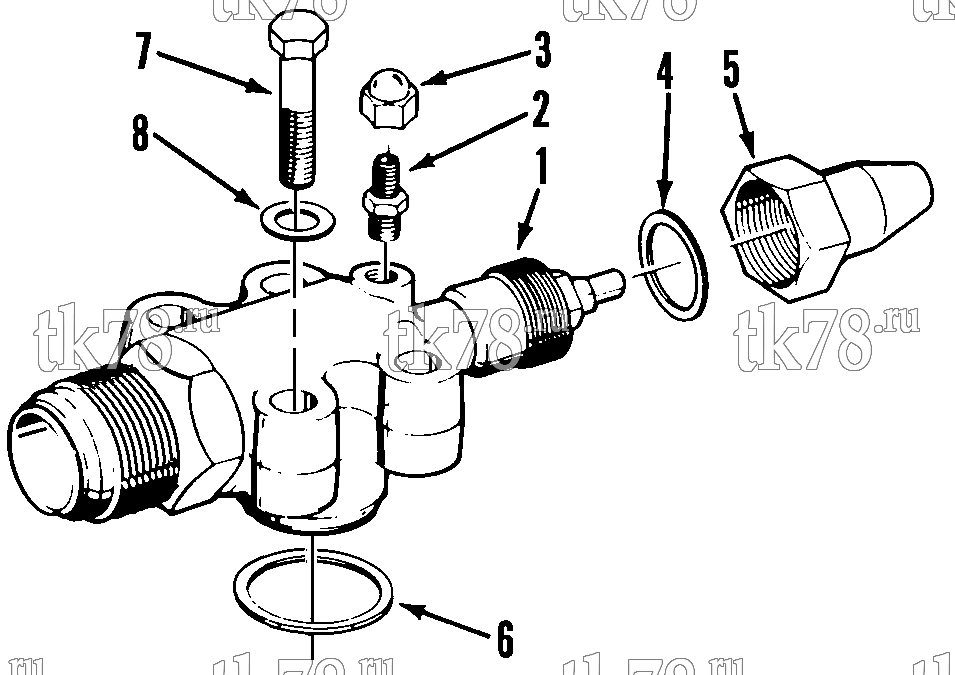

Установкa Thermo King RMU-II схема SUCTION SERVICE VALVE – 57F1
Обновление от: 3/25/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-3780 | VALVE - suction | 1 | |
| 2 | 55-459 | COUPLING | 1 | |
| 3 | 55-1983 | CAP - flare | 1 | |
| 4 | 33-3007 | GASKET - cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 5 | 66-341 | CAP - suction valve | 1 | |
| 6 | 33-215 | GASKET - service valve | 1 | |
|
10-33-215 | Прокладка | 590 ₽ |
|
| 7 | 55-1993 | SCREW - valve | 4 | |
| 30-55-1993 | Болт | 680 ₽ |
|
|
| 8 | 55-896 | FLATWASHER | 4 |
