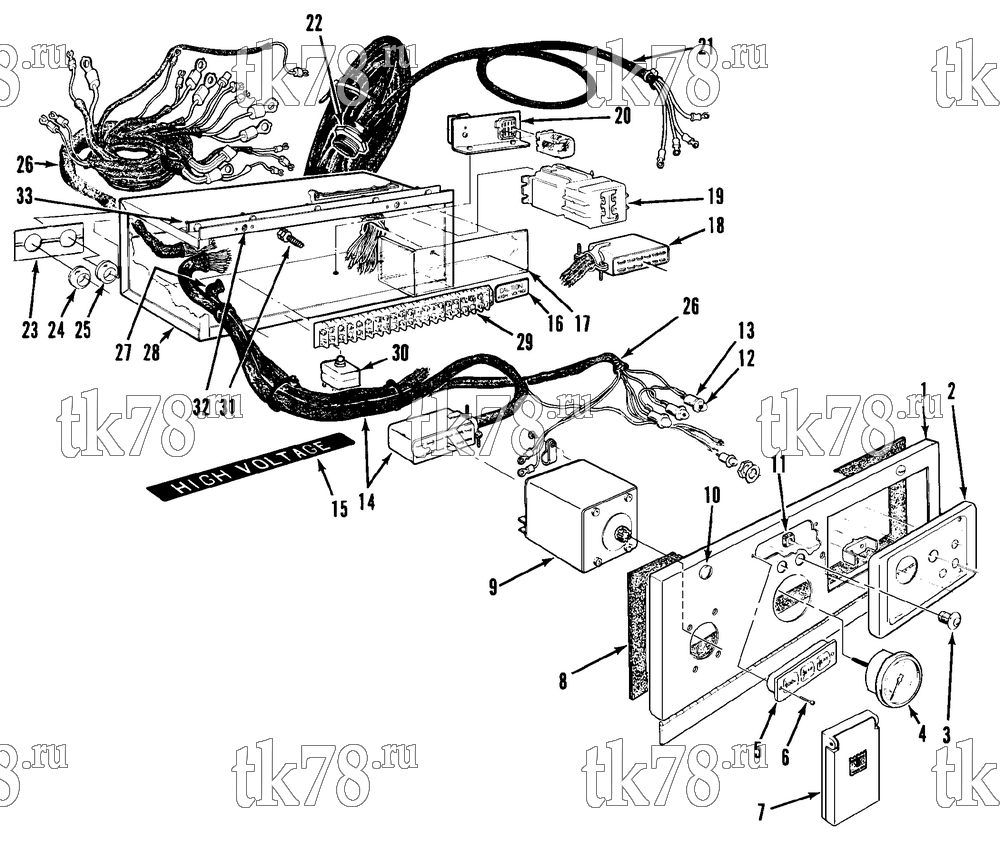

Установкa Thermo King RMU-II схема CONTROL BOX ASSEMBLY (RMU-II M1, M2 & M3) – 52D13
Обновление от: 7/10/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1044 | BOX - control | 1 | ||
| 1 | 45-1045 | PANEL | 1 | |
| 99-6379 | COVER - switch (see 51F1) | 1 | ||
| 2 | 45-1247 | PANEL | 1 | |
| 45-1243 | PANEL - switch (see 67B13) | 1 | ||
| 3 | 44-5576 | LENS - light (amber) | 1 | |
| 4 | 44-5985 | THERMOMETER | 1 | |
| 44-5896 | SENSOR | 1 | ||
| 5 | 44-3089 | LIGHT - bulb | 1 | |
| 6 | 55-2497 | SCREW - light | 2 | |
| 55-715 | LOCKWASHER | 2 | ||
| 55-295 | NUT | 2 | ||
| 7 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 55-2263 | SCREW - cover | 4 | ||
| 55-2718 | WASHER | 4 | ||
| 8 | 33-1428 | GASKET - panel | 1 | |
| 9 | 45-1564 | THERMOSTAT | 1 | |
| 10 | 55-4580 | SCREW - panel | 2 | |
| 55-4510 | WASHER | 2 | ||
| 11 | 55-4974 | NUT - captive | 2 | |
| 12 | 44-3035 | BULB - indicator light | 4 | |
| 13 | 41-6310 | SOCKET - light | 3 | |
| 44-5654 | TERMINAL - bulb | 3 | ||
| 14 | 44-5804 | HARNESS (TG w/ Fuelsaver) | 1 | |
| 15 | 99-2662 | NAMEPLATE - Caution High Voltage | 1 | |
| 16 | 99-5908 | NAMEPLATE - Caution High Voltage | 1 | |
| 17 | 99-6236 | COVER - high voltage | 1 | |
| 55-736 | SCREW - cover | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 18 | 44-5214 | SOCKET - switch panel | 1 | |
| 44-5220 | COVER - connector | 1 | ||
| 55-4396 | SCREW - cover | 2 | ||
| 19 | 44-5807 | CONTACTOR | 1 | |
| 44-4286 | COIL (12VAC) | 1 | ||
| 55-2366 | SCREW - controller | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-1516 | NUT | 2 | ||
| 20 | 99-5977 | BRACKET - Fuelsaver | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 21 | 44-5805 | HARNESS - evaporator | 1 | |
| 22 | 55-3831 | CONNECTOR | 1 | |
| 55-2635 | NUT | 1 | ||
| 23 | 99-6382 | PLATE - grommet | 2 | |
| 55-736 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-664 | NUT | 4 | ||
| 24 | 33-1073 | GROMMET (7/8 id) | 1 | |
| 25 | 33-749 | GROMMET (1/2 id) | 1 | |
| 26 | 44-5806 | HARNESS - main | 1 | |
| 44-5719 | CONNECTOR (male) | 1 | ||
| 44-5219 | CONNECTOR | 1 | ||
| 27 | 44-5733 | HARNESS - alternator | 1 | |
| 28 | 98-2239 | BOX - control | 1 | |
| 55-3150 | SCREW - panel | 5 | ||
| 55-664 | NUT | 5 | ||
| 55-1823 | CLAMP | 1 | ||
| 29 | 44-3917 | BOARD - terminal | 1 | |
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-2915 | STRIP - jumper | 1 | ||
| 55-1385 | SCREW - terminal block | 2 | ||
| 55-686 | NUT | 2 | ||
| 99-6383 | NAMEPLATE | 1 | ||
| 30 | 44-5808 | BREAKER - circuit | 1 | |
| 44-2739 | NAMEPLATE - Push to Reset | 1 | ||
| 55-736 | SCREW - breaker | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 55-664 | NUT | 1 | ||
| 31 | 55-3506 | SCREW - ground | 2 | |
| 55-401 | FLATWASHER | 6 | ||
| 55-3496 | LOCKWASHER | 2 | ||
| 55-1852 | LOCKWASHER (internal tooth) | 4 | ||
| 55-346 | NUT | 4 | ||
| 32 | 55-4974 | NUT - captive | 2 | |
| 33 | 99-6237 | BOLTSTRIP | 1 | |
| 55-1726 | RIVET - boltstrip | 4 | ||
| 55-291 | NUT | 5 | ||
| 55-366 | LOCKWASHER | 5 | ||
| 55-411 | FLATWASHER | 5 | ||
| 55-141 | SCREW - box | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 55-312 | NUT | 3 | ||
| 99-3427 | MOUNT - cable | 7 | ||
| 55-2270 | RIVET - mount | 7 |
