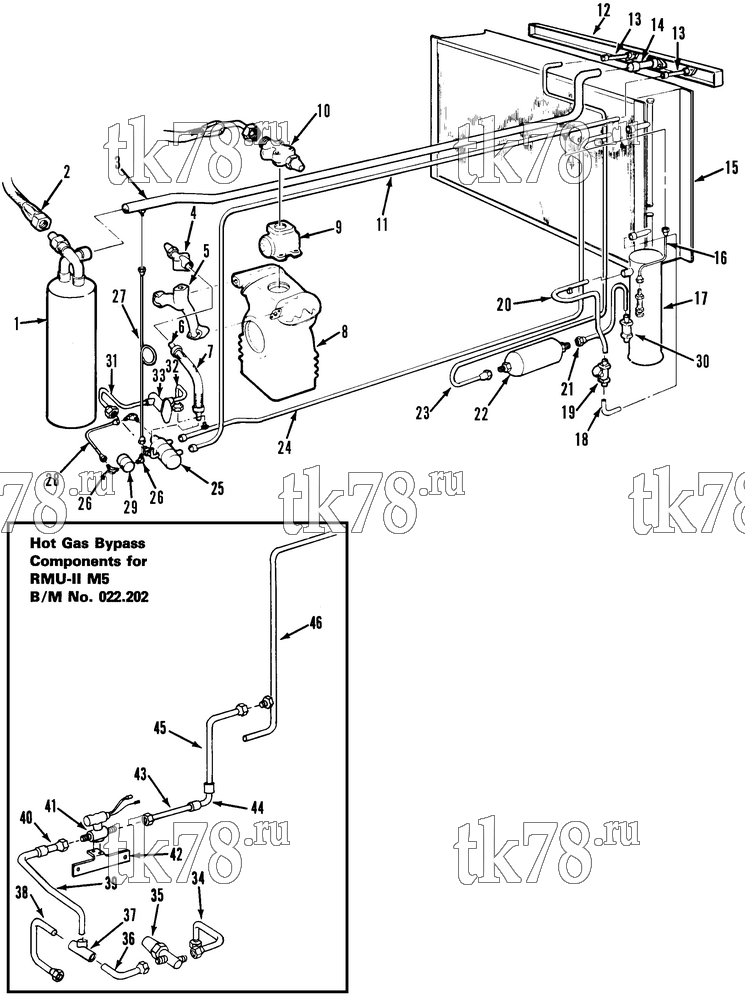

Установкa Thermo King RMU-II схема REFRIGERATION COMPONENTS – 52D1
Обновление от: 12/11/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-622 | TANK - accumulator | 1 | |
| 55-2969 | SCREW - tank | 4 | ||
| 2 | 66-4284 | VIBRASORBER - suction | 1 | |
|
10-66-4284 | Трубка армированная всасывающая, Nut & Nut 28in | 35 520 ₽ |
|
| 33-544 | O-RING | 2 | ||
| 3 | 66-3513 | TUBE - suction | 1 | |
| 4 | 66-129 | VALVE - service (discharge, see 57F1) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 5 | 22-301 | MANIFOLD - discharge | 1 | |
| 6 | 66-3514 | TUBE - vibrasorber to valve | 1 | |
| 7 | 66-1224 | VIBRASORBER - discharge | 1 | |
|
10-66-1224 | Вибросорбер нагнетания, SB-I/II | 11 620 ₽ |
|
| 99-4124 | SUPPORT - vibrasorber | 1 | ||
| 99-4133 | CLAMP - tube | 1 | ||
| 55-145 | SCREW | 4 | ||
| 55-4118 | NUT | 4 | ||
| 8 | NSS | COMPRESSOR - X426 (see 72A10) | 1 | |
| NSS | COMPRESSOR - X426 (see 72A10) | 1 | ||
| 9 | 66-3665 | VALVE - throttling (see 9E12) | 1 | |
| 10 | 66-3780 | VALVE - service (suction, see 57F13) | 1 | |
| 11 | 66-3515 | TUBE - hot gas (3-way to flange) | 1 | |
| 55-3065 | CLAMP - hot gas line | 2 | ||
| 55-101 | SCREW - clamp | 1 | ||
| 55-291 | NUT | 1 | ||
| 12 | 99-6346 | SUPPORT - refrigeration lines | 1 | |
| 55-2963 | SCREW - support | 4 | ||
| 13 | 66-1412 | FLANGE | 2 | |
| 33-727 | O-RING | 2 | ||
| 14 | 66-1386 | FLANGE | 1 | |
| 33-728 | O-RING | 1 | ||
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 15 | 67-325 | COIL - condenser | 1 | |
| 16 | 66-3516 | TUBE - receiver to hot gas line | 1 | |
| 66-1592 | VALVE - check | 1 | ||
| 17 | 67-257 | TANK - receiver (see 20G5) | 1 | |
| 55-289 | NUT - tank | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 99-6374 | BRACKET - tank | 1 | ||
| 55-145 | SCREW - bracket | 2 | ||
| 55-491 | LOCKWASHER | 2 | ||
| 55-3085 | NUT - captive | 2 | ||
| 55-1468 | ELBOW | 1 | ||
| 18 | 55-2985 | ELBOW | 1 | |
| 19 | 66-3644 | VALVE - check (see 9G12) | 1 | |
| 20 | 66-3517 | TUBE - check valve to receiver | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 66-3518 | TUBE - receiver to dehydrator | 1 | |
| 22 | 66-1409 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 99-6088 | SUPPORT - dehydrator | 1 | ||
| 55-145 | SCREW - support | 4 | ||
| 55-4118 | NUT | 4 | ||
| 55-4703 | BOLT - eye (dehydrator) | 4 | ||
| 55-4118 | NUT | 1 | ||
| 23 | 66-3519 | TUBE - dehydrator to flange | 1 | |
| 24 | 66-3521 | TUBE - 3-way to condenser | 1 | |
| 25 | 66-4300 | VALVE - 3-way (see 67B3) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 26 | 55-308 | ELBOW | 3 | |
| 27 | 66-3520 | TUBE - solenoid to suction line | 1 | |
| 28 | 66-4311 | TUBE - 3-way to solenoid | 1 | |
| 29 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - solenoid | 1 | ||
| 55-1384 | SCREW - solenoid | 2 | ||
| 55-715 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 30 | 66-1592 | VALVE - check | 1 | |
| 31 | 66-4310 | TUBE - bypass | 1 | |
| 32 | 66-4309 | TUBE - bypass | 1 | |
| 33 | 66-4102 | VALVE - bypass | 1 | |
| 34 | 66-4339 | TUBE - valve to tube | 1 | |
| 35 | 66-992 | VALVE - shutoff | 1 | |
| 36 | 66-4344 | TUBE - tee to valve | 1 | |
| 37 | 66-4346 | TEE | 1 | |
| 38 | 66-4343 | TUBE - 3-way to tee | 1 | |
| 39 | 66-4340 | TUBE - tee to coupling | 1 | |
| 40 | 66-4342 | TUBE - coupling to solenoid | 1 | |
| 66-4341 | COUPLING - reducing | 1 | ||
| 55-373 | NUT - flare | 1 | ||
| 41 | 66-2859 | VALVE - solenoid (see 116G10) | 1 | |
| 55-1049 | SCREW - bracket | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 42 | 99-8280 | BRACKET - solenoid | 1 | |
| 55-1339 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 43 | 66-4337 | TUBE - solenoid to elbow | 1 | |
| 55-503 | NUT - flare | 1 | ||
| 44 | 66-4338 | ELBOW | 1 | |
| 45 | 66-4336 | TUBE - elbow to hot gas tube | 1 | |
| 55-303 | NUT - flare | 1 | ||
| 46 | 66-4345 | TUBE - hot gas (3-way valve to flange) | 1 |
