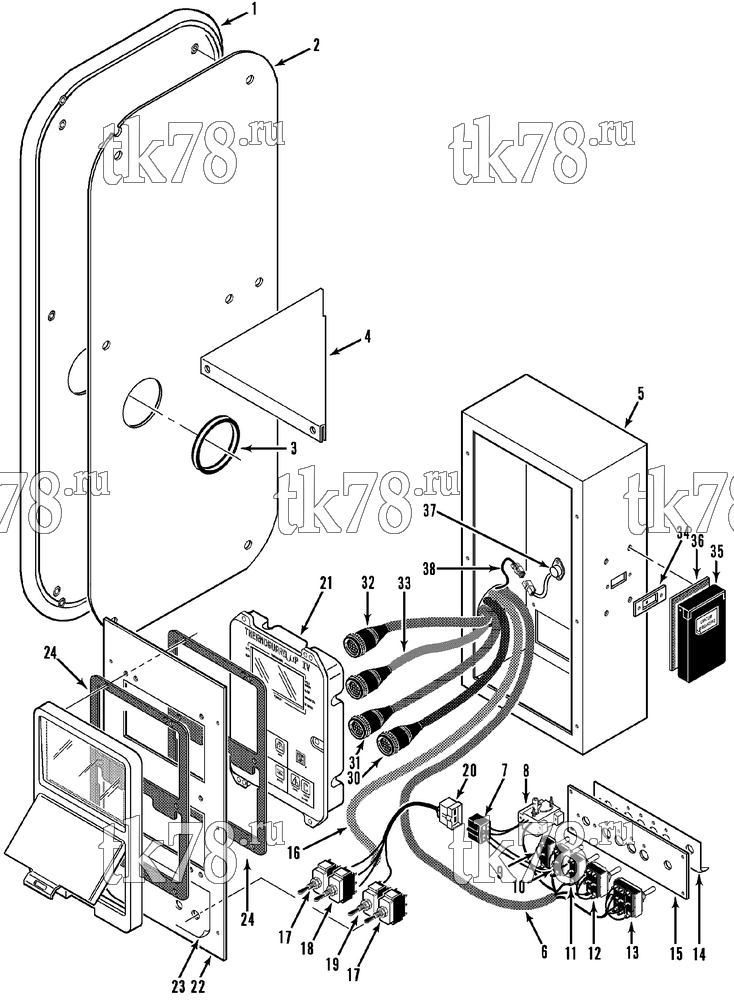

Установкa Thermo King RMN-II SR схема CONTROL BOX COVER (RMN-II) – 104E12
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4149 | COVER - control box | 1 | |
| 33-2384 | GASKET - cover | A/R | ||
| 2 | 98-4150 | PANEL - control box | 1 | |
| 55-2086 | FLATWASHER | 7 | ||
| 55-4953 | NUT | 7 | ||
| 3 | 99-1441 | EXTRUSION - rubber | A/R | |
| 4 | 91-3866 | SUPPORT - control box | 1 | |
| 5 | 98-4151 | BOX - control | 1 | |
| 98-4187 | BOX - control (w/ tracker & comm) | 1 | ||
| 55-1587 | SCREW - box/support | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 6 | 44-9527 | HARNESS - circuit | 1 | |
| 7 | 44-5814 | CONNECTOR (4-pin) | 1 | |
| 44-5630 | TERMINAL | 4 | ||
| 8 | 40-1082 | SWITCH - reset | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 33-1835 | SEAL | 1 | ||
| 55-1844 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 9 | 44-9410 | BREAKER - circuit (65 amp, 2 pole) | 1 | |
| 10 | 44-9234 | BREAKER - circuit (1.5 amp, 2 pole) | 1 | |
| 11 | 44-9233 | BREAKER - circuit (80 amp, 2 pole) | 1 | |
| 12 | 44-9235 | BREAKER - circuit (1.5 amp, 4 pole) | 1 | |
| 13 | 44-5169 | SWITCH (4pst) | 1 | |
| 14 | 91-3982 | NAMEPLATE | 1 | |
| 15 | 91-3867 | PLATE - circuit breaker | 1 | |
| 99-8429 | STRIP - gasket (plate) | A/R | ||
| 55-3027 | SCREW - plate | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 16 | 44-9529 | HARNESS - switch | 1 | |
| 17 | 44-7929 | SWITCH - on/off (Cycle Sentry) | 2 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
| 18 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 19 | 44-7793 | SWITCH - defrost | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 20 | 44-5827 | CONNECTOR (4-pin) | 1 | |
| 21 | 845-2418 | CONTROLLER - microprocessor | 1 | |
| 845-1601 | CONTROLLER - microprocessor (w/ communications pkg) | 1 | ||
| 845-2419 | CONTROLLER - microprocessor (remanufactured) | 1 | ||
| 55-4580 | SCREW - controller | 6 | ||
| 22 | 91-3868 | PANEL - box front | 1 | |
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 55-3027 | SCREW - panel | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-4526 | NUT - captive | 6 | ||
| 23 | 91-3369 | NAMEPLATE - switch | 1 | |
| 24 | 33-2894 | GASKET - bezel | 2 | |
| 25 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 26 | Not Used | |||
| 27 | Not Used | |||
| 28 | Not Used | |||
| 29 | 91-3368 | PIN - hinge | 1 | |
| 30 | 44-9532 | HARNESS - controller | 1 | |
| 41-745 | CONNECTOR - electric (37-pin) | 1 | ||
| 44-8540 | PIN - terminal | 29 | ||
| 40-632 | KIT - strain relief | 1 | ||
| 41-225 | STRAIN RELIEF - connector (19-pin) | 1 | ||
| 55-7618 | CLAMP | 1 | ||
| 31 | 44-9745 | HARNESS - sensor | 1 | |
| 41-744 | CONNECTOR - electric (19-pin) | 1 | ||
| 44-8540 | PIN - terminal | 19 | ||
| 40-632 | KIT - strain relief | 1 | ||
| 41-225 | STRAIN RELIEF - connector (19-pin) | 1 | ||
| 55-7618 | CLAMP | 1 | ||
| 32 | 44-9746 | HARNESS - signal | 1 | |
| 41-743 | CONNECTOR - electric (14-pin) | 1 | ||
| 44-8540 | PIN - terminal | 8 | ||
| 40-633 | KIT - strain relief | 1 | ||
| 41-224 | STRAIN RELIEF - connector (14-pin) | 1 | ||
| 55-7617 | CLAMP | 1 | ||
| 33 | 44-9783 | HARNESS - communications (optional) | 1 | |
| 44-9327 | CONNECTOR (15-pin) | 1 | ||
| 41-746 | CONNECTOR (9-pin) | 1 | ||
| 44-8779 | CLAMP | 1 | ||
| 55-3427 | SCREW - harness | 2 | ||
| 55-2359 | FLATWASHER | 2 | ||
| 55-2360 | LOCKWASHER | 2 | ||
| 55-2361 | NUT | 2 | ||
| 34 | 33-1373 | GASKET - harness | 1 | |
| 35 | 91-3983 | COVER - connector | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 55-5722 | SCREW - cover | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | LOCKNUT | 4 | ||
| 36 | 33-1373 | GASKET - cover | 1 | |
| 37 | 41-1445 | BUZZER - preheat | 1 | |
| 38 | 41-1446 | HARNESS - buzzer | 1 |
