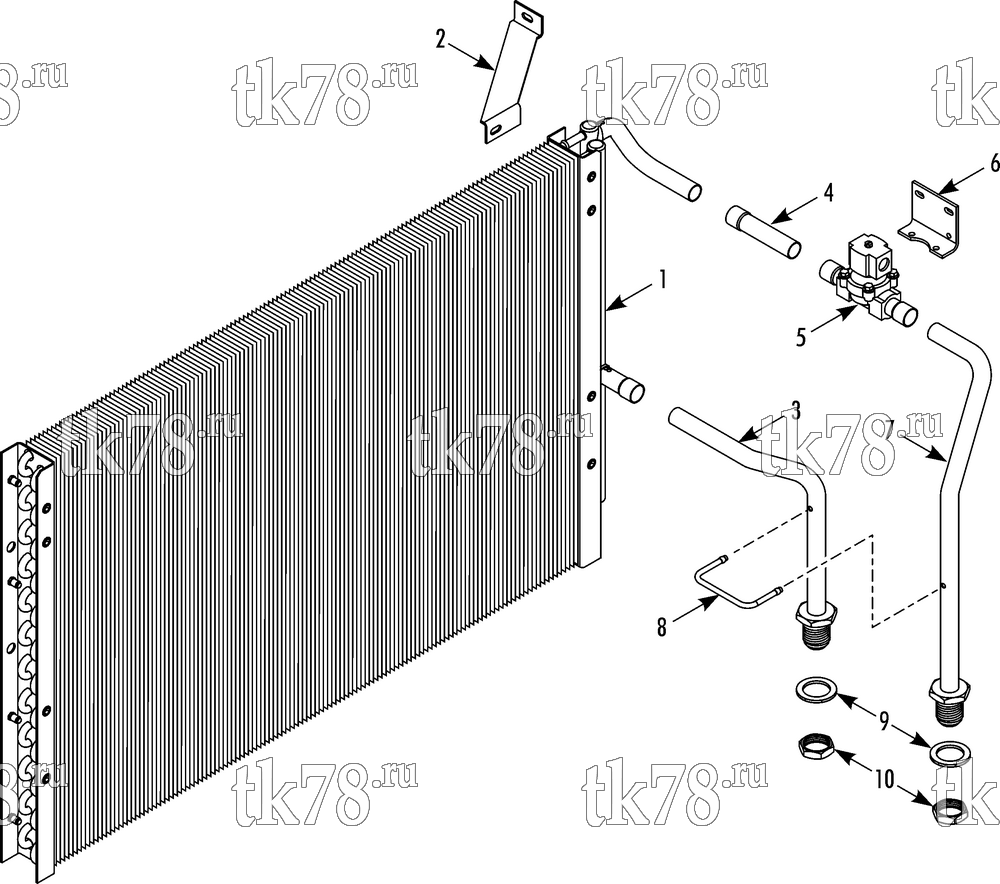

Установкa Thermo King RLFH1-M1 схема HEATER COMPONENTS – 249H4
Обновление от: 2/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2618 | COIL - heater | 1 | |
| 55-2957 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 2 | 92-8899 | BRACKET - coil | 1 | |
| 3 | 61-5520 | TUBE - coolant, inlet | 1 | |
| 51-1185 | ADAPTER - bulkhead (1-5/16-12) | 1 | ||
| 4 | 61-5521 | TUBE - coolant, outlet to valve | 1 | |
| 5 | 41-9427 | VALVE - solenoid (water) | 1 | |
| 44-7553 | COIL - valve | 1 | ||
| 55-2957 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 92-8398 | BRACKET - valve | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 7 | 61-5217 | TUBE - coolant, outlet | 1 | |
| 51-1185 | ADAPTER - bulkhead (1-5/16-12) | 1 | ||
| 8 | 61-5218 | TUBE - bypass | 1 | |
| 9 | 55-8785 | LOCKWASHER | 2 | |
| 10 | 55-7706 | NUT (1-5/16-12) | 2 |
