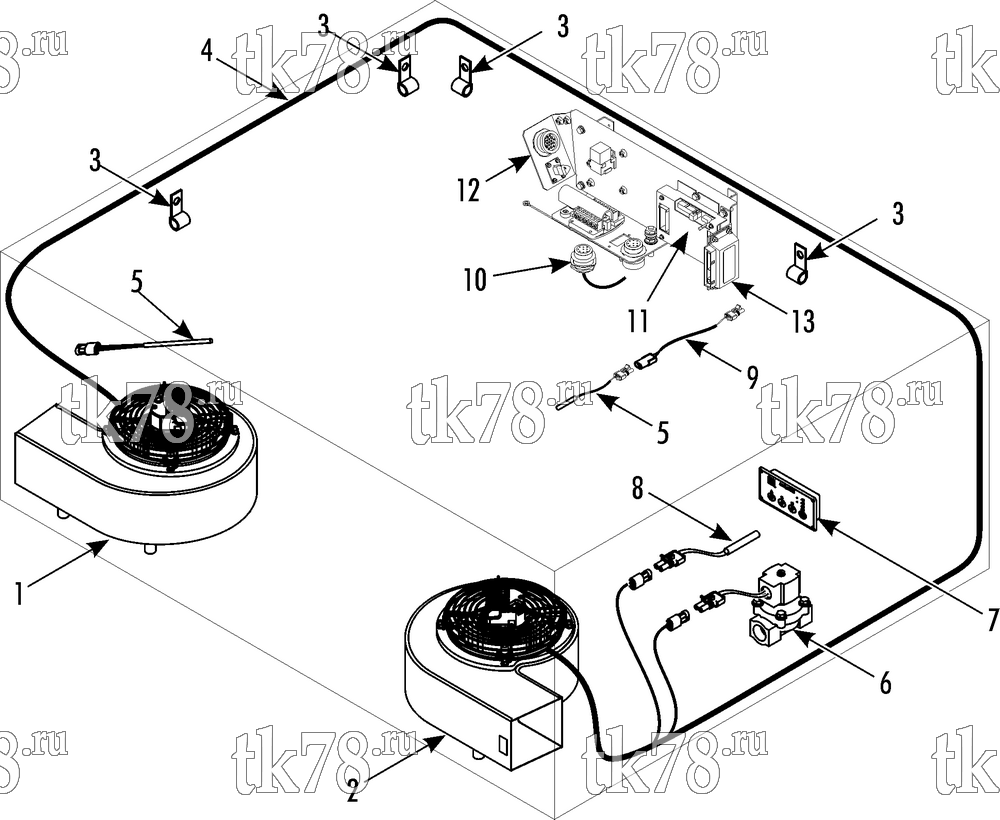

Установкa Thermo King RLFH1-M1 схема ELECTRICAL COMPONENTS – 249H3
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 2 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 3 | 51-176 | CLAMP (.250 dia) | 1 | |
| 55-9721 | CLAMP (.875 dia) | 3 | ||
| 4 | 41-9738 | HARNESS - main, IntelligAIRE III (see 249F6) | 1 | |
| 5 | 41-4157 | SENSOR - temperature (see 115D14 for connectors) | 5 | |
| 6 | 41-9427 | VALVE - solenoid, water (see heater components) | 1 | |
| 7 | 45-2339 | MODULE - display IntelligAIRE III (see 244B9) | 1 | |
| 8 | 41-4157 | SENSOR - water (see 115D14 for connectors) | 1 | |
| 9 | 41-9436 | HARNESS - return air sensor (see 115D14 for connectors) | 1 | |
| 10 | 41-9769 | HARNESS - diagnostic (see 249H5) | 1 | |
| 11 | 41-9353 | MODULE - main, IntelligAIRE III (see 249H5) | 1 | |
| 12 | NSS | PANEL - control assembly (see 249H5) | 1 | |
| 13 | 41-9354 | MODULE - floor heat IntelligAIRE III (optional) | 1 |
