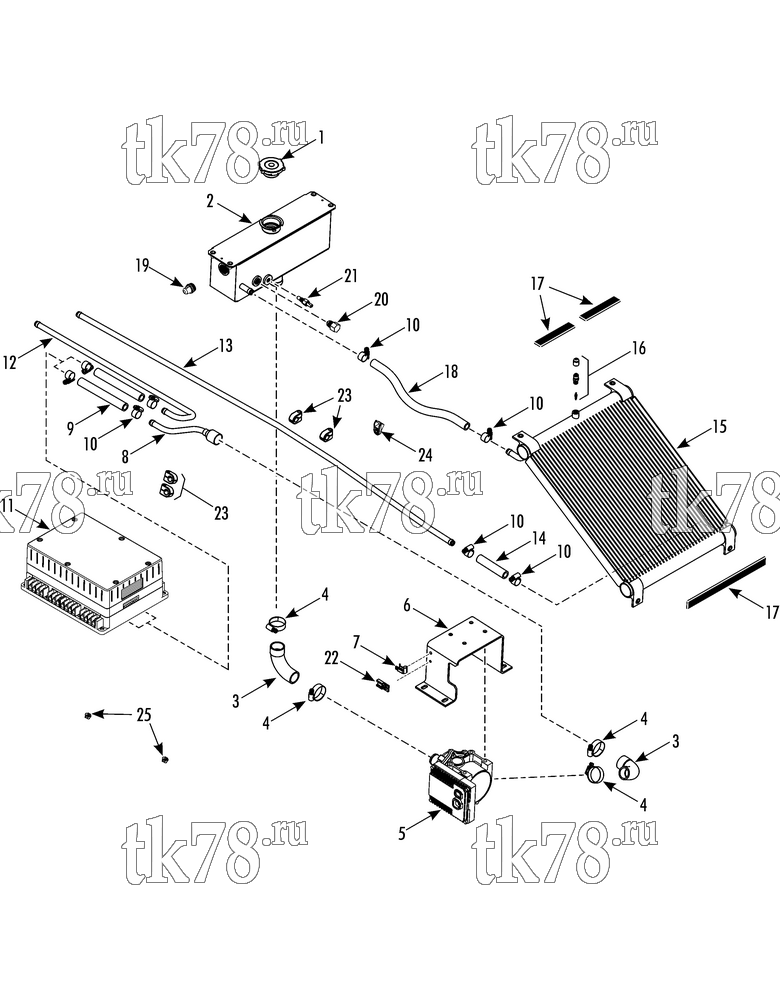

Установкa Thermo King RLFEA1-M1 схема INVERTER COOLING SYSTEM – 264G5
Обновление от: 2/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9242 | CAP - coolant tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 2 | 13-1340 | TANK - coolant | 1 | |
| 3 | 11-4177 | HOSE - elbow | 2 | |
| 4 | 55-3401 | CLAMP - hose | 4 | |
| 5 | 13-1235 | PUMP - coolant | 1 | |
| 6 | 93-661 | BRACKET - pump | 1 | |
| 7 | 55-9704 | CLIP - self locking | 2 | |
| 8 | 13-1341 | TUBE - coolant pump to inverter | 1 | |
| 9 | 13-1342 | HOSE - coolant | 2 | |
| 10 | 55-6726 | CLAMP - hose | 8 | |
| 11 | 45-2490 | INVERTER | 1 | |
| 12 | 13-1343 | TUBE - coolant, outlet | 1 | |
| 13 | 13-1344 | TUBE - coolant, inlet | 1 | |
| 14 | 13-1345 | HOSE - coolant | 1 | |
| 15 | 67-2812 | RADIATOR | 1 | |
| 16 | 11-2886 | VALVE - complete | 1 | |
| 55-7213 | BODY | 1 | ||
| 11-7777 | VALVE | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 17 | 33-5070 | INSULATION - radiator | 2 | |
| 18 | 13-1353 | HOSE - coolant | 1 | |
| 19 | 13-1116 | SIGHTGLASS | 1 | |
| 20 | 41-2842 | SENSOR - level, coolant | 1 | |
| 21 | 41-3345 | SENSOR - temperature, coolant | 1 | |
| 22 | 44-9906 | TAB - mount | 1 | |
| 55-3136 | RIVET | 1 | ||
| 23 | 91-759 | CLAMP - tube | 4 | |
| 55-4811 | SCREW - clamp | A/R | ||
| 55-3675 | SCREW - clamp | A/R | ||
| 55-2086 | FLATWASHER | A/R | ||
| 55-1800 | LOCKWASHER | A/R | ||
| 24 | 51-2038 | MOUNT - band wrap | 3 | |
| 51-2220 | BANDWRAP | 3 | ||
| 25 | 51-2182 | MOUNT - band wrap | 3 |
